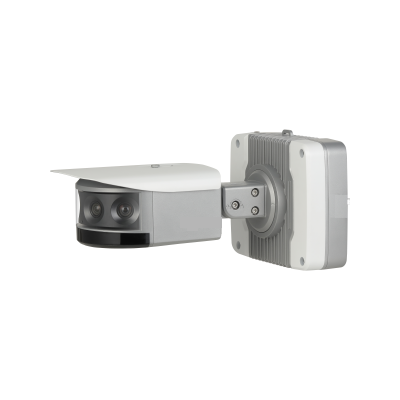

4x8MP Multi-Sensor Panoramic Bullet Network Camera
        • 4x8MP Multi-Sensor Panoramic Bullet Network Camera
        • 4x8MP Multi-Sensor Panoramic Bullet Network Camera

        4x8MP Multi-Sensor Panoramic Bullet Network Camera

        iMaxCamPro
        SKU: WECIPF83230-A180

        > Four 1/1.8” 8Megapixel progressive scan CMOS
        > H.265/H.264 triple-stream encoding
        > Max 25fps@8640x3840
        > Support 180-degree panoramic view

        > Day/Night(ICR), 3DNR, AWB, AGC, BLC

        > Micro SD memory, IP67, IK10

          • 50% less
          Market price:$10197.00 save $5098.50
        • $5098.50

        OR

        > Four 1/1.8” 8Megapixel progressive scan CMOS
        > H.265/H.264 triple-stream encoding
        > Max 25fps@8640x3840
        > Support 180-degree panoramic view

        > Day/Night(ICR), 3DNR, AWB, AGC, BLC

        >Micro SD memory, IP67, IK10

        System Overview

        The multi-sensor camera provides added flexibility for capturing wide area video surveillance. With four 8MP sensors working in tandem to create a comprehensive 180-degree overview, the camera can replace multiple single-sensor cameras providing a higher return on investment. The multi-sensor camera features contrast, backlight compensation, white balance, and resolution control to create a crystal-clear image even in the most challenging lighting conditions.

        Functions

        Starlight Technology

        For challenging low-light applications, Imaxcampro’s Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing color details in low light down to 0.009lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.

        HEVC(H.265)

        The H.265 (ITU-T VCEG) video compression standard offers double the data compression ratio at the same level of video quality, or substantially improved video quality at the same bit rate, as compared to older video compression technologies. H.265 offers such impressive compression by expanding the pattern comparison and difference-coding, improving motion vector prediction and motion region merging, and incorporating an additional filtering step called sample-adaptive offset filtering.

        Environmental & Protection

        With a temperature range of -40 °C to +60 °C (-40 °F to +140 °F), the camera is designed for extreme temperature environments. Supporting ±25% input voltage tolerance, this camera suits even the most unstable conditions for outdoor applications. Its 6KV lightning rating provides effective protection for both the camera and its structure against lightning. Subjected and certified to rigorous dust and immersion tests (IP67) and impact tests (IK10), The camera complies with an IK10 impact rating making it capable of withstanding the equivalent of 5 kg (11.02 lbs) of force dropped from a height of 40 cm (15.75 in.)



        Camera

        Image Sensor

        Four 1/1.8” 8Megapixel progressive scan CMOS

        Effective Pixels

        8640(H)x3840(V)

        RAM/ROM

        3072MB/384MB

        Scanning System

        Progressive

        Electronic Shutter Speed

        Auto/Manual, 1/3~1/100000s

        Minimum Illumination

        0.009Lux/F2.4( Color,1/3s,30IRE)

        0.05Lux/F2.4( Color,1/30s,30IRE)

        0.005Lux/F2.4( B/W,1/3s,30IRE)

        0.03Lux/F2.4( B/W,1/30s,30IRE)

        S/N Ratio

        More than 50dB

        IR Distance

        N/A

        IR On/Off Control

        N/A

        IR LEDs

        N/A

        Lens

        Lens Type

        Fixed

        Mount Type

        Board-in

        Focal Length

        4.5mm

        Max. Aperture

        F2.4

        Angle of View

        H: 180˚, V:80˚

        Optical Zoom

        N/A

        Focus Control

        Fixed

        Close Focus Distance

        N/A

        DORI Distance

        Lens

        Detect

        Observe

        Recognize

        Identify

        4.5mm

        90m(295ft)

        36m(118ft)

        18m(59ft)

        9m(30ft)

        Pan/Tilt/Rotation

        Pan/Tilt/Rotation Range

        Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~355˚

        Intelligence

        Event Trigger

        Network disconnection , IP address conflict, Illegal Access,Storage anomaly

        IVS

        N/A

        Advanced Intelligent Functions

        N/A

        Video

        Compression

        H.265/H.264/H.264B/H.264H/MJPEG(Sub Stream)

        Smart Codec

        N/A

        Streaming Capability

        3 Streams

        Resolution

        8640x3840/3840×1680/2880×1264/ 1920x832/1284x560/1032X452

        Frame Rate

        Main Stream: 8640x3840 (1~25fps)

        Sub Stream: 1032X452 (1 ~ 25fps)

        Third Stream: 1920x832 (1 ~ 25fps)

        Bit Rate Control

        CBR/VBR

        Bit Rate

        H.265: 3840Kbps~ 32768Kbps

        H.264: 10752Kbps~ 32768Kbps

        Day/Night

        Auto(ICR) / Color / B/W

        BLC Mode

        BLC / HLC / DWDR

        White Balance

        Auto/Natural/Street Lamp/Outdoor/Manual

        Gain Control

        Auto/Manual

        Noise Reduction

        3D DNR

        Motion Detection

        N/A

        Region of Interest

        Off / On (4 Zone)

        Electronic Image Stabilization(EIS)

        N/A

        Smart IR

        N/A

        Defog

        N/A

        Digital Zoom

        16x

        Flip

        N/A

        Mirror

        N/A

        Privacy Masking

        N/A

        Audio

        Compression

        G.711a/G.711Mu/AAC/ G.726

        Network

        Ethernet

        RJ-45 (100/1000Base-T)

        Protocol

        HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;

        FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;

        NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;SNMP;TLS

        Interoperability

        API

        Streaming Method

        Unicast / Multicast

        Max. User Access

        7 Users/20 Users

        Edge Storage

        NAS

        Local PC for instant recording

        Mirco SD card 128GB

        Web Viewer

        IE, Chrome, Firefox, Safari

        Management Software

        Smart PSS, DSS, DMSS

        Smart Phone

        N/A

        Certifications

        Certifications

        CE (EN 60950:2000)

        UL:UL60950-1

        FCC: FCC Part 15 Subpart B

        Interface

        Video Interface

        N/A

        Audio Interface

        2/1 channel In/Out

        RS485

        N/A

        Alarm

        2 channel In: 5mA 5VDC

        2 channel Out: 1A 30VDC / 0.5A 50VAC

        Electrical

        Power Supply

        DC36V

        Power Consumption

        <35W

        Environmental

        Operating Conditions

        -40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH

        Storage Conditions

        -40° C ~ +60° C (-40° F ~ +140° F) / Less than 95% RH

        Ingress Protection

        IP67

        Vandal Resistance

        IK10

        Construction

        Casing

        Metal

        Dimensions

        411mm×251.7mm×114.4mm

        (16.18” ×9.91” ×4.5”)

        Net Weight

        6.9kg(15.2lb)

        Gross Weight

        10kg(22lb)

        Data Sheet



        User Manual



        User ManualDrawings



        Drawings

          • SKU
            WECIPF83230-A180
          • Weight
            22 lbs
        • Manufacturer
          iMaxCamPro
        • Shipping Lead Time
          Ships Same Day
