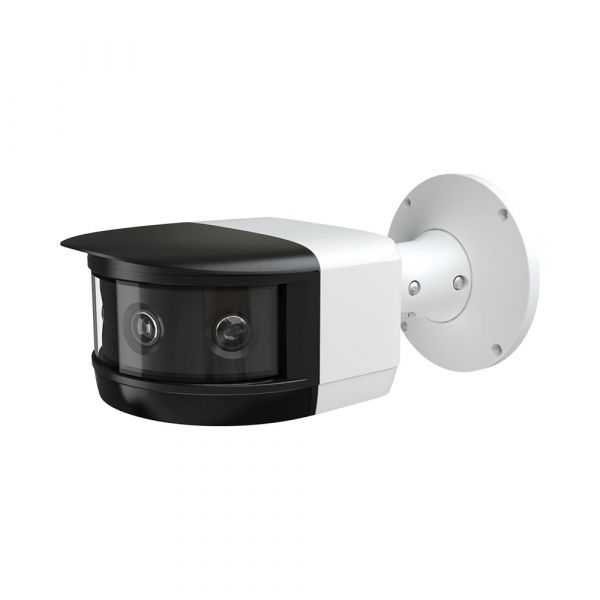

CLEAR IP-5PO8M3 | 8MP 1/2.8" Starlight 180° Panoramic Bullet Network Camera
Features
- Adopt 4 high-performance 2MP 1/2.8" CMOS image sensors; Max. resolution: 8MP ( 4096 × 1800)
- Starlight, HLC, Defog
- 180° panoramic view brings out more clear details and deeper depth of field compared with the traditional fisheye camera
- Support panoramic splicing images; multi-screen display mode will provide excellent hands-on experience for clients
- Support H.265 coding, high compression ratio, and low bitrate
- Support ROI
- Support smart IR function so that overexposure will not appear in most scenes; Up to 20m night view distance
- Built-in micro SD card slot, up to 128GB
- IP 67 protection grade
- DC12V/PoE power supply
- Intelligent Analytics (optional): object removal detection, abnormal video signal detection, line crossing detection, region intrusion detection and people intrusion detection
| Image Sensor | Four 1 / 2.8 " Progressive Scan CMOS |
|---|---|
| Image Size | 4096 × 1800 |
| Electronic Shutter | 1 s ~ 1 / 10000 s; auto/manual |
| Minimum Illumination | Color: 0.03Lux |
| Focal Length | 3.3mm |
| Angle Adjustment | Pan: ≥180°; Tilt: 80° |
| IR Distance | 20m |
| S/N Ratio | >50dB |
| Video Compression | H.265 / H.264 / MJPEG |
| Video Resolution | 4096 × 1800, 3480× 1680 , 2880 × 1264, 1024 × 452, 704 × 320 |
| Video Bitrate | 128 Kbps ~ 16 Mbps |
| Day / Night | IR-CUT |
| BLC Mode | Yes |
| HLC | Yes |
| White Balance | Manual/auto/indoor/outdoor |
| ROI | Each ROI to be configured separately |
| Image Settings | ROI, Saturation, Brightness, Chroma, Contrast, NR, etc. adjustable through client software or web browser |
| Gain Control | Manual/auto |
| Digital Noise Reduction | 2D/3D DNR |
| Defog | Yes |
| Audio Compression | G.711A/U |
| Audio In | 1CH audio input |
| Audio Out | 1CH audio output |
| Alarm In | 1CH alarm input |
| Alarm Out | 1CH alarm output |
| Basic Event | Motion detection, video tempering detection, SD card error, IP conflict, cable disconnection |
| Smart Event Detection | Object removal detection, regional intrusion detection, abnormal video detection, line crossing detection, people intrusion, people counting (optional) |
| Alarm Linkage | SD card record, triggering record, notifying control center, uploading SD card, sending E-mail |
| Ethernet | 1 RJ 45 10M/100M Ethernet port, PoE (802.3af) |
| Network Protocol | HTTP, HTTPs, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, PPPoE, DHCP |
| Storage | Network remote storage; micro SD card storage |
| Storage Card | Built-in micro SD card slot, up to 128GB |
| General Function | Watermark, IP address filtering, video mask, heartbeat, illegal login lock |
| Network Max. Users | Up to 10 accounts; 3 levels: administrator, advanced user, normal user |
| Mobile | iPhone, Android |
| RS485 | 1 CH; Pelco-D/P protocol, custom protocols available |
| Power Supply | DC12V/PoE(802.3af) |
| Power Consumption | < 9.5W |
| Operating Temperature | Temperature: -30 C~60 C Humidity: <95% (non-condensing) |
| Ingress Protection | IP 67, IK 10, TVS6000V lightning protection, surge protection and voltage transient protection |
| Dimensions | 288.4 × 137.7 × 159.7mm |
| Weight | Approx. 2.1KG (net); Approx. 3.61KG (gross) |
