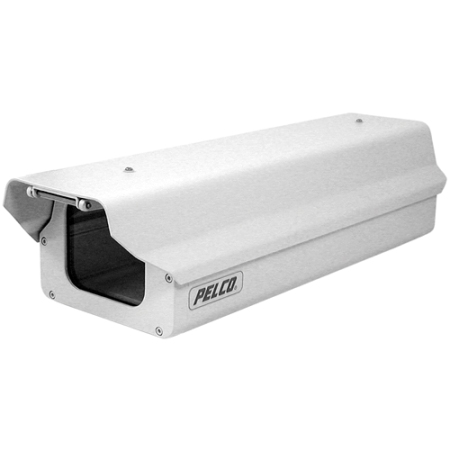

Pelco EH4718 18" Medium Outdoor Enclosure
Features :
- Die-cast and extruded aluminum construction
- Designed for indoor/outdoor applications
- Full complement of factory and field-installed accessories
- Forward-opening lid
- Gas-spring assisted forward-opening lid
- Cable entry glands and mounting holes located on bottom of enclosure
- Special options include 120VAC outlet and preset lens wiring harness
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
Pelco EH4718 18" Medium Outdoor Enclosure
The Pelco EH4718 Enclosure can be used with larger sized cameras featuring either fixed length focal lenses or motorized zoom lenses. This indoor/outdoor enclosure is constructed using die-cast and extruded aluminum that make it sustainable and recyclable.
This Environmental Enclosure features a forward-opening lid which provides maximum accessibility during installation or servicing. Additionally, this enclosure equips a unique gas spring which protects the lid when fully opened.
Features :
- Die-cast and extruded aluminum construction
- Designed for indoor/outdoor applications
- Full complement of factory and field-installed accessories
- Forward-opening lid
- Gas-spring assisted forward-opening lid
- Cable entry glands and mounting holes located on bottom of enclosure
- Special options include 120VAC outlet and preset lens wiring harness
Specifications :
| Mount Type | Pedestal: EM1009U / EM1015U / MM22 / PM2000 / PM2010 (requires AH1000) Wall: EM1900U / EM22 / WM2000 (requires AH1000) Pipe/Pole: EM1109 / EM2000 / EM2200 Adapter: AH1000 Pan/Tilt: PT570 Series |
| Compatible Cameras | Fixed CCTV camera |
| Maximum Camera/Lens Size | WxHxD: 5.5 x 4.3 x 17" (14 x 10.8 x 43.2cm) |
| Clear or Tinted | Clear |
| Construction | Construction: Die-cast, extruded, and sheet aluminum Finish: Gray polyester powder coat Viewing Window: 0.25" (6.35 mm) thick Lexan Cable Entry: Two PG13.5 compression glands on bottom; 0.47" (1.19 cm) maximum cable diameter Cable Entry Holes: 0.875" (2.22 cm) diameter; will accept 0.5" (1.27 cm) conduit fitting when compression gland is removed Camera Mounting: Removable camera sled; can be inverted Rear Latch: Link-lock, No. 3, stainless steel; can be secured with padlock (not supplied) |
| Enclosure Rating | Meets NEMA Type 3R standards |
| Operating Temperature | -10 ~ 120°F (-23 ~ +49°C) |
| Dimensions (WxHxD) | 6.9 x 5 x 21.2" (17.5 x 12.7 x 53.8cm) |
| Weight | 7.3 lbs (3.3kg) |
