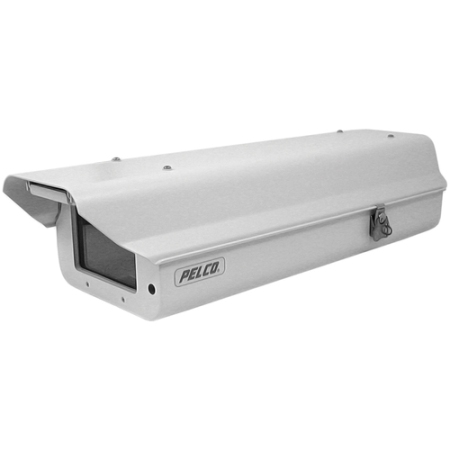

Pelco EH5723 23" Outdoor Large Enclosure
Features :
- Suitable for large format cameras
- Can be used indoors and outdoors
- Compatible with fixed mount applications
- Can be mounted to medium duty pan/tilt PT570 series and heavy duty pan/tilt PT1250 series
- Thick aluminum construction and polyester powder coat finish
- Link-lock latch for additional security
- Assisted gas-spring holds the lid securely open
- Adjustable camera sled with built-in elevation block
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
Pelco EH5723 23" Outdoor Large Enclosure
The Pelco EH5723 Enclosure is used with large format cameras with either fixed focal length or motorized zoom lenses. The enclosure is compatible with fixed mount applications. It can be mounted to medium duty pan/tilt PT570 series and heavy duty pan/tilt PT1250 series. The maximum camera and lens combination size (with the lens fully extended) for the enclosure is 7.5 x 5.5 x 22" (WxHxD).
Suitable for indoor/outdoor applications, the EH5700 Enclosure has a thick aluminum construction that makes it resistant to corrosion. The polyester powder coat provides a smooth surface and prevents color fading in sunlight.
The basic enclosure can be opened from the rear by releasing the link-lock latch. This latch can be secured with a padlock to protect the camera from unauthorized use and harm.
The environmental enclosure features a removable, forward-opening lid that provides easy accessibility while installing and maintaining. When opened fully, the raised lid is held in place by a gas-spring. Two UL-approved glands at the base make for convenient cable entry. The camera mounting platform with a built-in elevation block is removable and can be inverted to accept various camera and lens combinations.
Features :
- Suitable for large format cameras
- Can be used indoors and outdoors
- Compatible with fixed mount applications
- Can be mounted to medium duty pan/tilt PT570 series and heavy duty pan/tilt PT1250 series
- Thick aluminum construction and polyester powder coat finish
- Link-lock latch for additional security
- Assisted gas-spring holds the lid securely open
- Adjustable camera sled with built-in elevation block
Specifications :
| Indoor/Outdoor | Outdoor |
| Mount Type | Pedestal: MM22 / PM2000 / PM2010 (Use with AH2000 adjustable head) Wall: EM22 / WM2000 (Use with AH2000 adjustable head) Pan/Tilt: PT570 Series / PT1250 Series |
| Compatible Cameras | CCTV camera |
| Clear or Tinted | Clear |
| Maximum Camera/Lens Size | 7.5 x 5.5 x 22" (19.1 x 14 x 55.9cm) |
| Construction | Camera Mounting: Removable camera sled; can be inverted Cable Entry: Two PG13.5 UL glands on bottom of enclosure; 0.47-inch (1.19 cm) maximum cable diameter Cable Entry Holes: 0.875-inch (2.22 cm) diameter; will accept 0.5-inch (1.27 cm) conduit fitting when compression gland is removed Latches: Link-lock No. 3, stainless steel; can be secured with padlocks (not supplied) EH5723 Series (2), EH5729 Series (4) Construction Aluminum, 0.080-inch (0.20 cm) thick Finish: Gray polyester powder coat Viewing Window: Glass, 0.25-inch (6.35 mm) thick |
| Operating Temperature | -10 ~ 120°F (-23 ~ +49°°C) |
| Dimensions (WxHxD) | 8.6 x 6.2 x 23" (21.8 x 15.7 x 58.4cm) |
| Weight | 11 lbs (5kg) |
