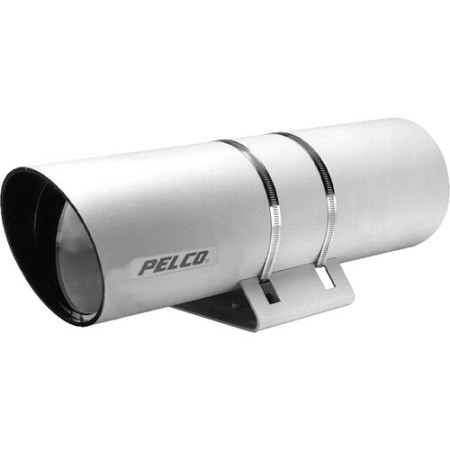

Pelco EH8106-3 230V Pressurised CCTV Camera Enclosure + Shroud commercial
The Pelco EH8106-3 Enclosure for Legacy is IP67-rated and accepts cameras having either fixed focal length or motorized lenses. The enclosure is compatible with a medium duty pan/tilt mount such as PT870 Series. The enclosure protects the camera and lens against harsh environmental conditions. The sealed enclosure is suitable for indoor and outdoor applications and can be used with fixed or pan/tilt mounts.
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
Pelco EH8106-3 230V Pressurised CCTV Camera Enclosure + Shroud commercial
The Pelco EH8106-3 Enclosure for Legacy is IP67-rated and accepts cameras having either fixed focal length or motorized lenses. The enclosure is compatible with a medium duty pan/tilt mount such as PT870 Series. The enclosure protects the camera and lens against harsh environmental conditions. The sealed enclosure is suitable for indoor and outdoor applications and can be used with fixed or pan/tilt mounts.
The enclosure is pressurized with dry nitrogen, preventing contaminants and impurities from entering the enclosure and potentially causing damage to camera and lens components. The pressure relief valve is used for regulating the dry nitrogen gas and prevents overcharging. The 6" enclosure features a thermostatic-controlled heater for regulating the inner temperature.
While the power, video, and lens control cables are routed via the MS-type connector on the rear, the T-Handle feature allows you to remove the rear plate from housing. It enables you to easily handle and access camera and lens. With camera mounting sled and track assembly, the camera and lens can be quickly adjusted to accommodate various cameras.
- Legacy compatible
- Compatible with PT780 series medium duty pan/tilt
- Can be used in adverse environments
- Pressurized dry nitrogen prevents impurities and camera/lens components contamination
- Pressure relief valve prevents overcharging
- Thermostatic controlled heater
- MS-type connector
- T-handle for handling the camera and lens easily
- Adjustable camera mounting sled and track assembly
- Compatible Cameras : CCTV camera
- Maximum Camera/Lens Size : 4 x 4 x 18" (10.2 x 10.2 x 45.7cm)
- Clear or Tinted : Clear
- Construction :
- Body: Aluminum with gray polyester powder coat
- Front Window: Tempered glass; 0.225-inch (5.71 mm) thick
- Camera Mounting: Multiple mounting holes on camera sled
- Enclosure Mounting: RediLINK 26-pin connector mates enclosure to pan/tilt
- Purge Fitting: Standard Schraeder valve to allow enclosure to be filled with dry nitrogen
- Purge Relief Fitting: Prevents over pressurization of enclosure
- Heater/Blower : Heaters are thermostatically controlled to activate on at 40°F (4°C) and off at 60°F (15°C)
- Enclosure Rating : Meets NEMA Type 6 and IP67 standards
- Operating Temperature : -40 ~ 122°F (-40 ~ +50°C)
- Power Requirements : 120VAC
- Power Consumption : 80W
- Diameter and Length : 6.5 x 22" (16.5 x 55.9cm)
- Weight : 17.2 lbs (7.8kg)
product sheet.pdf311 kB
