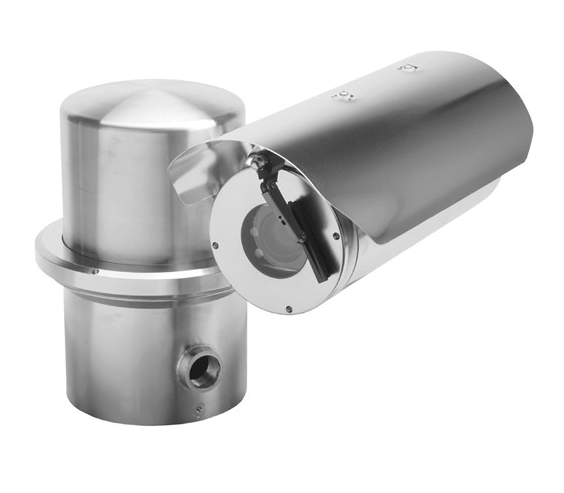

Pelco EHXM31 Fixed Mount Enclosure with Camera - Power Supply

Pelco
SKU: EHXM31-CAM

The system is an integrated camera-and-lens package that features LowLight technology. This day-and-night model features a 36x lens, built-in motion detection, and a 128x wide dynamic range imager. The electropolished 316L stainless-steel construction makes the camera suitable for both indoor and outdoor applications. This camera system has an absolute operating temperature range of -76 to 140°F (-60 to 60°C). Within 2 hours after power-up, the entire unit can de-ice and be operational from a temperature of -13°F (-25°C). The system comes with an input voltage of 100 to 240 VAC.

The system comes with a window wiper which is completely integrated into the enclosure and does not interfere with the viewing range of the system. The included wiper can be configured to delay between wipes and to automatically shut off after a specified period. The wiper design also allows for easy replacement of the wiper blade. A built-in heater, a window defroster/defogger, a sun shroud, and a blower are the standard features of the camera. It also includes 3 auxiliary output relays that can be configured for a variety of uses, including 3rd party washer systems.

Electropolished 316L stainless-steel construction
Manual 200° pan and 180° tilt adjustments
Receiver and enclosure with IOP (Integrated Optics Package)
For use in a variety of harsh and/or hazardous settings, including marine environments
2 autofocus high-resolution integrated camera/optics packages
36x day and night, 128x wide dynamic range, motion detection, and 540 TVL horizontal resolution
Multilingual on-screen menus
Alternate language files (includes Russian, Polish, Turkish) available as optional software upload (sold separately)
Password protection
Autofocus with manual override
Configurable camera settings
Auto iris with manual override
Integral multi-protocol receiver/driver
Meets NEMA type 4x and IP66 standards
Designed for minimal maintenance
On-board connector for Pelco VC-UTP video connector, Pelco TXB Series Translator Boards for use with Hernis and other protocols, Pelco FS85011A, and 3rd party fiber-optic transmitters
AC line lock
Quick and easy installation


POWER SUPPLY

IPSXM-2 Power Mod & PA30-0091

  • $15000.00

In stock(99 items available)
OR

Pelco EHXM3136-7XSpecs

Signal Format
NTSC
Scanning System
2:1 interlace
Image Sensor
1/4" progressive scan CCD
Effective Pixels (H x V)
752 x 582
Horizontal Resolution
540 TVL
F-Number (f)
f/1.4
Focal Length
3.3 to 119 mm optical
Zoom
36x optical, 12x digital
Zoom Speed
2.9/4.2/5.8 seconds
Horizontal Angle of View
57.2° at 3.3 mm wide zoom
1.7° at 119 mm telephoto zoom
Focus
Automatic with manual override
Sensitivity
Maximum: @ 35 IRE: 0.015 lux at 1/1.5 second shutter (color)
0.45 lux at 1/50 second shutter (B&W)
0.00015 lux at 1/1.5 second shutter (B&W)
Sync System
Internal/AC line lock, phase adjustable using remote control, and V-Sync
White Balance
Automatic with manual override
Shutter Speed
Automatic (electronic iris)/Manual 1/1.5 to 1/30,000
Iris Control
Automatic iris control with manual override
Gain Control
Automatic/Off
Video Output
1 V pp, 75 Ω
Video S/N Ratio
>50 dB
Electrical
Input Voltage
100 to 240 VAC, 50/60 Hz
Input Voltage Range
± 10%
Power Consumption
Maximum 60 W (120 VA)
Heater/Defroster
Microprocessor controlled
Connections
Electrical: 6.0' (1.8 m) pigtail wire harness with connections for power, video, alarm inputs, and auxiliary outputs
Mechanical
Cable Entry
One 0.75" (1.91 cm) NPT threaded opening; explosion-proof sealable fitting
Certifications
FCC
UL/cUL Listed
UL/cUL Hazardous Locations Listed per NEC Division and Zone requirement
Class I, Groups A, B, C, and D
Class II, Groups E, F, G, T5
Class I, Zone 1, AEx d IIC
AEx tD 21 T105°C
BR-Ex d IIC, T5, IP66 04/UL-BRAE-0027
IECEx UL 11.0007X
Ex d IIC T5 Gb
Ex tb IIIC T105°C Db IP66
DEMKO 04 ATEX 0413858X
CE 0539 II 2 G Ex d IIC, T5 Gb II 2 D Ex tb IIIC T105°C Db IP66
Tamb: -60 to 60°C
NEPSI-China, Ex d IIC, T5, Cert No. GYJ05584
C-Tick
S Mark for Argentina
Meets NEMA Type 4X standards
Lloyd's Register Type Approval: Marine, offshore, and industrial installations for use in environmental categories ENV1, ENV2, and ENV5; Certificate No. 06/6000
General
Construction
316L stainless steel
Finish
Electropolish
Viewing Window
0.50" (12.7 mm) thick, soda-lime tempered glass
Operating Temperature
-76 to 140°F (-60 to 60°C)
Effective Projected Area (EPA)
31.1" square
Dimensions
13.00 x 10.50 x 11.50" (33.27 x 26.80 x 29.20 cm)
Weight
34.70 lb (11.33 kg)
    • SKU
      EHXM31-CAM
    • Weight
      60 lbs
  • Manufacturer
    Pelco
