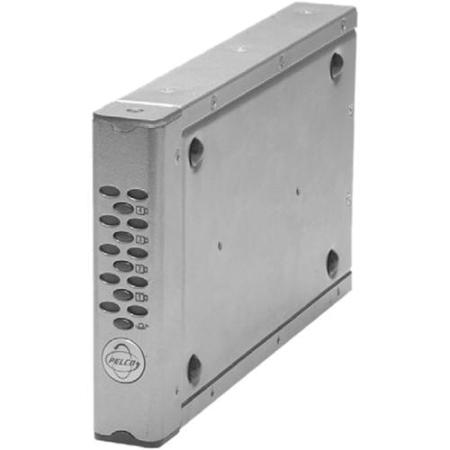

Pelco FT8301AMSTRE 1-Channel Video Extended Distance Multimode Fiber RX Transmitter (ST Connector)
Fiber optics can be seen as the gold standard in cable transmission. Compared to metal-based cables (e.g. RCA, BNC, UTP), fiber optic wiring links are far less susceptible to signal attenuation and are also immune to electromagnetic interference. The result is that fiber can be strung over much greater distances before needing amplification. Just as important is the higher bandwidths supported by fiber optic - up to 111 Gbps per light channel, though 10 or 40 Gbps is more often the norm. Finally, it is virtually impossible to illicitly tap into a fiber cable the way that can be done with copper-based cables. The Pelco FT8301AMSTRE highlights all of these attributes in an industrial grade yet uncomplicated device. As such, it is the tool of choice for demanding security applications needing the ability to send large amounts of data, over long distances, and in a secure manner.
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
Pelco FT8301AMSTRE 1-Channel Video Extended Distance Multimode Fiber RX Transmitter (ST Connector)
Fiber optics can be seen as the gold standard in cable transmission. Compared to metal-based cables (e.g. RCA, BNC, UTP), fiber optic wiring links are far less susceptible to signal attenuation and are also immune to electromagnetic interference. The result is that fiber can be strung over much greater distances before needing amplification. Just as important is the higher bandwidths supported by fiber optic - up to 111 Gbps per light channel, though 10 or 40 Gbps is more often the norm. Finally, it is virtually impossible to illicitly tap into a fiber cable the way that can be done with copper-based cables. The Pelco FT8301AMSTRE highlights all of these attributes in an industrial grade yet uncomplicated device. As such, it is the tool of choice for demanding security applications needing the ability to send large amounts of data, over long distances, and in a secure manner.
8-Bit Digitally Encoded Video
Thanks to an 8-bit digital encoding process, this unit is able to maintain superb video quality with the level of sharpness and color depth expected in demanding security environments.
Meets NEMA TS 2 and Caltrans Traffic Signal Control Standards
This unit is designed to meet NEMA TS 2 and Caltrans traffic signal control equipment standards for ambient operating temperature, mechanical shock and vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection (certification pending).
Conforms to RS-250C Standards
This unit exceeds all requirements for the RS-250C medium-haul transmission specifications.
No Adjustments Required
With no dials or switches to adjust this unit offers very straightforward operation. Simply plug in the power and signal cables and this unit will automatically configure itself for maximum performance. Built into the unit are LED lights indicating signal status, laser status and operating power.
Optional Multiple Rack Box Available
To save desktop space and for better power management, you can install this unit in an RK5000 series rack chassis. You can get the RK5000PS-3U 19" rack chassis, which holds 12 fiber modules and also has a built-in power supply that provides electricity to all modules. Or you can get the RK5000PS-3U rack chassis, which has room for 14 fiber modules but does not come with a built-in power supply.
Specifications :
Fiber optics can be seen as the gold standard in cable transmission. Compared to metal-based cables (e.g. RCA, BNC, UTP), fiber optic wiring links are far less susceptible to signal attenuation and are also immune to electromagnetic interference. The result is that fiber can be strung over much greater distances before needing amplification. Just as important is the higher bandwidths supported by fiber optic - up to 111 Gbps per light channel, though 10 or 40 Gbps is more often the norm. Finally, it is virtually impossible to illicitly tap into a fiber cable the way that can be done with copper-based cables. The Pelco FT8301AMSTRE highlights all of these attributes in an industrial grade yet uncomplicated device. As such, it is the tool of choice for demanding security applications needing the ability to send large amounts of data, over long distances, and in a secure manner.
8-Bit Digitally Encoded Video
Thanks to an 8-bit digital encoding process, this unit is able to maintain superb video quality with the level of sharpness and color depth expected in demanding security environments.
Meets NEMA TS 2 and Caltrans Traffic Signal Control Standards
This unit is designed to meet NEMA TS 2 and Caltrans traffic signal control equipment standards for ambient operating temperature, mechanical shock and vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection (certification pending).
Conforms to RS-250C Standards
This unit exceeds all requirements for the RS-250C medium-haul transmission specifications.
No Adjustments Required
With no dials or switches to adjust this unit offers very straightforward operation. Simply plug in the power and signal cables and this unit will automatically configure itself for maximum performance. Built into the unit are LED lights indicating signal status, laser status and operating power.
Optional Multiple Rack Box Available
To save desktop space and for better power management, you can install this unit in an RK5000 series rack chassis. You can get the RK5000PS-3U 19" rack chassis, which holds 12 fiber modules and also has a built-in power supply that provides electricity to all modules. Or you can get the RK5000PS-3U rack chassis, which has room for 14 fiber modules but does not come with a built-in power supply.
Specifications :
| Signal System | NTSC/PAL/SECAM |
| Channels | 1 |
| Modulation | Pulse code modulation, 8-bit resolution |
| Compatible Receiver | FR8301AMSTRE, FR8302AMSTRE-2, FR8301MSTRE |
| Wavelength | 1310 nm |
| Optical Power Budget | 26dB |
| Maximum Transmission Distance | 3.7 Mile (6km) Range |
| Video Connector |
BNC x1 UTP x1 (2-pin connector, spring cage terminal) |
| Fiber Connector | ST Connector x1 |
| Power Requirements | 12VDC or 24VAC (includes 12VDC adapter) |
| Power Consumption | 170mA |
| Power Connector |
Standalone Power: 2-pin connector Rack Power: 4-pin connector |
| Operating Temperature | -40 ~ 167°F (-40 ~ +75°C) |
| Dimensions (WxHxD) | 1.1 x 4.8 x 8.8" (27 x 122 x 222mm) |
| Weight | 1.5 lbs (0.7kg) |
