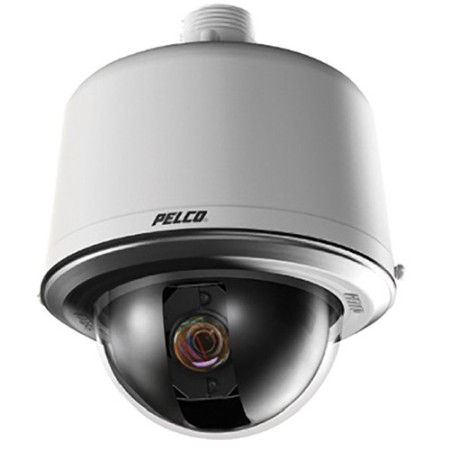

Pelco S5220-EG0 Spectra HD IP High-Speed Dome Camera System (Gray, NTSC)

Pelco
SKU: S5220-EG0

The gray S5220-EG1 Spectra HD IP High-Speed Dome Camera System from Pelco features ease of installation and maintenance. This dome system includes D5220P Dome Drive with integrated 2.0 Mp, 20x Day/Night Camera, B52-PG-E Environmental Pendant Back Box, and LDHQPB-1 High-Quality Pendant Lower Dome with Clear Bubble. This camera meets the NEMA Type 4X, IP66 standard when properly installed. The Spectra HD IP dome camera system delivers crystal clear live streaming images over the Internet using a standard Web browser (Microsoft Internet Explorer or Mozilla Firefox). This system is suitable to view details such as faces, license plates, tattoos, playing cards (in casinos), or other specific features.

    • 44% less
    Market price:$6501.78 save $2836.78
  • $3665.00

OR

Information

  • SPECTRA HD 1080P 20X ZOOM OUTD
  • Spectra Hd 1080P 20X Zoom Outdr Pend. Smoked Bubbl
  • IP Fixed Domes Cameras
    IP Cameras
  • 700880321522

Overview

The gray S5220-EG1 Spectra HD IP High-Speed Dome Camera System from Pelco features ease of installation and maintenance. This dome system includes D5220P Dome Drive with integrated 2.0 Mp, 20x Day/Night Camera, B52-PG-E Environmental Pendant Back Box, and LDHQPB-1 High-Quality Pendant Lower Dome with Clear Bubble. This camera meets the NEMA Type 4X, IP66 standard when properly installed. The Spectra HD IP dome camera system delivers crystal clear live streaming images over the Internet using a standard Web browser (Microsoft Internet Explorer or Mozilla Firefox). This system is suitable to view details such as faces, license plates, tattoos, playing cards (in casinos), or other specific features.

The Spectra HD IP camera system supports High-Profile H.264 compression, a vast improvement in quality over MPEG-4 and 20 times more efficient than M-JPEG. The dome system features open architecture connectivity for third-party software recording solutions allowing integration into virtually any IP-based HD system. It is also compatible with Digital Sentry video management systems. Moreover, the Spectra HD system is Endura Enabled to record, manage, configure, and view multiple live streams. When connected to an Endura HD network-based video security system, the dome system has access to EnduraStor and EnduraView for optimized image quality and bandwidth efficiency.

The built-in Pelco Analytics Software enhances the flexibility and performance of the Spectra HD dome camera system. 9 user-configurable behaviors are preloaded and included as standard features. The Pelco behaviors can be configured and enabled using a standard Web browser, and they are compatible with Endura or a third-party system that supports alarms using Pelco’s API.

The camera is capable of running up to 3 behaviors at the same time; although, the number of behaviors is limited to the available processing power of the camera and the type of analytic being used. The available processing power is determined by the settings for compression standards, resolution, image rate, bit rate, and analytic configuration. For each behavior, you can create several custom profiles that contain different camera settings. With these profiles, you can set up different scenarios for the behavior, which will automatically detect and trigger alarms when specific activity is detected. The Pelco behavior alarms are compatible with Endura or a third-party system that supports Pelco’s API system.

The multiple Pelco Analytics Software behaviors can be scheduled to work during a certain time or condition. The Spectra HD dome camera system uses a standard Web browser for powerful remote setup and administration. Window blanking is used to conceal user-defined privacy areas that cannot be viewed by an operator. Spectra HD supports up to 32 blanked windows. A blanked area will appear on the screen as a solid gray window.

The Spectra HD camera system easily connects to Pelco IP and hybrid systems such as Endura version 2.0 or later and Digital Sentry version 7.3 or later. The camera is also compatible with Digital Sentry NVs (DS NVs), which is a full-featured video management software (downloadable from the Pelco website). DS NVs video management software includes 4 free Pelco IP licenses and allows for the management of videos from up to 64 cameras. The Spectra HD dome camera system features open architecture connectivity to third-party software. Pelco offers API (Application Programming Interface) and SDK (Software Developer's Kit) for interfacing with Pelco's IP cameras.

Dome Camera System
  • Up to 1920 x 1080 Resolution
  • 16:9 Aspect Ratio; 1080p at 30 ips
  • 2.0 Mp, 20x optical zoom, 12x digital zoom, WDR (Wide Dynamic Range) camera
  • Day/Night capabilities with IR cut filter
  • Backlight compensation, automatic gain control, active noise filtering
  • Ability to control and monitor video over IPv4 and IPv6 networks
  • Built-in analytics including autotracker and adaptive motion detection
  • 2 Simultaneous Video Streams: Dual H.264 and Scalable MJPEG
  • 360° continuous pan rotation at 280°/sec
  • Supported Protocols: TCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP, DNS, DHCP, RTP, NTP, etc.
  • PoE (Power over Ethernet) IEEE 802.3af
  • USB expansion slots for alarms and audio accessories
  • 16 preset tours, 255 dome presets, 32 window blanks
  • Open IP standards
  • ONVIF v1.02 conformant
  • UL/cUL listed
Software Features
  • 255 presets, 16 tours, and ±0.1° preset accuracy
  • Multilingual menus including English, Spanish, Portuguese, Italian, German, French, Russian, Turkish, Arabic, Chinese, and Korean
  • Password protection
  • 280°/sec pan preset speed and 160°/sec tilt preset speed
  • Rotating discreet liner with sealed fixed bubble
  • 32 window blanks, configurable in size
  • Auto Flip feature rotates dome 180° at bottom of tilt travel
  • Configurable park with actions
  • Proportional pan/tilt continually decreases pan/tilt speeds in proportion to depth of zoom
Pelco Analytics User-Configurable Behaviors
  • Abandoned Object: Detects objects placed within a defined zone and triggers an alarm if the object remains in the zone longer than the user-defined time allows. An airport terminal is a typical installation for this behavior. This behavior can also detect objects left behind at an ATM, signaling possible card skimming.
  • Adaptive Motion Detection: Detects and tracks objects that enter a scene and then triggers an alarm when the objects enter a user-defined zone. This behavior is primarily used in outdoor environments with light traffic to reduce the number of false alarms caused by environmental changes.
  • AutoTracker: Detects and tracks movement in the camera’s field of view. When the AutoTracker behavior is configured, the system automatically pans and tilts to follow the moving object until the object stops or disappears from the monitored area.
  • Camera Sabotage: Detects contrast changes in the field of view. An alarm is triggered if the lens is obstructed by spray paint, a cloth, or if it is covered with a lens cap. Any unauthorized repositioning of the camera also triggers an alarm.
  • Directional Motion: Generates an alarm in a high traffic area when a person or object moves in a specified direction. Typical installations for this behavior include an airport gate or tunnel where cameras can detect objects moving in the opposite direction of the normal flow of traffic or an individual entering through an exit door.
  • Loitering Detection: Identifies when people or vehicles remain in a defined zone longer than the user-defined time allows. This behavior is effective in real-time notification of suspicious behavior around ATMs, stairwells, and school grounds.
  • Object Counting: Counts the number of objects that enter a defined zone. This behavior can be used to count the number of people at a store entrance/exit or inside a store where the traffic is light. This behavior is based on tracking and does not count people in a crowded setting.
  • Object Removal: Triggers an alarm if an object is removed from a user-defined zone. This behavior is ideal for customers who want to detect the removal of high value objects, such as a painting from a wall or a statue from a pedestal.
  • Stopped Vehicle: Detects vehicles stopped near a sensitive area longer than the user-defined time allows. This behavior is ideal for airport curbside drop-offs, parking enforcement, suspicious parking, traffic lane breakdowns, and vehicles waiting at gates.
Environmental Pendant Back Box
  • Gray finish
  • Aluminum construction
  • Includes sun shield, heater, and blower

Specifications

Camera
Sensor Type1/2.8" type Exmor CMOS
Zoom20x optical, 12x digital
Maximum Resolution1920 x 1080
LensFocal Length: 4.7 mm (wide) to 94.0 mm (tele)
Aperture: f/1.6 to 3.5
Horizontal Angle of View55.4° (wide) to 2.9° (tele)
Aspect Ratio16:9
Light SensitivityColor: 0.65 lux @ 33 ms, 0.07 lux @ 250 ms
Mono: 0.20 lux @ 33 ms, 0.015 lux @ 250 ms 1
InfraredIR Trace: Curves 850 nm and 950 nm
Frame Rate80 dB
Iris ControlAuto iris with manual override
Video
Video EncodingH.264 High, Main, or Base profiles and MJPEG
Video StreamsUp to 2 simultaneous streams; the second stream is variable based on the setup of the primary stream
Frame RateUp to 30, 25, 15, 12.5, 10, 8.333, 7.5, 6, 5, 3, 2.5, 2, 1 (depending on the coding, resolution, and stream configuration)
Available Resolutions2.07 Mp, 1920 x 1080 (aspect ratio 16:9):
JPEG
Maximum ips: 30
Recommended bit rate: 12 Mb/s
H.264 High Profile
Maximum ips: 30
Recommended bit rate: 3.5 Mb/s

0.92 Mp, 1280 x 720 (aspect ratio 16:9):
JPEG
Maximum ips: 30
Recommended bit rate: 12 Mb/s
H.264 High Profile
Maximum ips: 30
Recommended bit rate: 2.9 Mb/s

0.36 Mp, 800 x 448 (aspect ratio 16:9):
JPEG
Maximum ips: 30
Recommended bit rate: 5.75 Mb/s
H.264 High Profile
Maximum ips: 30
Recommended bit rate: 1.8 Mb/s

0.23 Mp, 640 x 352 (aspect ratio 16:9):
JPEG
Maximum ips: 30
Recommended bit rate: 3.6 Mb/s
H.264 High Profile
Maximum ips: 30
Recommended bit rate: 1.15 Mb/s

0.13 Mp, 480 x 272 (aspect ratio 16:9):
JPEG
Maximum ips: 30
Recommended bit rate: 2.05 Mb/s
H.264 High Profile
Maximum ips: 30
Recommended bit rate: 0.75 Mb/s

0.06 Mp, 320 x 176 (aspect ratio 16:9):
JPEG
Maximum ips: 30
Recommended bit rate: 0.9 Mb/s
H.264 High Profile
Maximum ips: 30
Recommended bit rate: 0.35 Mb/s
Supported ProtocolsTCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, IPv6, SNMP v2c/v3, QoS, HTTP, HTTPS, LDAP (client), SSH, SSL, SMTP, FTP, and 802.1x (EAP) 2
UsersUnicast: Up to 20 simultaneous users depending on resolution settings (2 guaranteed streams)
Multicast: Unlimited users H.264
Security AccessPassword protected
Software InterfaceWeb browser view and setup
Pelco System IntegrationEndura 2.0 or later
Digital Sentry 7.3 or later
InterfaceOpen Application Programming Interface: Pelco API or ONVIF v1.02
Minimum System RequirementsProcessor: Intel Core i3 Processor, 2.4 GHz
Operating System: Microsoft Windows 7 (32-bit and 64-bit) with DirectX 11, Windows XP Service Pack 3 with DirectX 9.0c, or Mac OS X 10.4 or later
Memory: 4 GB RAM
Network Interface Card: 100 megabits or greater
Monitor: Minimum of 1024 x 768 resolution, 16- or 32-bit pixel color resolution
Web Browser: Internet Explorer 8.0 or later or Mozilla Firefox 3.5 or later; Internet Explorer 8.0 or later is recommended for configuring analytics
Media Player: Pelco Media Player or QuickTime 7.6.5 for Windows XP, Windows Vista, and Windows 7; or QuickTime 7.6.4 for Mac OS X 10.4 or later Note:
This product is not compatible with QuickTime version 7.6.4 for Windows XP or Windows Vista. If you have this version installed on your PC, you will need to upgrade to QuickTime version 7.6.5.

Pelco Media Player is recommended for control, smoothness, and reduced latency as compared to QuickTime.
Software
System RequirementsPelco Interface: WS5200 Advanced System Management Software on an Endura 2.0 (or later) system
Open API: The Pelco API can transmit behavior alarm data to third-party applications, available at pdn.pelco.com
Dome Drive
Variable Speed0.1 to 280°
Preset Accuracy±0.1°
Pan Movement360° continuous pan rotation
Vertical Tilt+1 to -90°
Manual Pan/Tilt SpeedsPan: 0.1 to 80°/sec manual operation
Tilt: 0.1 to 40°/sec manual operation
Preset SpeedsPan: 280°/sec
Tilt: 160°/sec
General
ConstructionBack Box: Aluminum
Dome Drive: Aluminum, thermo plastic
Bubble: Acrylic
Light AttenuationZero light loss
Cable EntryBack Box: Through 1.5" NPT pendant mount
Electrical
PortsRJ-45 connector for 100Base-TX
Auto MDI/MDI-X
Auto negotiate/Manual setting
Cabling TypeCAT5 or better for 100Base-TX
Input Voltage18 to 32 VAC; 24 VAC nominal
22 to 27 VDC; 24 VDC nominal
Input Power24 VAC: 23 VA nominal (without heater and blower); 73 VA nominal (with heater and blower)
24 VDC: 0.7 A nominal (without heater and blower); 3 A nominal (with heater and blower)
PoE: IEEE802.3af (without heater and blower) 3
General
CertificationsCE, Class A
FCC, Class A
C-Tick
U.S. Patents 5,931,432; 6,793,415 B2; 6,802,656 B2; 6,821,222 B2; 7,161,615 B2
Back box meets NEMA Type 4X and IP66 standards when installed properly
ONVIF 1.02
KCC
Cisco Medianet Media Services Proxy 2.0 compatible
IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-30, and IEC 60068-2-78
Effective Projected Area (EPA)20.5 sq in. without mount
47 sq in. with IWM Series mount (sold separately)
Operating TemperatureMaximum: 140°F (60°C) absolute maximum; 122°F (50°C) sustained maximum
Minimum: -50°F (-45°C) sustained minimum; -60°F (-51°C) absolute minimum; prevents icing at sustained minimum of -22°F (-30°C); de-ices 0.1" (2.5 mm) within 3 hours after power-up at -22°F (-30°C) 4
Operating Humidity10 to 100% RH (condensing)
Overall Dimensions10.60 x 9.38" (26.90 x 23.80 cm)
Weight7.9 lb (3.6 kg)



    • SKU
      S5220-EG0
    • Weight
      7.6 lbs
  • Manufacturer
    Pelco
  • UPC
    700880321522
