Parameter

Note

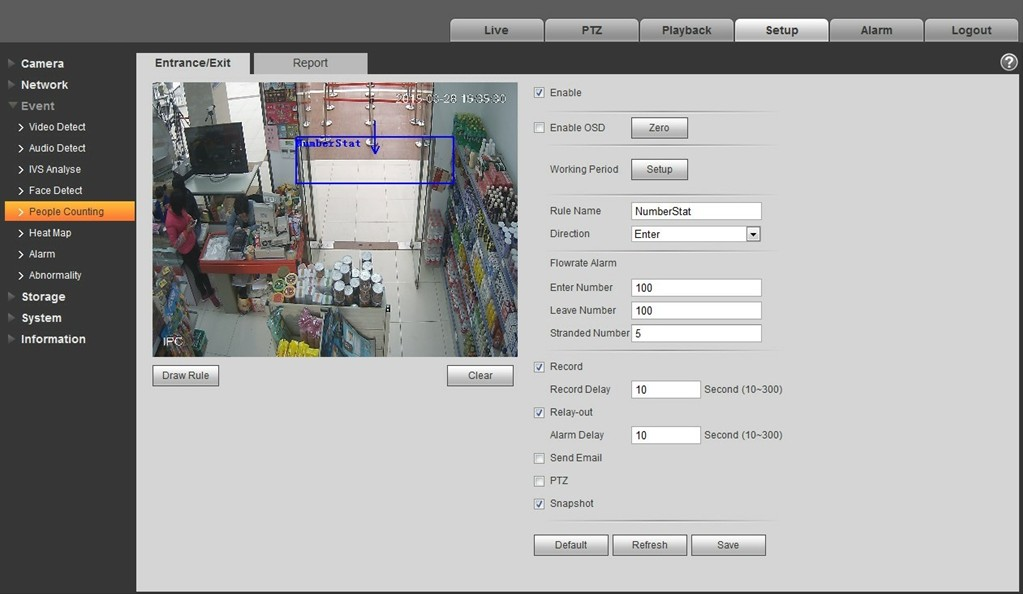

Enable

Check to draw rule box for Flowrate statistics.

Enable OSD Overlay

Check to display enter number and leave number in the monitoring image.

Note:

The OSD location can be set in Chapter 5.1.2.3 Video Overlay.

Direction

Able to select enter and leave.

Flowrate Alarm

It will trigger alarm when the enter number, leave number and stranded number exceed the limited amount.

Parameter

Note

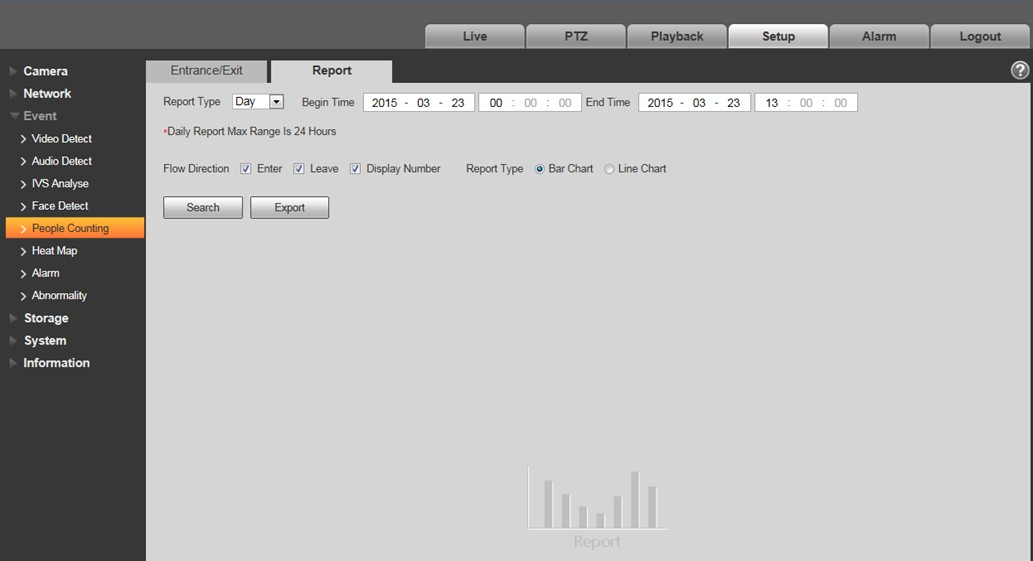

Report Type

Can select day report, month report and year report; also can select bar chart or line chart to display the report.

Time

It can set the begin /end time within the range of statistics time.

Flow Direction

It can select enter, leave and display number; the data of checked item can be displayed in the report.

Search

Search flow statistics data according to the setting to form report.

Export

Export the saved report.
