2MP Covert Pinhole Network Camera
        • 2MP Covert Pinhole Network Camera
        • 2MP Covert Pinhole Network Camera

        2MP Covert Pinhole Network Camera

        WEC
        SKU: WEC-HUM8230

        > 1/2.8” 2Megapixel progressive scan STARVIS™ CMOS
        > H.265&H.264 triple-stream encoding
        > 25/30fps@1080P(1920×1080)
        > Day/Night(Electronic), 3DNR,AWB,AGC,BLC
        > Smart detection
        > 2.8mm Fixed Lens
        > Micro SD memory, PoE

          • 37% less
          Market price:$396.00 save $147.00
        • $249.00

        OR

        > 1/2.8” 2Megapixel progressive scan STARVIS™ CMOS
        > H.265&H.264 triple-stream encoding
        > 25/30fps@1080P(1920×1080)
        > Day/Night(Electronic), 3DNR,AWB,AGC,BLC
        > Smart detection
        > 2.8mm Fixed Lens
        > Micro SD memory, PoE

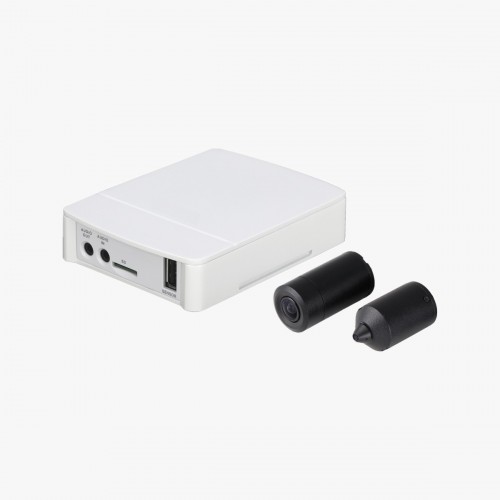

        System Overview

        worldeyecam covert camera used modular design, provide an independent main unit and a miniature sensor unit (with 8-meters cable), with cylindrical pinhole lens and cylindrical standard lens for the customers to choose,It can be easily installed into any indoor environments, make this camera ideal for the ATMs(Automatic Teller Machines), banks, stores, hotels and offices.

        Functions

        Intelligent Video System (IVS) worldeyecam camera has a built-in video analysis based on intelligent algorithms and can achieve the following:Tripwire,Intrusion,Abandoned/ Missing can timely, quickly and accurately respond to monitoring events in specific area. It enhances monitoring efficiency. At the same time, the camera can support face detection,it can quickly capture a face and upload the image to the server. In addition the camera also supports intelligent tamper detection,through dramatic changes in the scene it will send out warning information to ensure effective monitoring.

        Protection

        Supporting ±30% input voltage tolerance, this camera suits even the most unstable conditions for outdoor applications. Its 6KV lightning rating provides effective protection for both the camera and its structure against lightning.

        HEVC (H.265)

        H.265 ITU-T VCEG is a new video coding standard. H.265 Following standard developed around the existing video coding standard H.264 , some retain the original technology , while some of the relevant technology to improve the new technology uses advanced technology to improve the relationship between the code stream , encoding quality , and the delay between algorithm complexity , optimize settings specific contents include : Improve compression efficiency , improve the robustness and error recovery capabilities, real-time to reduce the delay, reduce channel acquisition time and a random access delay , reduce complexity , etc

        Smart H.265+

        Deliver high quality video without straining the network, Smart H.265+ is the optimized implementation of H.265. The Smart H.265+ encoding technology includes a scene adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction, providing saving of up to 70% of bandwidth and storage when compared with standard H.265.

        Camera

        Image Sensor

        1/2.8” 2Megapixel progressive scan CMOS

        Effective Pixels

        1920(H)x1080(V)

        RAM/ROM

        256MB/32MB

        Scanning System

        Progressive

        Minimum Illumination

        L1: 0.07Lux/F2.4 (Color), 0.007Lux/F2.4 (B/W)

        L3: 0.009Lux/F1.8 (Color), 0.001Lux/F1.8 (B/W)

        S/N Ratio

        More than 50dB

        IR Distance

        N/A

        IR On/Off Control

        N/A

        IR LEDs

        N/A

        Lens

        Lens Type

        Fixed

        Mount Type

        Board-in

        Focal Length

        2.8mm

        Max. Aperture

        Sensor Unit L1:F2.4

        Sensor Unit L3:F1.8

        Angle of View

        Sensor Unit L1 H:104° ,V:57°

        Sensor Unit L3 H:118° ,V:60°

        Optical Zoom

        N/A

        Focus Control

        Fixed

        Close Focus Distance

        N/A

        Pan/Tilt/Rotation

        Pan/Tilt/Rotation Range

        N/A

        Intelligence

        IVS (optional)

        Tripwire, Intrusion, Object Abandoned/Missing

        Advanced Intelligent Functions

        Face Detection

        Video

        Compression

        H.265+/H.265/H.264+/H.264

        Streaming Capability

        3 Streams

        Resolution

        1080P(1920×1080)/ 1.3M(1280x960)/ 720P(1280x720)/ D1(704×576/704x480)/ VGA(640x480)/ CIF(352×288/342x240)

        Frame Rate

        Main Stream: 1080P(1~25/30fps)

        Sub Stream: D1 (1 ~ 25/30fps)

        Third Stream: 1080P(1~25/30fps)

        Bit Rate Control

        CBR/VBR

        Bit Rate

        H.264: 24Kbps~ 9472Kbps

        H.265: 14Kbps~ 5632Kbps

        Day/Night

        Electronic

        BLC Mode

        BLC / HLC / DWDR

        White Balance

        Auto/Natural/Street Lamp/Outdoor/Manual

        Gain Control

        Auto/Manual

        Noise Reduction

        3D DNR

        Motion Detetion

        Off / On (4 Zone, Rectangle)

        Region of Interest

        Off / On (4 Zone)

        Electronic Image Stabilization (EIS)

        N/A

        Smart IR

        N/A

        Defog

        N/A

        Digital Zoom

        16x

        Flip

        0°/90°/180°/270°

        Mirror

        Off / On

        Privacy Masking

        Off / On (4 Area, Rectangle)

        Audio

        Compression

        G.711a/ G.711Mu/ AAC/ G.726

        Network

        Ethernet

        RJ-45 (10/100Base-T)

        Protocol

        HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;

        DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;

        Bonjour;802.1x;Multicast;ICMP;IGMP;SNMP

        Interoperability

        ONVIF, PSIA, CGI

        Streaming Method

        Unicast / Multicast

        Max. User Access

        10 Users/20 Users

        Edge Storage

        NAS

        Local PC for instant recording

        Mirco SD card 128GB

        Web Viewer

        IE, Chrome, Firefox, Safari

        Management Software

        Smart PSS, DSS, Easy4ip

        Smart Phone

        IOS, Android

        Certifications

        Certifications

        CE (EN 60950:2000)

        UL:UL60950-1

        FCC: FCC Part 15 Subpart B

        Interface

        Video Interface

        N/A

        Audio Interface

        1/1 channel In/Out

        RS232

        1 port

        Alarm

        2/2 channel In/Out

        Electrical

        Power Supply

        DC12V, PoE(802.3af)(Class 0)

        Power Consumption

        <6W

        Environmental

        Operating Conditions

        -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

        Strorage Conditions

        -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

        Ingress Protection

        N/A

        Vandal Resistance

        N/A

        Construction

        Casing

        Metal

        Dimensions

        Main Unit:110.0mm×82.7mm×24.0mm (4.33”×3.26”×0.95”)

        Sensor Unit L1:Φ26.5mm×48.31mm(Φ1.04”×1.9”)

        Sensor Unit L3:Φ26.5mm×50.38mm(Φ1.04”×2.0”)

        Net Weight

        Main Unit:0.2Kg (lb)

        Sensor Unit L1:0.22Kg (lb)

        Sensor Unit L3:0.235Kg (lb)

        Gross Weight

        Main Unit:0.36Kg (lb)

        Sensor Unit L1:0.31Kg (lb)

        Sensor Unit L3:0.325Kg (lb)



        Datasheet



        User Manual



        User Manual



        Drawings



        Drawings



        Firmware



        Firmware



        Firmware



          • SKU
            WEC-HUM8230
          • Weight
            0.2 lbs
        • Manufacturer
          WEC
        • Camera Type
          Covert
        • Camera Signal
          IP
        • Camera Resolution
          1080p
        • Lens Size
          2.8mm
        • Optical Zoom
          Fixed Lens
