GV-1-port PoE Extender 140-POEX01-000
        • GV-1-port PoE Extender 140-POEX01-000
        • GV-1-port PoE Extender 140-POEX01-000

        GV-1-port PoE Extender 140-POEX01-000

        Geovision
        SKU: 84-POE0100-0010
        1. GV-POEX0100
        2. Screw x 2
        3. Screw anchor x 2
        4. GV-POEX0100 Installation Guide
          • 27% less
          Market price:$85.00 save $22.74
        • $62.26

        OR
        Camera packaging contents:


        • 10/100 PoE extender
        • PoE (IEEE 802.3af) and PoE+ (IEEE 802.3at) compliant
        • Extension up to 600 m (1968.5 ft) using 5 GV-POEX0100
        • Compatible with GV-IP Cameras
        • No additional power supply required
        1. GV-POEX0100
        2. Screw x 2
        3. Screw anchor x 2
        4. GV-POEX0100 Installation Guide
        Introduction

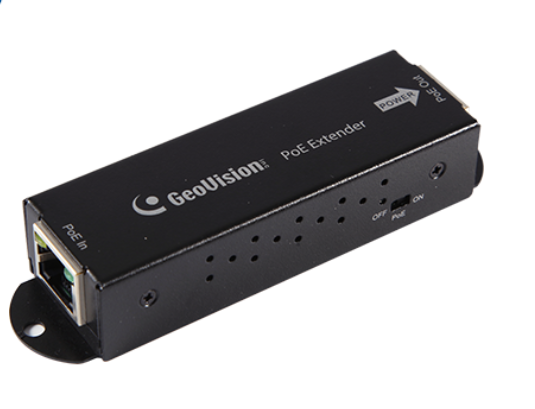

        GV-POEX0100 is a single-port, 10/100 PoE extender that can extend the distance between a PoE switch and a GV-IP Camera by 100 m (328.08 ft) for every extender installed. They can be serially connected, with no additional power supply, to transmit power and data to a GV-IP Camera as far as up to 600 meters (1968.5 ft) away from a PoE switch.


        GV-POEX0100.pdf

        Datasheet_POEX0100.pdf


        Item No. (Sales Part No.)Description
        140-POEX01-0001-Port PoE Extender


        The maximum distance allowed between a PoE switch and a GV-IP Camera depends on the PoE switch type, PoE power output of the connected device (PD) and the type of power supply. These can be summarized below.

        GV-IP Cameras Powered by PoE

        		Brand & Model
        PD of GV-IP CamerasGeoVisionThird-Party PoE Switches (IEEE 802.3at)
        GV-POE0801 / 0811 GV-POE0812 GV-POE1601 / 1611 GV-POE2401 / 2411GV-POE0400 GV-POE0410-E GV-POE0800 GV-POE0810
        PD < 6.49 W (IEEE 802.3af)600 m (1968.5 ft)400 m (1312.34 ft)400 m (1312.34 ft)
        PD 6.5 W ~ 12.95 W (IEEE 802.3af)400 m (1312.34 ft)200 m (656.17 ft)200 m (656.17 ft)
        PD 13 W ~ 25.5 W (IEEE 802.3at)200 m (656.17 ft)--
        PD > 25.5 W---

        GV-IP Cameras Powered by Power Adapters
        Brand & ModelGeoVisionThird-Party PoE Switches (IEEE 802.3at)
        GV-POE0801 / 0811 GV-POE0812 GV-POE1601 / 1611 GV-POE2401 / 2411GV-POE0400 GV-POE0410-E GV-POE0800 GV-POE0810
        GV-IP Cameras600 m (1968.5 ft)400 m (1312.34 ft)400 m (1312.34 ft)
        Compatibility
        1. GV-POEX0100 is only compatible with third-party switches that comply to PoE+ (IEEE 802.3at) and is not compatible with GV-PA191/481/482/901.
        2. GV-POEX0100 supports all GV-IP Cameras when installed with a power adapter and does not support the following models when powered by PoE: • GV-BX2510-E / 5310-E • GV-FE3403 / 5303 • GV-VD2540-E / 5340-E • GV-SD220 / 220-S
        3. GV-POEX0100 is only compatible with the following GeoVision PoE switches of the indicated firmware versions: • GV-POE0801 / 1601 / 2401 (V1.03 or later) • GV-POE0811 / 1611 / 2411 (V1.01 or later)


        Ports
        Network Standard10/100 Mbps half/full duplex
        ConnectorsRJ-45
        Network cablesCat5e or higher
        Mechanical
        LED Indicator4 LEDs: Power x2, Network x2 Power indicator: PoE enable (Amber) Network indicator: Link (Green), Activity (Green Blink)
        PoE Control ButtonOn / Off
        General
        Operating Temperature-10°C ~50°C (14°F ~ 122°F)
        Humidity10% to 90% (no condensation)
        EnvironmentIndoor
        Dimensions (L x W x H)102.8 x 28.8 x 20 mm (4.05" x 1.13" x 0.79")
        Weight87 g (0.19 lb)
        RegulatoryCE, FCC Class A









          • SKU
            84-POE0100-0010
          • Weight
            5 lbs
        • Manufacturer
          Geovision
        • Recorder Type
          NVR (with POE Ports)
        • Remote Login Support
          No Login Support Needed, 1 Time FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
