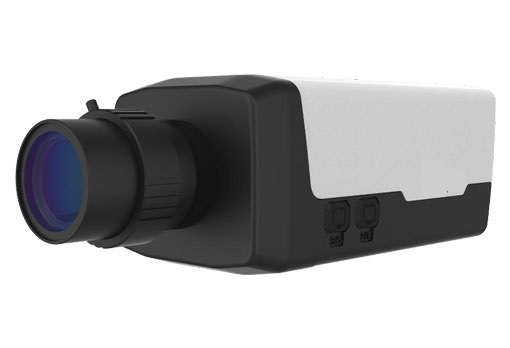

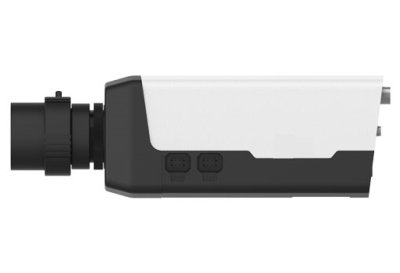

2MP WDR Network Box Camera
SKU: WEC542E-DLC-COptics
Day/night functionality
Lowlight surveillance
2D/3D DNR (Digital Noise Reduction)
Up to 120 dB WDR(Wide Dynamic Range)
Compression
Triple streams
ROI (Region of Interest)
9:16 corridor mode
Customized OSD
Network
ONVIF Conformance
Structure
AC 24V /DC 12 V/PoE power supply
Wide temperature range: -20°C to 60°C (-4°F to 140°F)
Wide voltage range of ±10%
6 KV surge protection designed for network interface
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
Optics
Day/night functionality
Lowlight surveillance
2D/3D DNR (Digital Noise Reduction)
Up to 120 dB WDR(Wide Dynamic Range)
Compression
Triple streams
ROI (Region of Interest)
9:16 corridor mode
Customized OSD
Network
ONVIF Conformance
Structure
AC 24V /DC 12 V/PoE power supply
Wide temperature range: -20°C to 60°C (-4°F to 140°F)
Wide voltage range of ±10%
6 KV surge protection designed for network interface
WEC542E-DLC-C | |
Camera | |
Sensor | 1/2.8", 2.0 megapixel, progressive scan, CMOS |
Shutter | Auto/Manual, 1 ~ 1/100000s |
Minimum Illumination | Colour: 0.0005Lux (F1.2, AGC ON) B/W: 0.0001Lux(F1.2, AGC ON) |
Lens Mount | C/CS |
Iris | DC-Iris/P-Iris, DC 5V (4 Pins) |
Day/Night | IR-cut filter with auto switch (ICR) |
Digital noise reduction | 2D/3D DNR |
S/N | >52dB |
Defog | Digital Defog |
WDR | 120dB |
Video | |
Video Compression | Ultra 265, H.264, MJPEG |
H.264 code profile | Baseline profile, Main Profile, High Profile |
Frame Rate | Main Stream: 2MP (1920*1080), Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps |
9:16 Corridor Mode | Supported |
HLC | Supported |
BLC | Supported |
OSD | Up to 8 OSDs |
Privacy Mask | Up to 8 areas |
ROI | Up to 8 areas |
Motion Detection | Up to 4 areas |
Smart | |
Behavior Detection | Intrusion, cross line, motion detection |
Exception Detection | Audio detection |
Intelligent Identification | Face detection, Defocus, Scene Change, Object Left, Object Moving |
Statistical Analysis | People counting |
General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
Audio | |
Audio Compression | G.711 |
Two-way audio | Supported |
Suppression | Supported |
Sampling Rate | 8KHZ |
Storage | |
Edge Storage | Micro SD, up to 256GB |
Network Storage | ANR |
Network | |
Protocols | IPv4, IGMP,ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
Compatible Integration | ONVIF (Profile S, Profile G), API |
Interface | |
Audio I/O | 3.5mm audio interface |
Input: impedance 35kΩ; amplitude 2V [p-p] | |
Output: impedance 600Ω; amplitude 2V [p-p] | |
Alarm I/O | 2/1 |
Zoom/focus | N/A |
Serial Port | 1 RS485 (support Pelco-D/P) |
Network | 1 RJ45 10M/100M Base-TX Ethernet |
Video Output | 1 BNC, impedance 75Ω; amplitude 1V [p-p] |
General | |
Power | AC 24V±10%, DC 12V±10%, PoE (IEEE 802.3af) |
Power consumption: Max 6.8W | |
Dimensions (L × W × H) | 151.5 x 71 x 65mm (6.0“ x 2.8“ x 2.6”) (excluding the lens) |
Weight | 0.48kg (1.1lb) |
Working Environment | -20°C ~ 60°C (-4°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
Reset Button | Supported |
