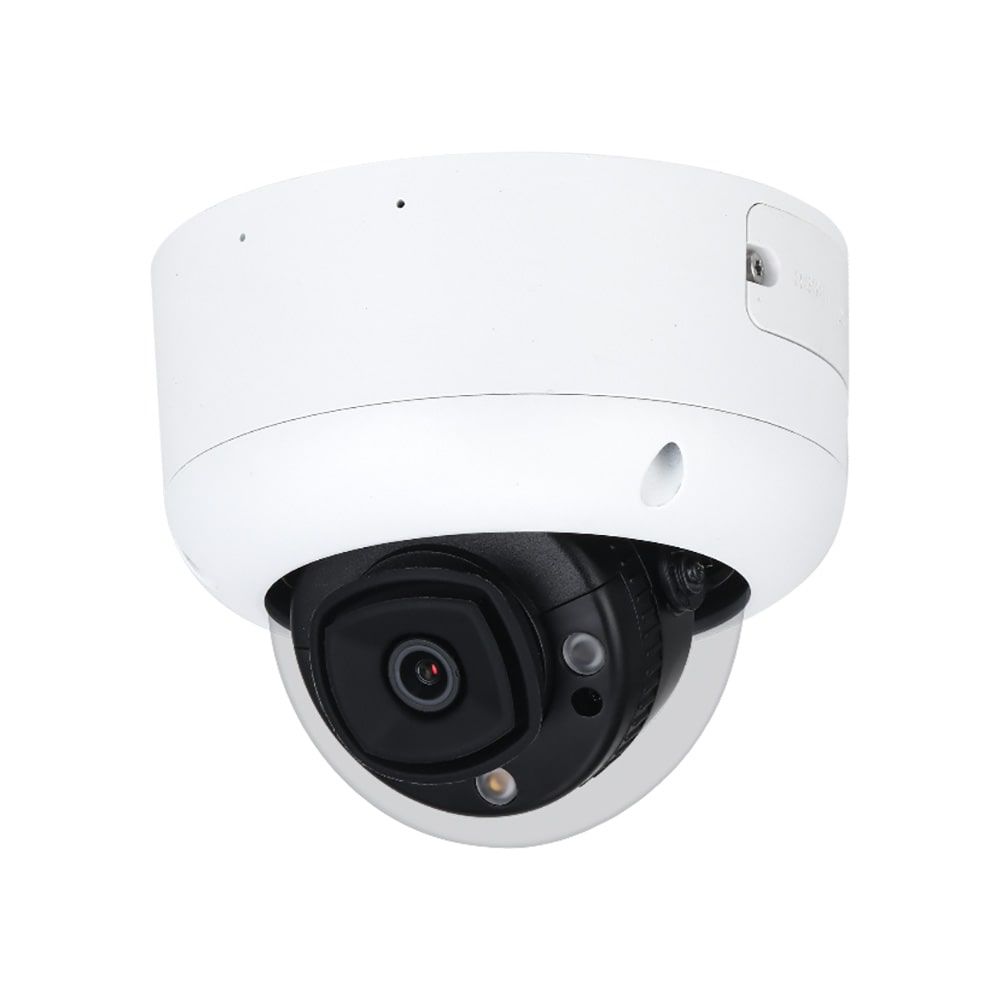

5MP Fixed Dome Network Security Camera CSP-IPTK5-S

iMaxCamPro
SKU: WEC5I251R1-ASPV/28

Features

  • 5MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
  • Outputs max. 5MP (2592 × 1944) @20 fps, and supports 2688×1520 (2688 × 1520) @25/30 fps
  • H.265 codec, high compression rate, ultra-low bit rate
  • Built-in high-efficiency warm light and IR LED, and Max. IR distance: 50 m
  • ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
  • Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
  • Intelligent detection: Intrusion, tripwire, fast-moving (the three functions support the classification and accurate detection of vehicle and human), abandoned object, missing object, loitering detection, people gathering, parking detection, heat map and face detection.
  • Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
  • Sound and light alarm linkage. When the alarm is triggered, the sound and light will be linked.
  • Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic and speaker.
  • 12V DC/PoE power supply
  • IP67, IK10 protection
Image Sensor1/2.7”5Megapixel progressive CMOS
Image Size2592 (H) × 1944 (V)
RAM/ROM512MB/128MB
Electronic ShutterAuto/Manual 1/3 s–1/100,000 s
Minimum Illumination

0.005 Lux

S/N RatioMore than 56dB
IR LEDs1
Smart IRSupport
IR Distance30 m (98.4 ft)
IR On/Off ControlAuto/ Manual
Focal Length2.8 mm; 3.6 mm; 6 mm
Angle of View2.8 mm: Horizontal 98° × Vertical 71° × Diagonal 129°
Max. Aperture2.8 mm: F1.6 3.6 mm: F1.6 6 mm: F1.6
Close Focus Distance2.8 mm: 0.9 m (3.0 ft)
DORI Distance
Lens(mm)Detect(m)Observe(m)Recognize(m)Identify(m)
2.856.0 m(183.7 ft)22.4 m(73.5 ft)11.2 m (36.7 ft)5.6 m (18.4 ft)
3.6mm80.0 m (262.5 ft)32.0 m (105.0 ft)16.0 m (52.5 ft)8.0 m (26.2 ft)
Pan / Tilt / RotationPan: 0°–355° Tilt: 0°–80° Rotation: 0°–355°
Video CompressionH.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Streaming Capability3 streams
Video Resolution

5M (2592 × 1944); 4M (2688 × 1520); 4M (2560 ×
1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M
(1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 ×
480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Video Frame Rate

PAL
Main stream: 2592 × 1944 @1-20 fps/2688 × 1520
@1-25 fps
Sub stream: 704 × 576 @1-25 fps
Third stream: 1920 × 1080 @1-11 fps
NTSC
Main stream: 2592 × 1944 @1-20 fps/2688 × 1520
@1-30 fps
Sub stream: 704 × 576 @1-30 fps
Third stream: 1920 × 1080 @1 fps

Video Bitrate

H.264: 32 kbps–8192 kbps
H.265: 12 kbps–8192 kbps

Day / NightAuto(ICR)/Color/B/W
BLC ModeYes
HLCYes
White BalanceAuto, Manual
Gain ControlAuto/Manual
Digital Noise Reduction3D DNR
Motion DetectionOFF/ON (4 areas, rectangular)
Region of InterestYes (4 areas)
DefogSupport
MirrorYES
Privacy Masking4 areas
Audio CompressionPCM; G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G.722.1; G.729; G.723
Audio In1 channel (RAC port)
Audio Out1 channel (RAC port)
Alarm In1 channel in: 5mA 3V–5V DC
Alarm Out1 channel out: 300mA 12V DC
General IntelligenceFace detection; track; optimization; snapshot; face enhancement; face exposure; face matting setting: face, single inch photo; three snapshot methods: real- time snapshot, optimization snapshot, quality priority; face angle filter; optimization time set
VCA DetectionIntelligent Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
AI Perimeter ProtectionTripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection
Advanced AI FunctionsSupport the counting of enter number, leave number and pass numbe, and displaying and outputting yearly/ monthly/daily reports.support people counting in area,
EthernetRJ-45 (10/100 Base-T)
Network ProtocolIPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP;
RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS;
QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA;
PPPoE; 802.1x; SNMP
Network InteroperabilityONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec
Network Max. Users20 (Total bandwidth: 80 M)
StorageFTP; SFTP; Micro SD card (support max. 256 G); NAS
Storage Card256GB
Web ViewerIE: IE8, IE9, IE11 Chrome Firefox
Management SoftwareSmart PSS; DSS; DMSS
MobileiPhone, Android
CertificationsCE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Power Supply12V DC/PoE
Power Consumption<8.6W
Operating Temperature–40°C to +60°C (–40°F to +140°F)/Less than 95% RH
Storage Temperature–40°C to +60°C (–40°F to +140°F)
Ingress ProtectionIP67
Dimensions105 mm × Φ126 mm (4.1" × Φ5.0")
WeightNet Weight 716.4 g (1.6 lb) Gross Weight 929.7 g (2.0 lb)



    • 38% less
    Market price:$576.00 save $218.00
  • $358.00

OR

Features

  • 5MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
  • Outputs max. 5MP (2592 × 1944) @20 fps, and supports 2688×1520 (2688 × 1520) @25/30 fps
  • H.265 codec, high compression rate, ultra-low bit rate
  • Built-in high-efficiency warm light and IR LED, and Max. IR distance: 50 m
  • ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
  • Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
  • Intelligent detection: Intrusion, tripwire, fast-moving (the three functions support the classification and accurate detection of vehicle and human), abandoned object, missing object, loitering detection, people gathering, parking detection, heat map and face detection.
  • Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
  • Sound and light alarm linkage. When the alarm is triggered, the sound and light will be linked.
  • Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic and speaker.
  • 12V DC/PoE power supply
  • IP67, IK10 protection
Image Sensor1/2.7”5Megapixel progressive CMOS
Image Size2592 (H) × 1944 (V)
RAM/ROM512MB/128MB
Electronic ShutterAuto/Manual 1/3 s–1/100,000 s
Minimum Illumination

0.005 Lux

S/N RatioMore than 56dB
IR LEDs1
Smart IRSupport
IR Distance30 m (98.4 ft)
IR On/Off ControlAuto/ Manual
Focal Length2.8 mm; 3.6 mm; 6 mm
Angle of View2.8 mm: Horizontal 98° × Vertical 71° × Diagonal 129°
Max. Aperture2.8 mm: F1.6 3.6 mm: F1.6 6 mm: F1.6
Close Focus Distance2.8 mm: 0.9 m (3.0 ft)
DORI Distance
Lens(mm)Detect(m)Observe(m)Recognize(m)Identify(m)
2.856.0 m(183.7 ft)22.4 m(73.5 ft)11.2 m (36.7 ft)5.6 m (18.4 ft)
3.6mm80.0 m (262.5 ft)32.0 m (105.0 ft)16.0 m (52.5 ft)8.0 m (26.2 ft)
Pan / Tilt / RotationPan: 0°–355° Tilt: 0°–80° Rotation: 0°–355°
Video CompressionH.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Streaming Capability3 streams
Video Resolution

5M (2592 × 1944); 4M (2688 × 1520); 4M (2560 ×
1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M
(1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 ×
480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Video Frame Rate

PAL
Main stream: 2592 × 1944 @1-20 fps/2688 × 1520
@1-25 fps
Sub stream: 704 × 576 @1-25 fps
Third stream: 1920 × 1080 @1-11 fps
NTSC
Main stream: 2592 × 1944 @1-20 fps/2688 × 1520
@1-30 fps
Sub stream: 704 × 576 @1-30 fps
Third stream: 1920 × 1080 @1 fps

Video Bitrate

H.264: 32 kbps–8192 kbps
H.265: 12 kbps–8192 kbps

Day / NightAuto(ICR)/Color/B/W
BLC ModeYes
HLCYes
White BalanceAuto, Manual
Gain ControlAuto/Manual
Digital Noise Reduction3D DNR
Motion DetectionOFF/ON (4 areas, rectangular)
Region of InterestYes (4 areas)
DefogSupport
MirrorYES
Privacy Masking4 areas
Audio CompressionPCM; G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G.722.1; G.729; G.723
Audio In1 channel (RAC port)
Audio Out1 channel (RAC port)
Alarm In1 channel in: 5mA 3V–5V DC
Alarm Out1 channel out: 300mA 12V DC
General IntelligenceFace detection; track; optimization; snapshot; face enhancement; face exposure; face matting setting: face, single inch photo; three snapshot methods: real- time snapshot, optimization snapshot, quality priority; face angle filter; optimization time set
VCA DetectionIntelligent Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
AI Perimeter ProtectionTripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection
Advanced AI FunctionsSupport the counting of enter number, leave number and pass numbe, and displaying and outputting yearly/ monthly/daily reports.support people counting in area,
EthernetRJ-45 (10/100 Base-T)
Network ProtocolIPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP;
RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS;
QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA;
PPPoE; 802.1x; SNMP
Network InteroperabilityONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec
Network Max. Users20 (Total bandwidth: 80 M)
StorageFTP; SFTP; Micro SD card (support max. 256 G); NAS
Storage Card256GB
Web ViewerIE: IE8, IE9, IE11 Chrome Firefox
Management SoftwareSmart PSS; DSS; DMSS
MobileiPhone, Android
CertificationsCE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Power Supply12V DC/PoE
Power Consumption<8.6W
Operating Temperature–40°C to +60°C (–40°F to +140°F)/Less than 95% RH
Storage Temperature–40°C to +60°C (–40°F to +140°F)
Ingress ProtectionIP67
Dimensions105 mm × Φ126 mm (4.1" × Φ5.0")
WeightNet Weight 716.4 g (1.6 lb) Gross Weight 929.7 g (2.0 lb)



    • SKU
      WEC5I251R1-ASPV/28
    • Weight
      1.7 lbs
  • Manufacturer
    iMaxCamPro
  • Camera Type
    Eyeball / Turret
  • Camera Signal
    IP
  • Camera Resolution
    5 Megapixel
  • Lens Size
    2.8mm
  • Optical Zoom
    Fixed Lens
  • Shipping Lead Time
    Ships Same Day
  • Lens Type
    WDR
  • Infrared Distance
    30 m (98.4 ft)
