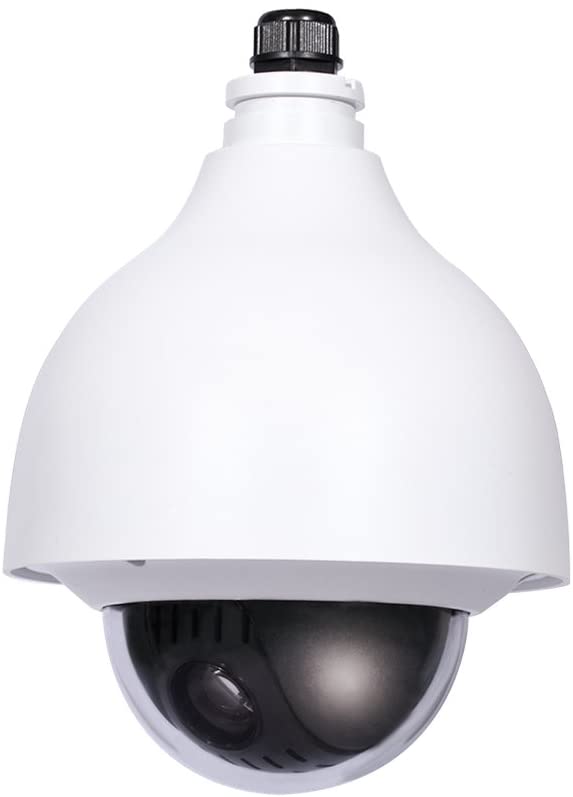

2MP 12x Mini HDCVI PTZ Camera,5.1 mm~61.2mm Varifocal Lens, Privacy Masking,IP66, Indoor and Outdoor for Home Security
- 1/2.8" Exmor CMOS, 30fps@1080P
- 12X Optical Zoom,Max 300°/s pan speed, 360° continuous pan rotation; Control over coaxial cable, long distance real-time transmission;Up to 255 presets, 5 auto scan, 8 tour, 5 pattern Built-in 2/1 alarm in/out
- DWDR, Day/Night (ICR), DNR (2D&3D), Auto iris, Auto focus, AWB, AGC, BLC
- HD and SD switchable; Support intelligent 3D positioning with DH-SD protocol
- IP66, OSD
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
PRODUCT FEATURES
- 1/2.8" Exmor CMOS, 30fps@1080P
- 12X Optical Zoom,Max 300°/s pan speed, 360° continuous pan rotation; Control over coaxial cable, long distance real-time transmission;Up to 255 presets, 5 auto scan, 8 tour, 5 pattern Built-in 2/1 alarm in/out
- DWDR, Day/Night (ICR), DNR (2D&3D), Auto iris, Auto focus, AWB, AGC, BLC
- HD and SD switchable; Support intelligent 3D positioning with DH-SD protocol
- IP66, OSD
Technical Specifications
Camera
Image Sensor: 1/2.8"" Exmor CMOS
Effective Pixels: 1944(H) x 1092(V), 2 Megapixels
Horizontal Resolution: ≥1000TVL
Scanning System: Progressive
Electronic Shutter Speed: 1/1s ~1/30,000s
Min. Illumination: Color: 0.05 Lux/F1.6, B/W: 0.005Lux/F1.6
S/N Ratio: More than 55dB
Resolution: 1080P(25/30fps), 720P(25/30/50/60fps)
Video Output: 1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch)
Camera Features
Day/Night: Auto(ICR) / Color / B/W
Backlight Compensation: BLC / HLC / DWDR (Digital WDR)
White Balance: Auto, ATW, Indoor, Outdoor, Manual
Gain Control: Auto / Manual
Noise Reduction: 2D / 3D
Privacy Masking: Up to 24 areas
Digital Zoom: 16x Lens
Focal Length: 5.1 mm~61.2mm (12x Optical zoom)
Max Aperture: F1.6~ F3.0
Focus Control: Auto / Manual
Angle of View: H: 51.3° ~ 4.64°
Close Focus Distance: 100mm~1000mm
PTZ
Pan/Tilt Range: Pan: 0° ~ 360° endless; Tilt: -2° ~ 90°, auto flip 180°
Manual Control Speed: Pan: 0.1° ~ 300°/s; Tilt: 0.1° ~120°/s
Preset Speed: Pan: 300°/s; Tilt:200°/s
Preset: 80(DH-SD) , 255(Pelco-P/D)
PTZ Mode: 5 Pattern, 8 Tour, 5 Auto Scan, Auto Pan
Speed Setup: Human-oriented focal length/ speed adaptation
Power up Action: Auto restore to previous PTZ and lens status after power failure
Idle Motion: Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
Protocol: DH-SD, Pelco-P/D (Auto recognition)
Audio
Interface: 1 channel In
Auxiliary Interface
RS485: 1
Alarm: 2/1 channel In/Out
General
Power Supply: AC24V/1.5A (±10%)
Power Consumption: 10W, 19W(Heater on)
Working Environment: -40ºC ~ 60ºC /Less than 90% RH
Ingress Protection: IP66
Dimensions: Φ186mm×234mm
Weight: 2.3Kg
