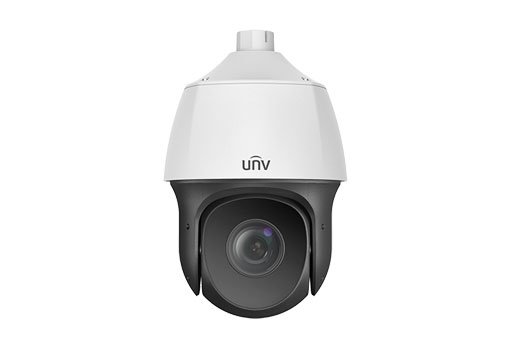

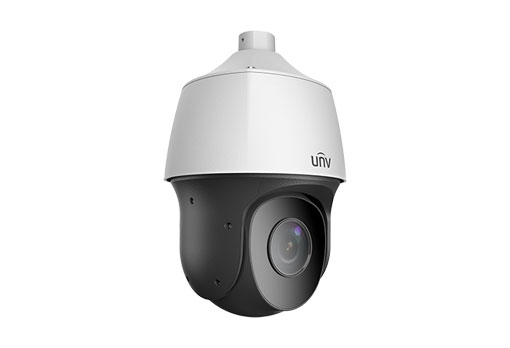

Uniview IPC6322SR-X22-PC | 22X IR Network PTZ Dome Camera

Uniview
SKU: IPC6322SR-X22-PC

Features

  • 1/2.9" progressive scan CMOS
  • 22X Optical Zoom (5.2~114.4mm)
  • Up to 1920 x 1080 resolution, 30fps
  • Fifth-generation infrared technology, more than150m (492ft) IR distance
  • IR anti-reflection window to increase the infrared transmittance
  • Optical glass window with higher light transmittance
  • Smart IR
  • EIS (Electronic Image Stabilization)
  • Ultra 265,H.265, H.264, MJPEG
  • Embedded smart algorithm
  • Triple streams
  • Customized OSD
  • ONVIF Conformance
  • Intelligent temperature control technology
  • More effective heat dissipation system
  • 6 KV surge protection designed for network interface
  • Alarm I/O,Audio I/O
  • AC12V,DC12V,24W
  • IP66, -40°C ~ +65°C
  • PoE (PSE Required)
  • $1269.00

OR

Features

  • 1/2.9" progressive scan CMOS
  • 22X Optical Zoom (5.2~114.4mm)
  • Up to 1920 x 1080 resolution, 30fps
  • Fifth-generation infrared technology, more than150m (492ft) IR distance
  • IR anti-reflection window to increase the infrared transmittance
  • Optical glass window with higher light transmittance
  • Smart IR
  • EIS (Electronic Image Stabilization)
  • Ultra 265,H.265, H.264, MJPEG
  • Embedded smart algorithm
  • Triple streams
  • Customized OSD
  • ONVIF Conformance
  • Intelligent temperature control technology
  • More effective heat dissipation system
  • 6 KV surge protection designed for network interface
  • Alarm I/O,Audio I/O
  • AC12V,DC12V,24W
  • IP66, -40°C ~ +65°C
  • PoE (PSE Required)
More Information
Image Sensor1/2.9" progressive scan, 2.0 megapixel, CMOS
Image Size1920×1080
Electronic ShutterAuto/Manual; shutter time: 1 ~ 1/100000 s
Minimum Illumination

Color: 0.01 lux (F1.5,AGC ON);
B/W: 0 Lux with IR on

Focal Length5.2~ 114.4 mm,AF automatic focusing and motorized zoom lens
Optical Zoom22X
Digital Zoom16X
DORI Distance
LensDetect(m)Observe(m)Recognize(m)Identify(m)
5.2mm83.633.416.78.4
114.4mm1838.6735.4367.7183.9
IR LEDsSmart IR
IR DistanceUP to 150m (492ft)
S/N Ratio>55dB
Angle of ViewH: 54.40°~ 3.44° / V: 39.2° ~1.9° / O: 66.9° ~4.1°
DefogDigital Defog
Wide Dynamic RangeDWDR
OSDYes
Video CompressionUltra 265,H.265, H.264, MJPEG
Video Resolution

2MP / D1

Video Frame Rate

Main Stream: 2MP(1920×1080): Max. 30fps;
Sub Stream: 2MP(1920×1080) : Max. 30fps;
Third Stream: D1 (720×576): Max. 30fps

Day / NightIR-cut filter with auto switch (ICR)
BLC ModeSupported
HLCSupported
ROIUp to 8 areas
Electronic Image Stabilization (EIS)Supported
Digital Noise Reduction2D/3D DNR
Motion DetectionUp to 4 areas
Privacy MaskingUp to 24 areas
Audio CompressionG.711
Audio In1CH: impedance 35 kΩ; amplitude 2 V [p-p]
Audio Out1CH: impedance 600 Ω; amplitude 2 V [p-p]
Sampling Rate8 KHZ
Alarm In1CH
Alarm Out1CH
Ethernet1 x RJ45 10M/100M Base-TX Ethernet
Network ProtocolIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
StorageANR
Storage CardMicro SD, up to 256 GB
Web ViewerIE Browser
MobileiPhone, Android
Pan Range360° (endless)
Pan Speed0.1°/s ~ 240°/s,
Preset speed: 300°/s
Tilt Range-15° ~ +90° (auto reverse)
Tilt Speed0.1° ~ 80°/s Preset speed: 80°/s
Number of Preset1024
PatrolPreset patrol, route patrol, recorded patrol
Home PositionSupported
Auto TrackingTracking the specified target
Power SupplyDC 12V±10%, PoE (PSE Required)
Power Consumption16~30 W
Operating Temperature–40°C ~ +65°C (-40°F ~ 149°F), Humidity:10%~90% RH(non-condensing)
Ingress ProtectionIP66
Dimensions215mm×344mm(8.5” x13.5”)
Weight3kg(6.6lb)
Reset ButtonSupported





Spec Sheet



    • SKU
      IPC6322SR-X22-PC
    • Weight
      6.6 lbs
  • Manufacturer
    Uniview
  • Camera Type
    PTZ
  • Camera Signal
    IP
  • Camera Resolution
    2 Megapixel
  • Lens Size
    5.2~114.4mm
  • Optical Zoom
    Motorized Zoom Lens
  • Shipping Lead Time
    Ships Same Day
  • Infrared Distance
    150 m. or 492 ft.
