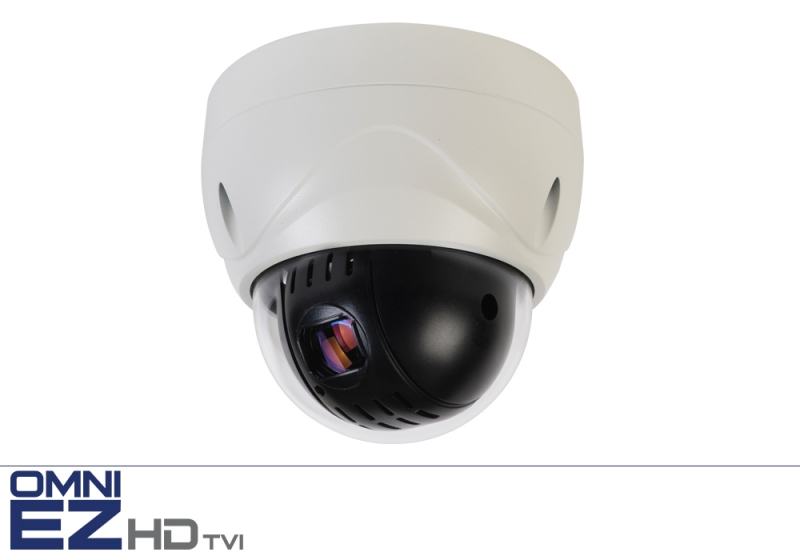

2 Megapixel 1080p HD-TVI PTZ Speed Dome 12x Optical, 10x Digital, IP66, 24VAC
        • 2 Megapixel 1080p HD-TVI PTZ Speed Dome 12x Optical, 10x Digital, IP66, 24VAC
        • 2 Megapixel 1080p HD-TVI PTZ Speed Dome 12x Optical, 10x Digital, IP66, 24VAC

        2 Megapixel 1080p HD-TVI PTZ Speed Dome 12x Optical, 10x Digital, IP66, 24VAC

        KT&C
        SKU: KEZ-c2SR12
        • Superlative HD resolution of 1080p Full HD or 720p HD for amazing image quality and useful digital zoom on live view and playback
        • Field select 1080p30/25 or 720p60/50
        • Operation over ‘almost any’ wire
        • More than 1000 feet on standard RG59 coax
        • More than 1500 feet on RG6
        • More than 500 feet on UTP (one pair from a Cat5e cable, using optional KA-HDBAL passive balun pair).
        • Full time NTSC/PAL selectable analog video output
        • True day/night operation with automatic ICR module
        • Excellent low light sensitivity plus Digital slow shutter (DSS) to improve low light performance *
        • BLC & Electronic WDR functions handle bright and unbalanced lighting conditions
        • Includes 3D and 2D DNR to improve picture clarity while enabling DVRs to improve disk storage utilization
        • Optical zoom magnification of 12X (4.8~57.6mm) for horizontal field of view range from 64.2° ~ 5.9°
        • Multiple focus options: continuous automatic, ‘one touch’ to hold the focus set after movement, and manual
        • Optical 12X zoom plus 10X digital zoom in camera for total zoom ratio of 120X
        • Fast 360°/sec pan speed quickly reaches any preset position
        • Digital auto-flip option to continuously track motion down though the vertical and back up the other side
        • Programmable presets, scan zones, patterns, tours, and ‘smart’ privacy masks, including combinations of functions
        • Presets, tours, scans or patterns can be initiated by 4 alarm inputs or after periods of inactivity
        • Easy to use OSD setup menu plus on-screen data display with flexible screen position and password protection
        • Flexible programming and control Up the Cable or via RS-485 using Pelco-P or Pelco-D protocols
        • SD/analog TV Out allows setup, aim and focus using a standard hand held test monitor
        • Power Source 24VAC with built in power input surge protection
        • Robust environmental performance, operating down to -40 degrees with IP66 weather resistance
        • Available accessory wall, pole, corner, ceiling and roof/parapet mounts for flexible installation

          • 65% less
          Market price:$2300.00 save $1493.00
        • $807.00

        OR
          Camera packaging contents:

        • Superlative HD resolution of 1080p Full HD or 720p HD for amazing image quality and useful digital zoom on live view and playback
        • Field select 1080p30/25 or 720p60/50
        • Operation over ‘almost any’ wire
        • More than 1000 feet on standard RG59 coax
        • More than 1500 feet on RG6
        • More than 500 feet on UTP (one pair from a Cat5e cable, using optional KA-HDBAL passive balun pair).
        • Full time NTSC/PAL selectable analog video output
        • True day/night operation with automatic ICR module
        • Excellent low light sensitivity plus Digital slow shutter (DSS) to improve low light performance *
        • BLC & Electronic WDR functions handle bright and unbalanced lighting conditions
        • Includes 3D and 2D DNR to improve picture clarity while enabling DVRs to improve disk storage utilization
        • Optical zoom magnification of 12X (4.8~57.6mm) for horizontal field of view range from 64.2° ~ 5.9°
        • Multiple focus options: continuous automatic, ‘one touch’ to hold the focus set after movement, and manual
        • Optical 12X zoom plus 10X digital zoom in camera for total zoom ratio of 120X
        • Fast 360°/sec pan speed quickly reaches any preset position
        • Digital auto-flip option to continuously track motion down though the vertical and back up the other side
        • Programmable presets, scan zones, patterns, tours, and ‘smart’ privacy masks, including combinations of functions
        • Presets, tours, scans or patterns can be initiated by 4 alarm inputs or after periods of inactivity
        • Easy to use OSD setup menu plus on-screen data display with flexible screen position and password protection
        • Flexible programming and control Up the Cable or via RS-485 using Pelco-P or Pelco-D protocols
        • SD/analog TV Out allows setup, aim and focus using a standard hand held test monitor
        • Power Source 24VAC with built in power input surge protection
        • Robust environmental performance, operating down to -40 degrees with IP66 weather resistance
        • Available accessory wall, pole, corner, ceiling and roof/parapet mounts for flexible installation



        ENR_Series_NVR_UserManual_V3.3.1_reduced.pdf

        Pickup Device1/2.8” 2.38 megapixel Color Progressive CMOS sensor
        Pixels1944x1224
        Minimum Illumination**DSS Off: 1.0 lux color; 0.5 lux B/W DSS Max: .002 lux color; .001 lux B/W
        Digital Slow ShutterProgrammable Off or 2X~30X; max 4X recommended
        S/N RatioMax. 50dB
        Video Format Main OutputEZHD
        Resolution Main OutputField select HD1080 or HD720
        Video Mode Main OutputField select 1080p30/25; 720p60/50
        Main Output ConnectorBNC-F
        Video Format Test Output700TVL CVBS NTSC/PAL selectable
        Analog Video Output ConnectorBNC-F
        Electronic ShutterAuto/Manual selectable 1/30(25) ~ 1/50000 sec., Flickerless
        Lens Focal Length & Angle of View12X zoom: 4.8mm wide ~ 57.6mm tele (F2.2~2.3) Vertical:37.5deg(wide), 3.3deg(tele) Horizontal: 64.2deg(wide), 5.9deg(tele) Diagonal: 71.7de- g(wide), 6.7deg(tele)
        Digital ZoomUp to 10X; optional activation after full 12X optical zoom; 120X total
        Auto FocusChoose manual, auto or ‘one touch’ (holds focus after initial setting follow- ing movement)
        Pan and Tilt Range and SpeedPan: Speed up to 360°/sec; continuous 360° rotation 180° range (+/- 90°); digital auto flip at bottom for continuous tracking Maximum preset speed 360°/second; manual speed proportional to zoom ratio
        True Day/Night ControlYes (Auto IR cut filter removal); Manual select auto, day, night or EXT
        Digital Wide Dynamic RangeWDR/BLC/HLC selectable
        Brightness1~100
        Auto Gain ControlOff, 2~42dB
        Auto White BalanceATW/Push/Manual/Indoor/Outdoor
        DNR2DNR/3DNR/Auto
        OSD MenuYes (controlled Up the Cable or via RS-485; optional password protection)
        OSD Data DisplaySelect interval and position for optional display of zoom level, camera ID, mode and/or angle
        Image FlipDigital auto flip at when camera tilts thought bottom position selectable on/off
        PresetsUp to 210 positions may be stored; programmable preset speed
        Auto Scan ZonesUp to 8 auto scan zones
        PatternsUp to 6 patterns may be memorized and stored
        ToursUp to 8 tours (consisting of presets, patterns and scans)
        Privacy ZonesUp to 7 ‘smart’ zones that automatically adjust relative position as the camera moves
        Motion DetectionOff/On
        Alarm Inputs4 NO/NC programmable trigger inputs
        Alarm OutputForm “C” relay rated at 12VDC/500mA
        Alarm ActionsGo to preset, pattern, scan or tour; optional programmable duration of 3~60 seconds
        Other ActionsOn inactivity of 1~60 minutes, go to preset position, pattern, scan or tour
        SecurityPassword protection for menu system
        Up the Cable ProtocolsPelco-C, Hik-C (Automatic Protocol Detection) on HD-TVI port
        RS-485 Protocols SupportedPelco-P, Pelco D
        RS-485 Baud Rate2400~38,400
        RS-485 AddressingAddress range 00~255
        Power Supply24VAC (+/- 10% nominal) 2.5A capacity recommended (heater on); 1.5A recommended (heater off)
        Power Consumption~1.1A heater off; ~2A heater on
        Power Input Surge ProtectionBuilt in
        DimensionsØ6.06 x 5.43”(H) (Dome Bubble Ø 4.49) {Ø154 x 138(H)mm (Dome Bubble Ø112)}
        Weight1.5Kg/4.8 pounds
        Operating Temperature-40°C~60°C ; -40°F~140°F (heater on at 32°F +/- 9°F)
        EnvironmentalIP66 weather resistant
        Mounting ProvisionMounts to ceiling; optional wall arm, corner and pole brackets, parapet and pendant mounts
        CertificationsFCC, CE
