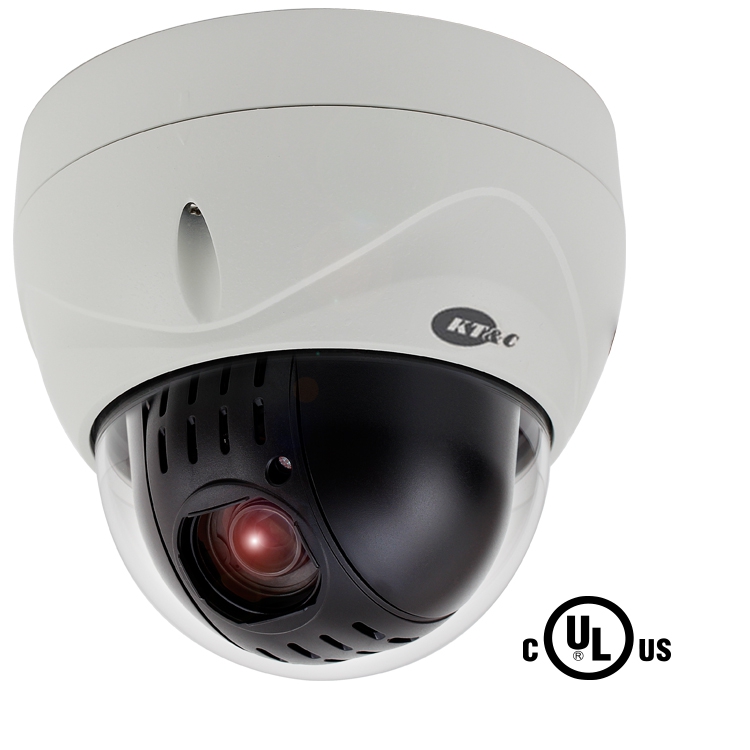

750TVL PTZ Camera
- 1/4″ SONY Double Scan Super HAD CCD II
- 750TVL Horizontal Resolution
- f = 30x Optical Zoom [F1.65 (W) ~ F3.79 (T), 3.5 ~ 104.02 mm]
- 30x Optical Zoom Lens
- True Day & Night with ICR Mechnism
- Min. Illumination of 0.2 Lux
- Extreme Operating temperature down to -40 degrees
- Pan 360° Endless Rotation, Tilt 180° Vector scan
- 210 Preset Positions (except Short-cut command)
- 8 Auto Scan / 8 Pattern / 8 Tours consist of Presets
- 3D DNR / WDR / OSD
- Standard protocols including Pelco-D/P
- IP66 (Weather Resistant)
- AC 24 V Power
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
- Camera packaging contents:
- 1/4″ SONY Double Scan Super HAD CCD II
- 750TVL Horizontal Resolution
- f = 30x Optical Zoom [F1.65 (W) ~ F3.79 (T), 3.5 ~ 104.02 mm]
- 30x Optical Zoom Lens
- True Day & Night with ICR Mechnism
- Min. Illumination of 0.2 Lux
- Extreme Operating temperature down to -40 degrees
- Pan 360° Endless Rotation, Tilt 180° Vector scan
- 210 Preset Positions (except Short-cut command)
- 8 Auto Scan / 8 Pattern / 8 Tours consist of Presets
- 3D DNR / WDR / OSD
- Standard protocols including Pelco-D/P
- IP66 (Weather Resistant)
- AC 24 V Power
| Signal System | NTSC |
| Image Sensor | 1/4″ SONY Double Scan Super HAD CCD II |
| Scanning System | 2:1 Interlace |
| Horizontal Resolution | 750TV Lines |
| Scanning Frequency (H) | 15.734 KHz |
| Scanning Frequency (V) | 59.94 Hz |
| Total Pixels (H x V) | 1028 x 508 |
| Effective Pixels (H x V) | 976 x 494 |
| Synchronization | Internal |
| Lens | 30x Optical Zoom [F1.65 (W) ~ F3.79 (T), 3.5 ~ 104.02 mm] |
| Lens Type | 30x Optical Zoom Lens |
| S/N | More than 50dB (AGC Off, 3DNR on) |
| Gamma | r = 0.45 |
| Min. Illumination | 0.2 Lux (30 IRE@F1.6), 0.001 (DSS), 0.1 Lux (ICR) |
| Shutter Speed | 1/60 ~ 1/100,000 sec |
| Day & Night | True Day & Night with ICR Mechanism |
| Day & Night Function | Auto, Color, B/W |
| IP Rating | IP66 (Weather Resistant) |
| Video Output Level | 1 Vp-p Composite (75 Ω) |
| On-Screen Display (OSD) | Built-in |
| DNR | 3D DNR |
| White Balance | ATW, Indoor, Outdoor, Push Auto, Manual (R Gain, B Gain), AWB |
| Privacy Masking | 15 Zones |
| Mirror | Off, H-Flip, V-Flip, HV-Flip |
| Motion Detection | 4 Zones |
| WDR | On / Off (Level adjustable) |
| Face Detection | On / Off (Level Adjustable, Area Adjustment) |
| Digital Zoom Ratio | 10X |
| Digital Slow Shutter | Off, 2 ~ 128 Field |
| Other Function | 8 Auto Scan include vector scan, 210 Position with camera status, 210 Position with camera status |
| Language Option | English, Chinese, Russian, Spanish, German, Italian, French, Netherlandish |
| Operating Temperature | 14 ˚F ~ 122 ˚F (-10 ˚C ~ 50 ˚C) (without Heater) -40 °F ~ 122 °F (-40 ℃ ~ 50 ℃) (with Heater) |
| Storage Temperature | -4 °F ~ 140 °F (-20 °C ~ 60 °C) |
| Power Supply | AC 24V (±10%), Max. 850mA (without Heater) AC 24V (±10%), Max. 43W (with Heater) |
| External Control | RS-485, PTZ Controller |
| Dimension | Bubble (Φ4.4), Φ6.1 x 5.4 inch (Bubble (Φ112), Φ154 x 138 mm) |
| Weight | 3.3 lbs (1.5 kg) |
