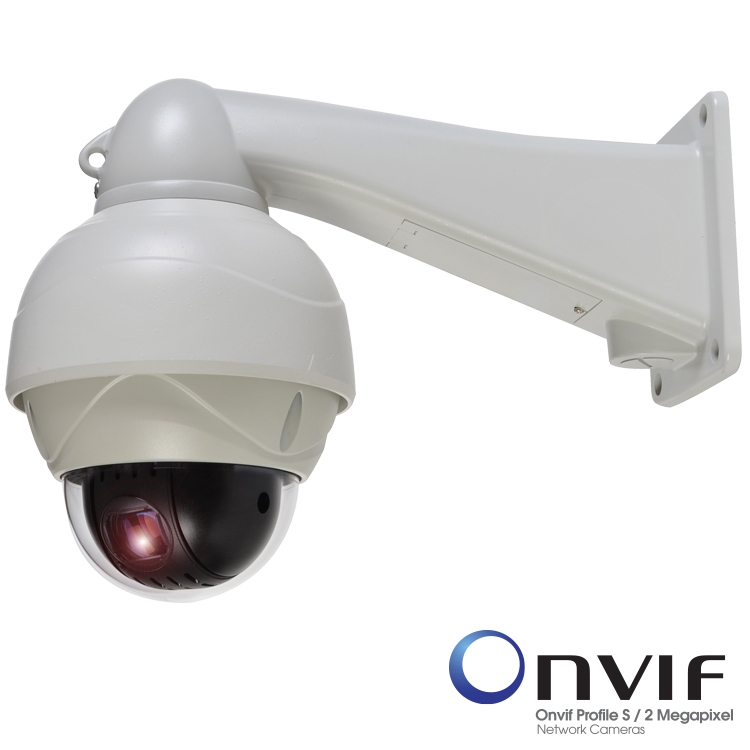

        IP PTZ Camera

        KT&C
        SKU: KNC-SPDNi120HD
        • Member of Onvif
        • 3.27 Megapixel, 1/2.8″ SONY Exmor CMOS
        • f = 12x Optical / 10x Digital zoom (5 ~ 60 mm)
        • 12x Optical Zoom Lens
        • True Day & Night with ICR Mechnism
        • Min. Illumination of 0.1 Lux
        • Extreme Operating temperature down to -40 degrees
        • Pan 360° Endless Rotation, Tilt 180° Vector scan
        • 210 Preset Positions (except Short-cut command)
        • 8 Auto Scan / 8 Pattern / 8 Tour consist of Presets
        • WDR / BLC
        • Standard protocols including Pelco-D/P
        • IP66 (Weather Resistant)
        • AC 24V Power
          • 65% less
          Market price:$4600.00 save $2986.00
        • $1614.00

        OR
          Camera packaging contents:

        • Member of Onvif
        • 3.27 Megapixel, 1/2.8″ SONY Exmor CMOS
        • f = 12x Optical / 10x Digital zoom (5 ~ 60 mm)
        • 12x Optical Zoom Lens
        • True Day & Night with ICR Mechnism
        • Min. Illumination of 0.1 Lux
        • Extreme Operating temperature down to -40 degrees
        • Pan 360° Endless Rotation, Tilt 180° Vector scan
        • 210 Preset Positions (except Short-cut command)
        • 8 Auto Scan / 8 Pattern / 8 Tour consist of Presets
        • WDR / BLC
        • CameraImage Sensor3.27 Megapixel, 1/2.8″ SONY Exmor CMOSTotal Pixel (H x V)2144 x 1588Day & NightTrue Day & Night with ICR MechnismMin. Illumination0.1 Lux / F2.0Shutter Speed1/30 ~ 1/10,000LensFocal Lenght12x Optical / 10x Digital Zoom (5 ~ 60 mm Lens)Lens Type12x Optical Zoom LensVideoMaximum ResolutionH.264 : 1920 x 1080 (16:9) MJPEG : 1280 x 720 (16:9)Frame RateH.264: 30fps / MJPEG: 30fpsCompressionH.264 / MJPEGStreamingDual-Stream at different frame rate and bandwidthDigital Slow Shutter2x ~ 64xImage SettingsBrightness, Contrast, Saturation, Sharpness, White balance, Exposure control, Text and image overlay, Privacy masking, BLCAudioStreamingTwo-way, Full DuplexCompressionG.711, G726Input / OutputExternal Microphone or Line Input / Line OutputNetworkLANEhternet 10/100 Base-T (RJ-45 Type)SecurityMultiple user access levels with password protection, HTTPS (SSL)ProtocolsIPv4, HTTP, TCP, RTSP, RTP, UDP, IGMP, RTCP, SMTP, FTP, ICMP, DHCP, ARP, DNS, DDNS, HTTPS, UPnPOnvif CompliantYesInterfaceOS: Windows XP / Vista / 7 Browser: Internet ExplorerIntelligent VideoVideo Motion DetectionYesAlarm and EventAlarm TriggersIntelligent video, external inputs, manual triggers, network fail, rebootAlarm EventsJPEG image upload via FTP & Email, notification via E-mail, external output activationGeneralProcessorsCPU: ARM 926EJ-SMemoryRAM: 128MB, Flash: 64MBPowerPoE class 4 (IEEE 802.3at Type2) AC 24V 38.5 W (Heater on)InterfaceAnalog Composite Output Power (AC 24V) Input Sensor Input x 1 / Alarm Output x 1 Audio Input x 1 / Audio Output x 1 RS485, Status LEDIP RatingIP66 (Weather Resistant)Operating Temperature-40 ˚F ~ 122 ˚F (-40 ˚C ~ 50 ˚C)DimensionBubble (Φ4.4), Φ6.5 x 13.4 x 10 inch (Bubble (Φ112), Φ166 x 341 x 255 mm)Weight7.7 lbs (3500 g)


          KNC-SPDNi120_SPEC_SHEET.pdf

          KPC-SPDNi120HD.pdf
