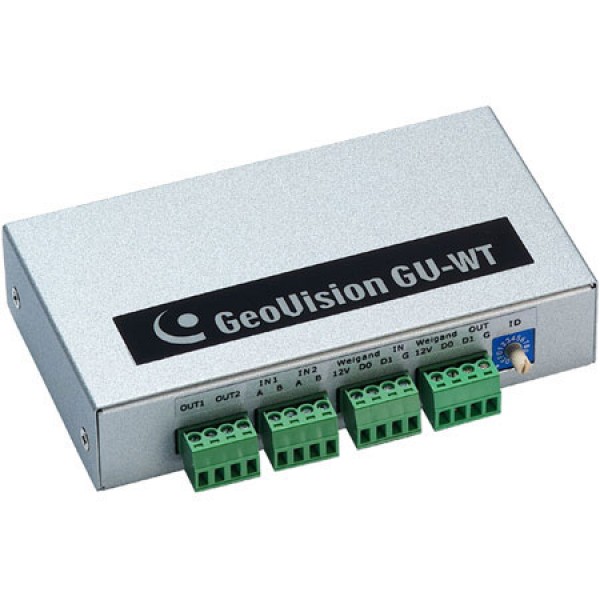

        GV-Wiegand Capture Box (Text overlay for Access Card Information on Video)

        Geovision
        SKU: 55-WT001-000-GV-Wiegand Capture

        GV-Wiegand Capture is a box device that can integrate your current Wiegand access control system into DVR systems manufactured by GeoVision. Through the GV-Wiegand Capture, the photo identification and text data from the access control can be easily combined on the video data from DVR. The GV-Wiegand Capture is ideal for access control, time and attendance, or authorized access management where video data is required. The security can use the higher security level of the combined video data for live monitoring during busy hours, and for recording during off-peak hours.

          • 38% less
          Market price:$160.00 save $60.00
        • $100.00

        OR

        GV-Wiegand Capture is a box device that can integrate your current Wiegand access control system into DVR systems manufactured by GeoVision. Through the GV-Wiegand Capture, the photo identification and text data from the access control can be easily combined on the video data from DVR. The GV-Wiegand Capture is ideal for access control, time and attendance, or authorized access management where video data is required. The security can use the higher security level of the combined video data for live monitoring during busy hours, and for recording during off-peak hours.

        • Model Number: GV-Wiegand Capture Box
        • Manufacturer SKU Number: 55-WT001-000
        • Sales Part Number: 530-WT001-000





        Specifications

        Communication

        RS-232

        DB9 Female

        RS-485

        Terminal Block

        Input

        Input

        2

        Input Signal

        12V Voltage input / dry-connect input

        High State

        9~12V / close

        Low State

        0V / open

        Output

        Relay Output

        2

        Relay Status

        Normal Open

        Relay Capacitance

        3A / VAC125V, 1.5A / VAC250V

        Relay ON Time

        4ms

        Relay OFF Time

        4ms

        Wiegand

        Input Connector

        12V, D0, D1, GND

        Output Connector

        12V, D0, D1, GND

        Format

        Wiegand 26 Bits~40 Bits

        DC IN

        DC 12V, 1A

        Environmental Conditions

        Operation Temperature

        0~55°C (32~104°F)

        Humidity

        5%~95% (non-condensing)

        Dimensions

        120mm (W) x 68mm (H) x 26mm (D)
