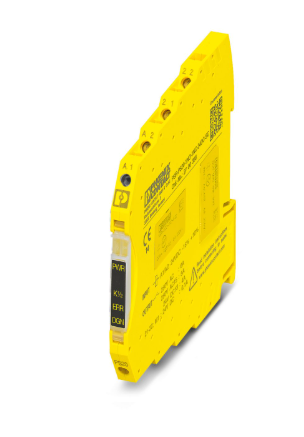

PSR-PS20-1NO-1NC-24DC-SC - Coupling relay
SKU: PSR-PS20-1NO-1NC-24DC-SC
Features
- Corrosion protection through protective coating on the PCB
- Up to SIL 3 in accordance with IEC 61508
- Couples digital output signals from failsafe controllers to I/O devices (valves, etc.) for electrical isolation and power adaptation
- 1 enabling current path, 1 digital signal output, 1 diagnostic current path
- Long service life thanks to filtering of controller test pulses
- Low housing width of just 6.8 mm
- Approved for Class I, Zone 2 applications
- Easy proof test according to IEC 61508 thanks to integrated signal contact
- Forcibly guided contacts according to EN 50205
- Up to SIL 3 according to IEC 61508
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
Tech Specifications
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
| Width | 6.8 mm |
| Height | 93.1 mm |
| Depth | 102.5 mm |
| Ambient temperature (operation) | -40 °C ... 70 °C (observe derating) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Max. permissible relative humidity (operation) | 75 % (on average, 85% infrequently, non-condensing) |
| Max. permissible humidity (storage/transport) | 75 % (on average, 85% infrequently, non-condensing) |
| Maximum altitude | = 2000 m (Above sea level) |
| Rated control circuit supply voltage U<sub>S</sub> | 24 V DC -15 % / +10 % |
| Rated control supply current I<sub>S</sub> | typ. 45 mA |
| Power consumption at U<sub>S</sub> | typ. 1.08 W |
| Inrush current | 400 mA (?t < 10 µs at Us) |
| Inrush current | 2.5 A (?t < 20 µs at UD) |
| Typ. starting time with U<sub>s</sub> | < 100 ms (when controlled via A1) |
| Typical release time | < 35 ms (when controlled via A1) |
| Recovery time | 500 ms |
| Operating voltage display | 1 x yellow LED |
| Status display | 2 x green LEDs |
| Protective circuit | Surge protection Suppressor diode |
| Protective circuit | Polarity reversal protection for rated control circuit supply voltage and diagnostic supply voltage |
| Maximum switching frequency | 1 Hz |
| Filter time | max. 2 ms (at A1-A2; test pulse width) |
| Filter time | = 100 ms (at A1-A2; test pulse rate) |
| Contact type | 1 enabling current path |
| Contact type | 1 confirmation current path |
| Contact material | AgSnO2 (enabling current path) |
| Contact material | AgCuNi, + Au (confirmation current path) |
| Maximum switching voltage | 250 V AC/DC (N/O contact) |
| Maximum switching voltage | 26.4 V DC (N/C contact) |
| Minimum switching voltage | 12 V AC/DC (N/O contact) |
| Minimum switching voltage | 20.4 V DC (N/C contact) |
| Limiting continuous current | 6 A (N/O contact, pay attention to the derating) |
| Limiting continuous current | 100 mA (N/C contact) |
| Maximum inrush current | 6 A (N/O contact) |
| Maximum inrush current | 100 mA (N/C contact) |
| Inrush current, minimum | 3 mA (N/O contact) |
| Inrush current, minimum | 1 mA (N/C contact) |
| Sq. Total current | 36 A2 (observe derating) |
| Switching capacity | min. 60 mW |
| Mechanical service life | 10 x 106 cycles |
| Output fuse | 6 A gL/gG (N/O contact) |
| Output fuse | 4 A gL/gG (for low-demand applications) |
| Output fuse | 150 mA fast blow (Confirmation current path) |
| Number of outputs | 1 (digital, PNP) |
| Voltage | 22 V DC (UD - 2 V) |
| Current | max. 100 mA |
| Maximum inrush current | 500 mA (?t = 1 ms at Us) |
| Short-circuit protection | no |
| Output fuse | 150 mA fast blow (signal output) |
| Relay type | Electromechanical relay with forcibly guided contacts in accordance with IEC/EN 61810-3 (EN 50205) |
| Nominal operating mode | 100% operating factor |
