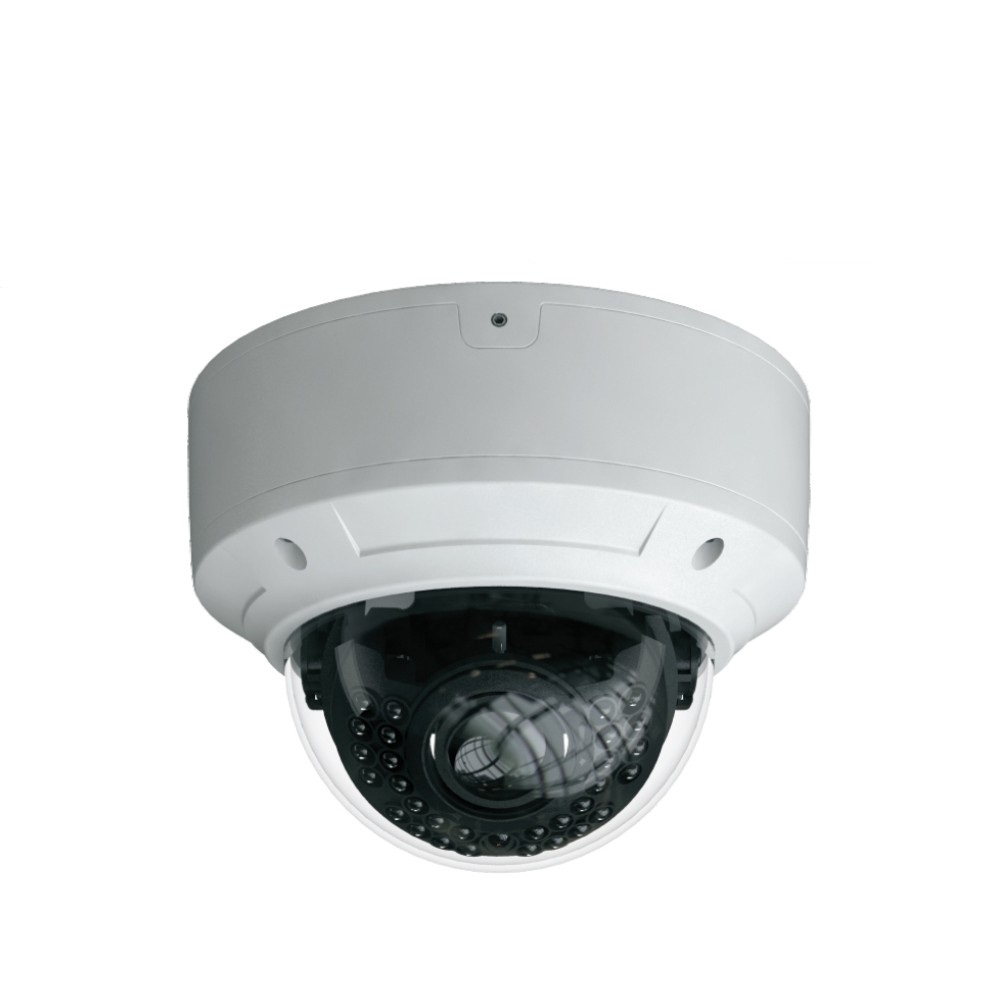

4MP, H.265, 3.3-12 mm, 120 FT, WDR, IP66
SKU: WECVIC-4OV31
- 4MP(2048×1536)real time encode,resolution 2048x1536
- ICR infrared cut filter removal for day/night function
- 20-30m IR night vision range
- Support 3D noise reduction, digital WDR
- Physical WDR optional
- Support ROI
- Support CVBS video out, dual way audio、Support POE power supply
- Support smart phone,Tablet/iPad, remote surveillance
- Support P2P
- IP66 & IK10 ingress protection
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
- 4MP(2048×1536)real time encode,resolution 2048x1536
- ICR infrared cut filter removal for day/night function
- 20-30m IR night vision range
- Support 3D noise reduction, digital WDR
- Physical WDR optional
- Support ROI
- Support CVBS video out, dual way audio、Support POE power supply
- Support smart phone,Tablet/iPad, remote surveillance
- Support P2P
- IP66 & IK10 ingress protection
Model Specifications | VIC-4OV31 |
Camera | |
Image Sensor | 1 / 3 "CMOS |
Image Size | 2688 x 1520 |
Electronic Shutter | 1 /25s~ 1 /100000s |
Auto Iris | Fixed Iris |
Min. Illumination | 0.05 lux @F1.2, AGC ON; 0 lux with IR |
Lens | 3.3 ~ 12 mm @F1.4, angle of view : 80° ~ 38° |
Lens Mount | 014 |
Day & Night | ICR |
Wide Dynamic Range | 120dB |
BLC | Yes |
HLC | Yes |
Defogging | Yes |
Digital NR | 2D/3D DNR |
Angle Adjustment | Pan : 0°~360°, Tilt : 0°~77°, Rotation : 0°~360° |
Image | |
Video Compression | H.265 / H.264 / MJPEG |
H.265 Compression Standard | Main Profile @Leve4.1 High Tier |
Resolution | 4MP( 2592x1520 ),2K( 2560x1440 ),3MP( 2304x1296), 1080P( 1920x1080), 720P( 1280x720), D1, CIF, 480x240 |
Main Stream | 60Hz : 4MP ( 1 ~ 30fps ) / 2K ( 1 ~ 30fps ) / 3MP ( 1 ~ 30fps ) / 1080P ( 1 ~ 30fps ) / 720P ( 1 ~ 30fps ) 50Hz : 4MP ( 1 ~ 25fps ) / 2K ( 1 ~ 25fps ) / 3MP ( 1 ~ 25fps ) / 1080P ( 1 ~ 25fps ) / 720P ( 1 ~ 25fps ) |
Bit Rate | 64 Kbps ~ 10 Mbps |
Encode Mode | VBR/CBR |
Quality | Five levels under VBR; Freely adjustable under CBR |
Image Settings | ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser |
Audio Compression | G711A/U |
ROI | Each ROI to be configured separately |
Interfaces | |
Network | RJ45 |
Audio | MIC IN x 1, MIC OUT x 1 |
Video Output | CVBS video output ( BNC x 1) |
Storage Card | Support TF card, up to 128GB |
RS485 | Yes |
Alarm Input | 1 CH |
Alarm Output | 1 CH |
Functions | |
Remote Monitoring | IE browsing,CMS remote control |
Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
Network Protocol | TCP / IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP |
Interface Protocol | ONVIF, GB-T/28181-2011 |
Storage | TF card local storage, network remote storage |
Smart Alarm | Motion alarm, sensor alarm |
PTZ | RS485 x 1 |
PoE | Yes |
IR Distance | 20 ~ 30 m |
Water-proof | IP66 |
Others | |
Power Supply | DC 12V / PoE |
Power Consumption | < 2.5W |
IR Consumption ON | < 5W |
Operating Environment | -20 °C ~ 50 °C,10 % ~ 90 % humidity |
Dimensions ( mm ) | Φ150 x114 |
Weight ( net ) | 1030g |
Installation | Pendent mounting ( Wall mounting available with the junction box and bracket ) |
