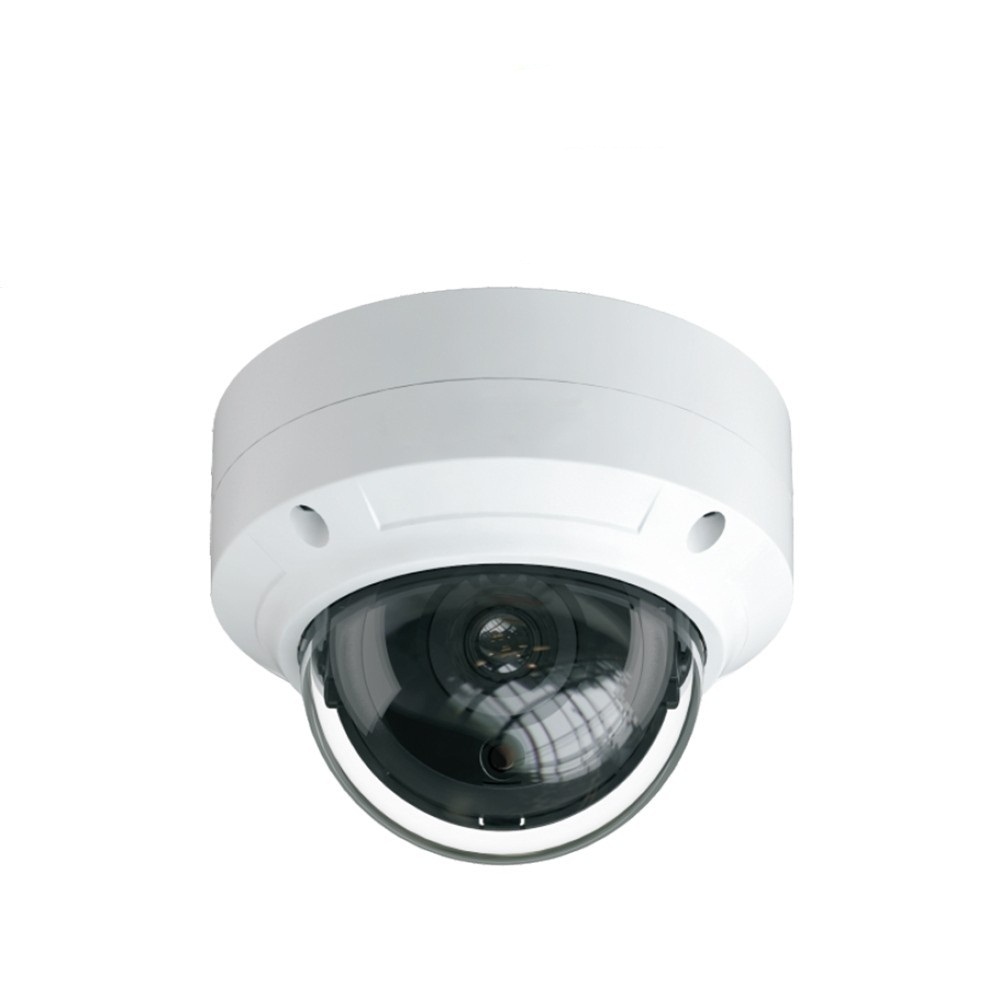

8MP 30fps H.265 3.6mm fixed lens vandal dome,
-H.265 main profile video compression technology, high compression ratio, stable stream control
-8MP ( 3840 x 2160 ) full real •time coding
-Max resolution: 3840 x 2160
-ICR auto switch, true day / night
-10 ~ 20m IR night view distance
-3D DNR, digital WDR
-Smart analysis including object removal, line crossing detection and intrusion detection, etc.
-Support defogging, HLC, BLC, digital image stabilization and defect correction to meet different situations
-8 ROI coding
-Support local CVBS video output and one-way audio
-Support PoE power supply
-Support smart phone, iPad, remote monitoring
-Support P2P
-IP66 & IK10 ingress protection
-Support three streams
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
-H.265 main profile video compression technology, high compression ratio, stable stream control
-8MP ( 3840 x 2160 ) full real •time coding
-Max resolution: 3840 x 2160
-ICR auto switch, true day / night
-10 ~ 20m IR night view distance
-3D DNR, digital WDR
-Smart analysis including object removal, line crossing detection and intrusion detection, etc.
-Support defogging, HLC, BLC, digital image stabilization and defect correction to meet different situations
-8 ROI coding
-Support local CVBS video output and one-way audio
-Support PoE power supply
-Support smart phone, iPad, remote monitoring
-Support P2P
-IP66 & IK10 ingress protection
-Support three streams
| Camera | |
| Image Sensor | 1 / 2.5 "CMOS |
| Image Size | 3840 x 2160 |
| Electronic Shutter | 1 / 25s~ 1 /100000s |
| Iris Type | Fixed Iris |
| Min. Illumination | 0.01 lux @F1.2, AGC ON; 0 lux with IR |
| Lens | 3.6 mm @F1.6, horizontal field of view : 87.7° |
| Lens Mount | M12 |
| Day & Night | ICR |
| Wide Dynamic Range | Digital WDR |
| BLC | Yes |
| HLC | Yes |
| Defogging | Yes |
| Digital NR | 2D/3D DNR |
| Angle Adjustment | Pan : 0°~240°, Tilt : 0°~68°, Rotation : 0°~220° |
| Image | |
| Video Compression | H.265 MP； H.264 BP / MP / HP； MJPEG |
| Resolution | 8MP ( 3840x2160 ), 1080P ( 1920x1080 ), 720P ( 1280x720 ), D1, CIF, 480x240 |
| Main Stream | 60Hz : 8MP ( 1 ~ 30fps ) / 1080P ( 1 ~ 30fps ) / 720P ( 1 ~ 30fps ) 50Hz : 8MP ( 1 ~ 25fps ) / 1080P ( 1 ~ 25fps ) / 720P ( 1 ~ 25fps ) |
| Bit Rate | 64 Kbps ~ 16 Mbps |
| Bit Rate Type | VBR/CBR |
| Quality | Five levels under VBR; Freely adjustable under CBR |
| Image Settings | ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser |
| Audio Compression | G711A/U |
| ROI | Each ROI to be configured separately |
| Interfaces | |
| Network | RJ45 x 1, 10M / 1 00M self-adaption |
| Audio | MIC IN x1 |
| Video Output | CVBS video output ( BNC x 1) |
| Functions | |
| Remote Monitoring | IE browsing,CMS remote control |
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
| Network Protocol | TCP / IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP |
| Interface Protocol | ONVIF, GB-T/28181-2011 |
| Storage | Network remote storage |
| Smart Alarm | Motion alarm |
| Smart Analysis | Object removal detection, line crossing detection and intrusion detection, etc. |
| Po匚 | Yes |
| IR Distance | 10 ~ 20 m |
| Ingress Protection | IP66, IK10 |
| Others | |
| Power Supply | DC12V / PoE |
| Power Consumption | < 6W |
| IR Consumption ON | < 5W |
| Operating Environment | -20 °C ~ 50 °C,10 % ~ 90 % relative humidity |
| Dimensions ( mm ) | Φ117 x 90 |
| Weight ( net ) | 602g |
| Installation | Ceiling mounting ( Wall mounting available with the junction box |
