Send Snapshot via FTP (DVR)


FTP/FTP Snapshot Setup

How To Setup FTP Snapshot

Please Note You must have an FTP currently set up for this to work.

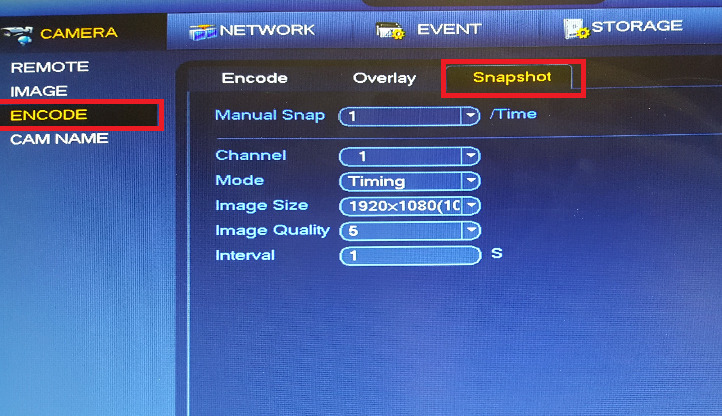

Step 1. From the Main Menu Select Camera > Encode > Snapshot


Step 2. Select Manual Snap Time. This selection will determine how many snapshots are taken at a time.> Select Channel you want snapshot enabled for > Select Mode Trigger or Timing. Trigger is for events such as motion detect or alarm. You can use timing to set periods for which day of the week and or time you want to snapshot > Select image size > select image quality > select interval > Select "Apply" > Select "OK"

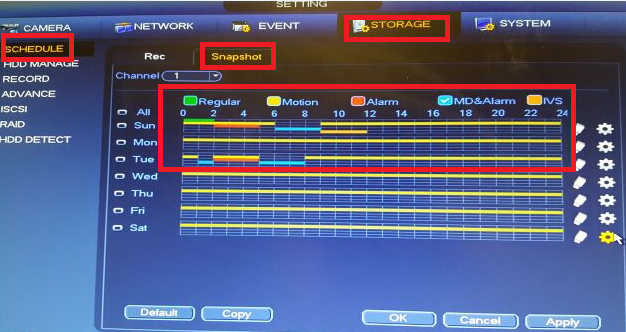

• For Timing Go to the Storage tab > Select Schedule Select Snapshot > Choose which type of event snap shot such as motion, alarm and or IVS if model has IVS capabilities. > Set schedule for which event for the periods, days and hours you wany snapshots set for.

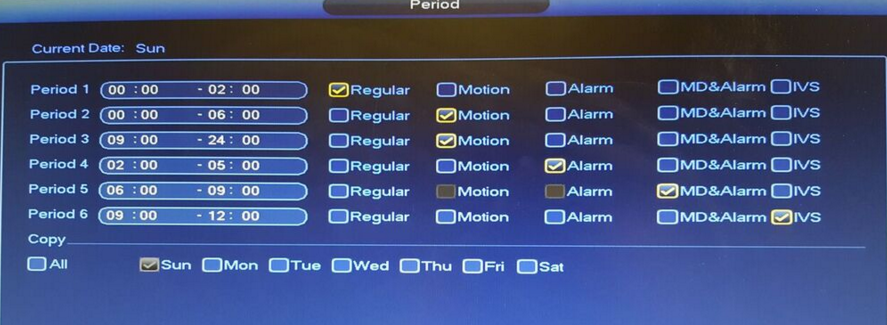

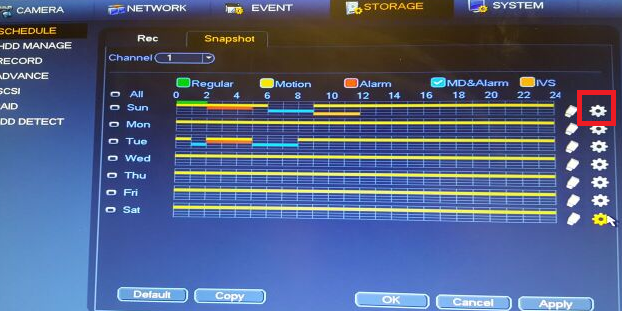

• You can also set the schedule by selecting the settings icon.

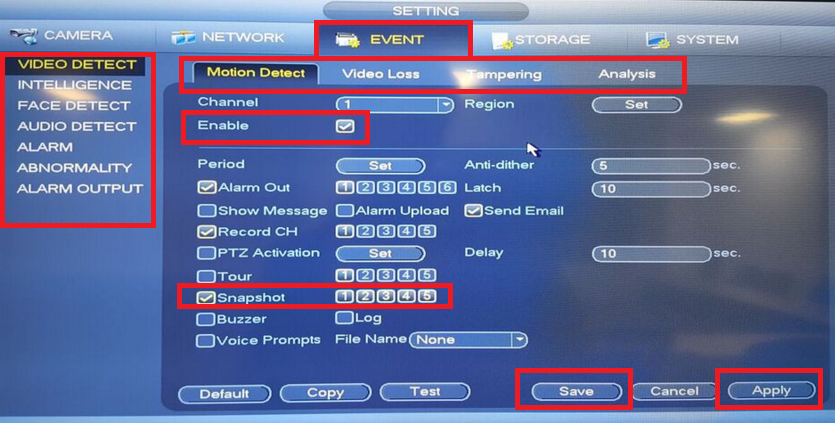

For Trigger Go to Event tab > Choose event type > Check Enable > Check Snapshot and channels > Repeat process for the different types of events > Apply > Save

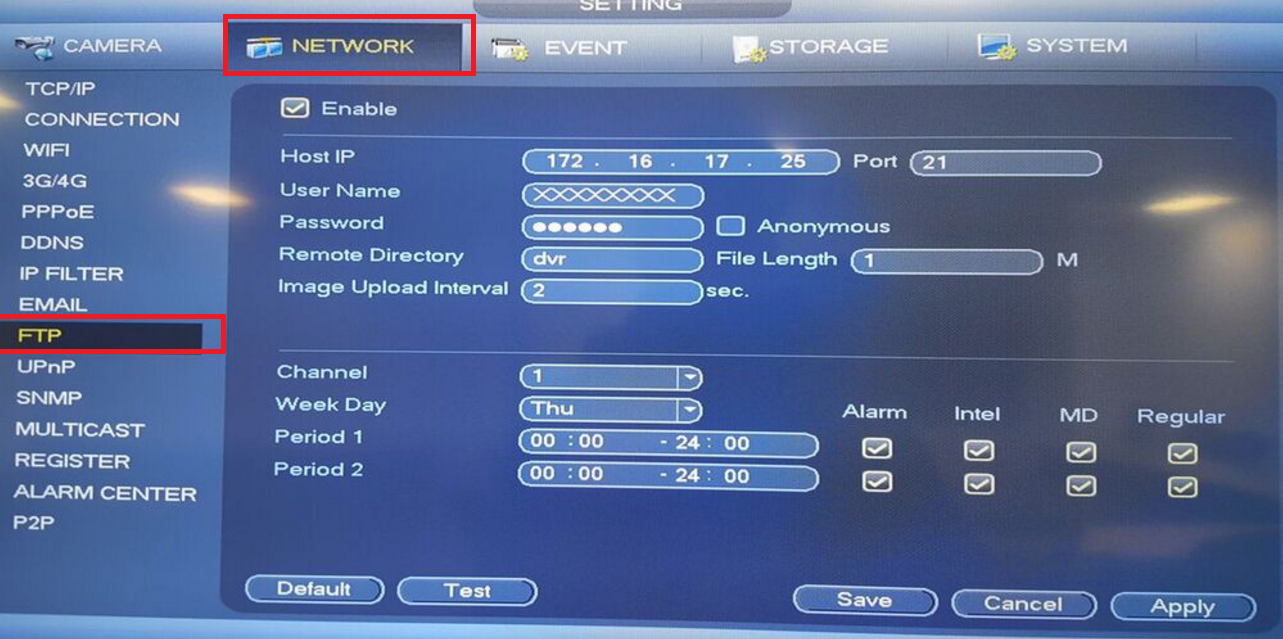

Step 3. Select Network Tab > Select FTP

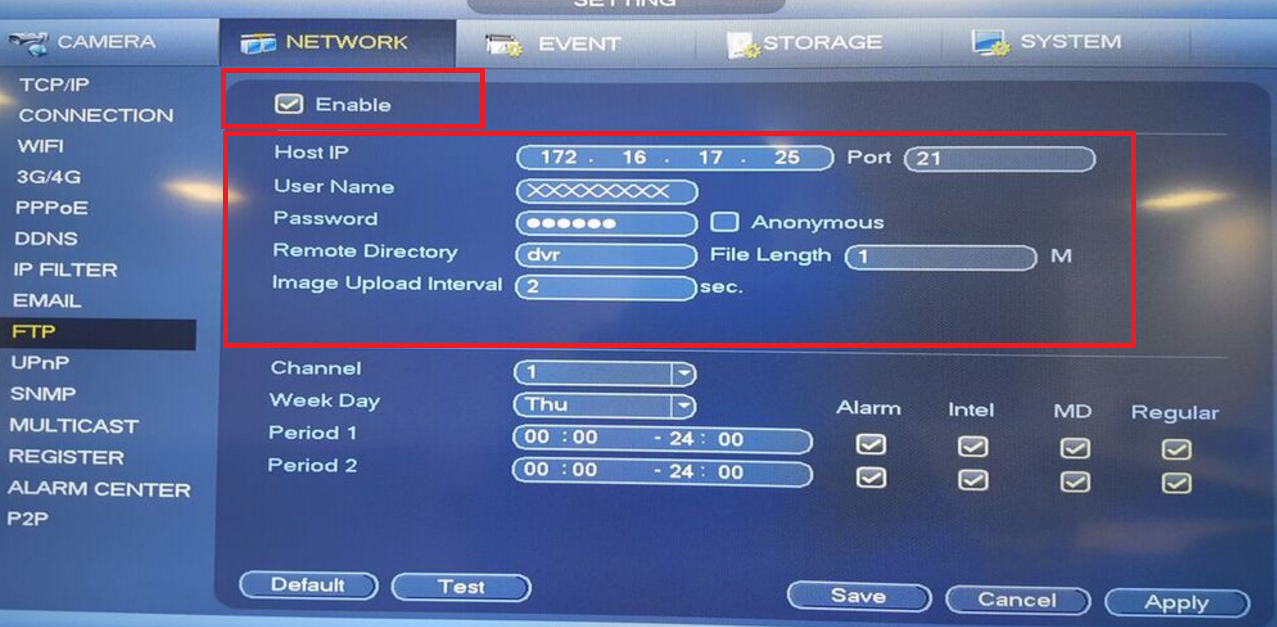

Step 4. Check Enable > FTP Server address > Input Username > Input Password

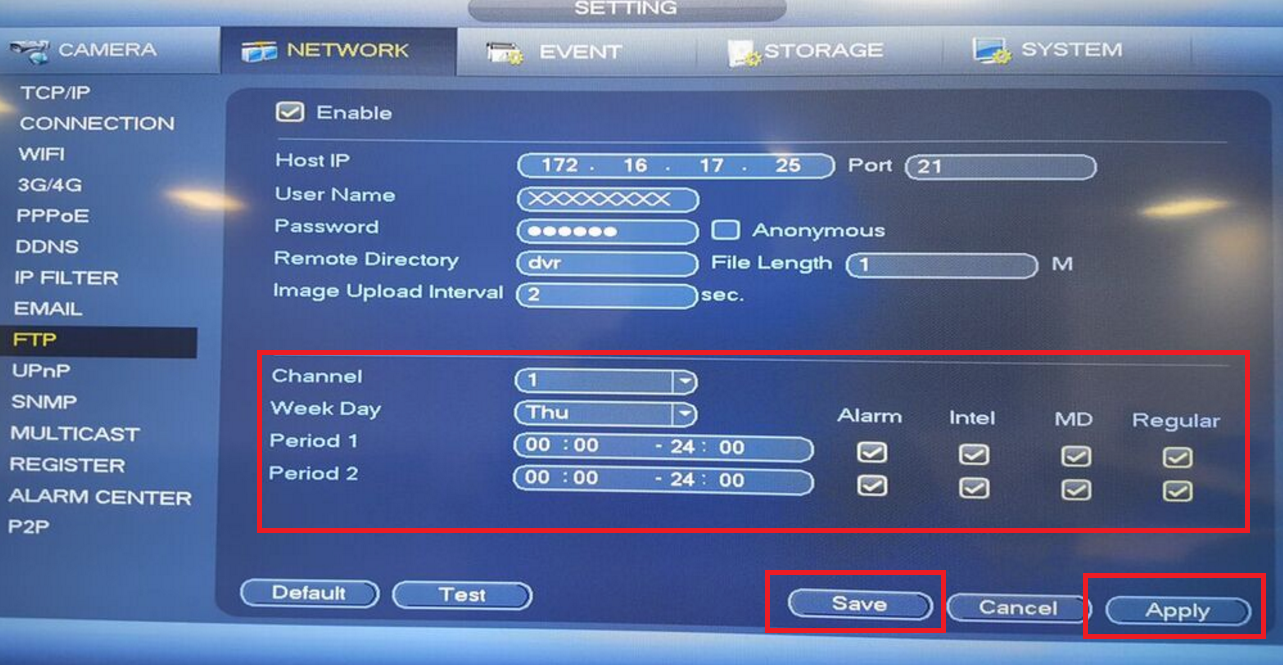

Step 5.Select Channel or all channels > Select Day or all Days > Input period times > Check off event types such as Alarm or Intel > Click "Apply" > Click "Save"
