Setup RAID

• EVS device powered on, set up and connected to the network
• Hard drive(s) installed into EVS
• Computer with network access
• IP address of EVS device

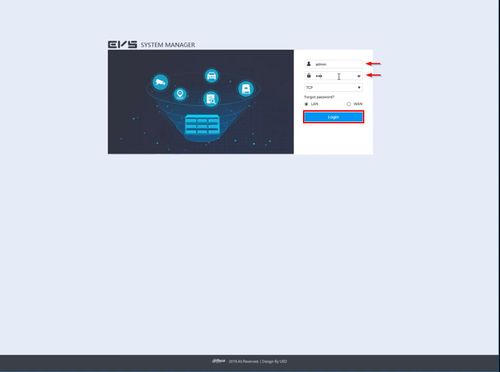

1. Log into the EVS System Manager by typing the IP in to a web browser

Enter the Username and Password and click Login

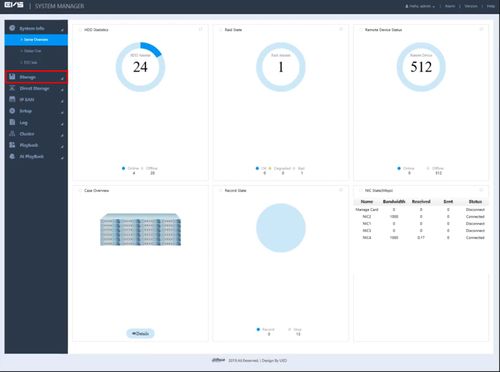

2. Click Storage

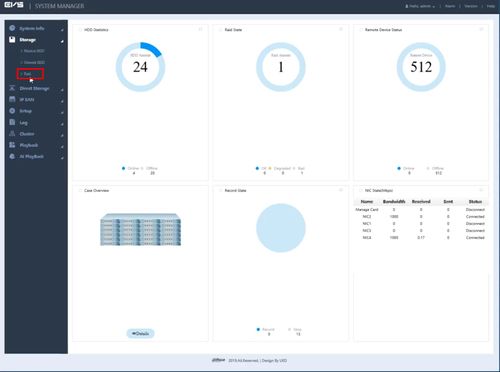

3. Click Raid

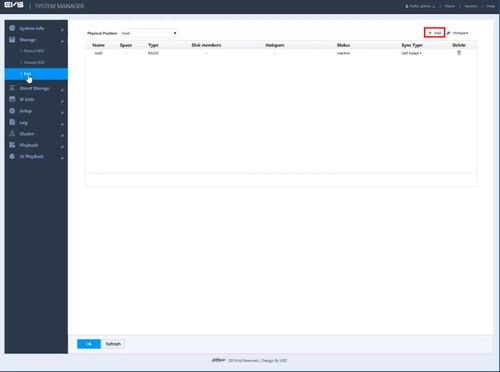

4. Click '+ Add' to create a new RAID

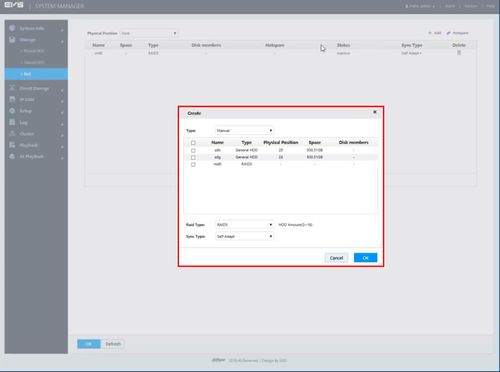

5. The Create RAID window will appear

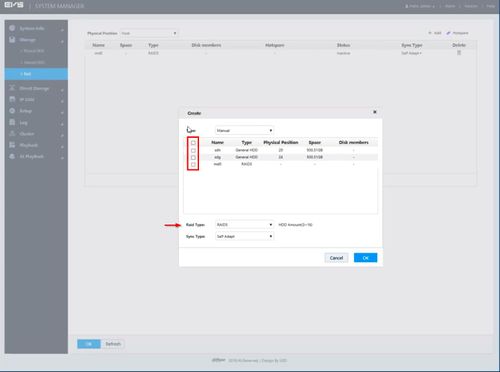

6. Use the checkbox next to each hard drive to select which to include in the RAID

Use the drop-down box to select the RAID type

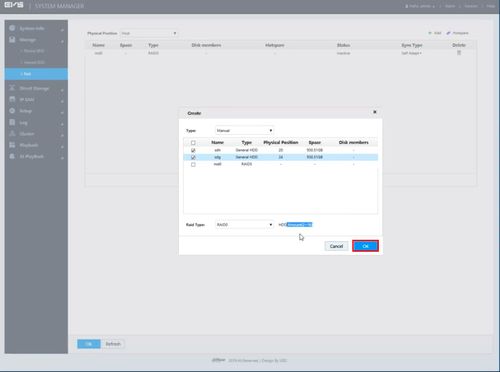

7. Click OK once all setting have been entered

8. A pop up will appear to confirm that data will be cleared on any Hard Drives being added to the RAID

Click OK

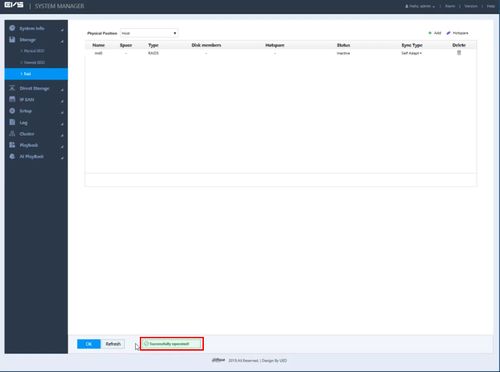

9. A system message will confirm a successful Format

10. Click Refresh

The RAID window will be updated with the new RAID
