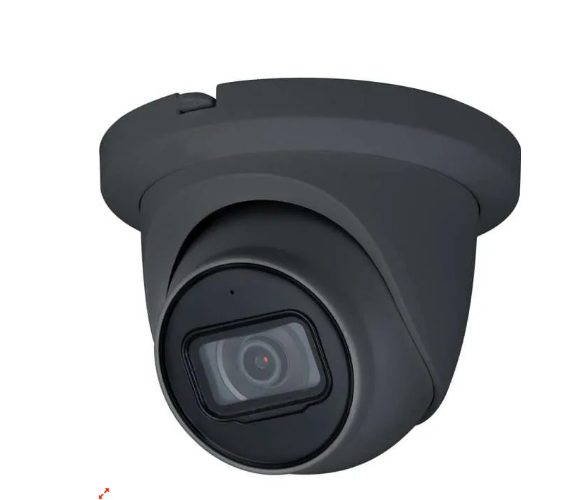

IMAXCAMPRO-4MP Lite AI IR Fixed Focal Eyeball Network Camera

iMaxCamPro
SKU: AMX-3I341TM-IRAS/28

Fixed Turret, 1/2.7", 4MP@30fps, 2.8mm, IR(164ft), WDR, starlight, build-in mic, VCA, SMD+, SD Slot







    • 33% less
    Market price:$246.00 save $82.00
  • $164.00

OR




4MP Lite AI IR Fixed Focal Eyeball Network Camera | HNC3I341TM-IRAS/28

Fixed Turret, 1/2.7", 4MP@30fps, 2.8mm, IR(164ft), WDR, starlight, build-in mic, VCA, SMD+, SD Slot

Features

  • 4MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
  • Outputs max. 4MP (2688 × 1520)@30 fps
  • H.265 coding, high compression ration, low bit rate
  • Built-in IR LED, Max IR distance: 50 m
  • ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
  • Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
  • Intelligent detection: Intrusion, tripwire (Recognition of vehicle and human)
  • Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal access, voltage detection
  • Max. 256 GB SD card
  • 12V DC/POE power support
  • IP67 protection
  • SMD
More Information
Image Sensor1/3” CMOS
Image Size2688(H) x1520(V)
RAM/ROM128 MB/512 MB
Electronic ShutterAuto/Manual, 1/3s~1/100000s
Minimum Illumination

0.005 Lux@F1.6

IR LEDs2
Smart IRSupport
IR Distance50 m (164.0 ft)
IR On/Off ControlAuto/Manual
Focal Length2.8mm
Angle of ViewHorizonal: 102.0° Vertical: 55.0° Diagonal: 121.0°
Max. ApertureF1.6
Close Focus Distance0.9 m (2.95 ft)
DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8mm

56 m
(183.73 ft)

22.4 m
(73.49 ft)

11.2 m
(36.75 ft)

5.6 m
(18.37 ft)

Pan / Tilt / RotationPan:0° ~360° ;Tilt:0° ~65° ;Rotation:0° ~360°
Video CompressionH.265; H.264; H.264H; H.264B; MJPEG
Streaming Capability3 Streams
Video Resolution

4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Video Frame Rate

Main stream (2688 × 1520@1–25/30 fps)
Sub stream (704 × 576@1–25/30 fps)
Third stream (1280 × 720@1–25/30 fps)



Video Bitrate

H.264: 3 Kbps–8192 Kbps
H.265: 3 Kbps–8192 Kbps

Day / NightICR auto switch
Wide Dynamic Range120 dB
BLC ModeYes
HLCYes
White BalanceAuto/natural/street lamp/outdoor/manual/regional custom
Gain ControlAuto/Manual
Digital Noise Reduction3D DNR
Motion DetectionDisable/Enable (4 areas, rectangle)
Region of InterestYes (4 areas)
Flip0°/90°/180°/270°
MirrorYes
Privacy Masking4 areas
Audio CompressionG.711a; G.711Mu; G726; AAC
Audio InBuild-in Mic
General Function

Work together with Smart NVR to perform refine the intelligent search, event extraction and merging to event videos

AI Perimeter ProtectionTripwire; intrusion (Recognition of human and vehicle)
EthernetRJ-45 (10/100Base-T)
Network ProtocolHTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; SNMP; QoS; UPnP; NTP
Network InteroperabilityONVIF (Profile S/Profile G); CGI; P2P
Network Max. Users20 Users
StorageNAS Local PC for instant recording
Storage CardMicro SD card (max. 256 GB)
Web ViewerIE, Chrome, Firefox
Management SoftwareNVR; DSS; DMSS; IVSS
MobileIOS, Android
CertificationsCE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Power Supply12V DC/POE
Power Consumption< 7.5W
Operating Temperature-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Storage Temperature-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress ProtectionIP67
Dimensions101 mm × Φ110 mm (4.0" × Φ4.3")
WeightNet Weight 378 g (0.8 lb) Gross Weight 523 g (1.2 lb)

Downloads

    • SKU
      AMX-3I341TM-IRAS/28
    • Weight
      1.19 lbs
  • Manufacturer
    iMaxCamPro
  • Camera Resolution
    4 Megapixel
  • Remote Login Support
    No Login Support Needed, FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
