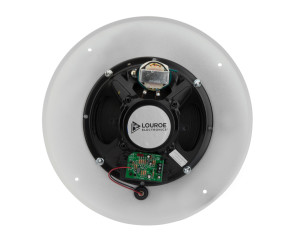

Louroe TLI Bi-Directional Speaker Microphone without Housing
        • Louroe TLI Bi-Directional Speaker Microphone without Housing
        • Louroe TLI Bi-Directional Speaker Microphone without Housing

        Louroe TLI Bi-Directional Speaker Microphone without Housing

        SKU: LE-080
        Louroe Electronics
        SKU: LE-080
        • Speaker microphone combination
        • No enclosure designed for custom applications
        • Omni-directional microphone, within 30′ diameter
        • 8″ Speaker – 15W power handling
        • Line Level Output (0dBV) from Microphone
          • 33% less
          Market price:$286.44 save $93.66
        • $192.78

        OR
        • Speaker microphone combination
        • No enclosure designed for custom applications
        • Omni-directional microphone, within 30′ diameter
        • 8″ Speaker – 15W power handling
        • Line Level Output (0dBV) from Microphone
        • Omni-directional microphone and 8" speaker
        • May be installed up to 1000’ from the Louroe Base Station
        • Highly sensitive microphone
        • Moisture resistant resin impregnated cloth speaker cone
        • Microphone pre-amp contains a sensitivity switch for lowering gain
        TLI is a speaker microphone unit without any housing for custom applications. For a grill baffle, use model BR-8WS. For surface ceiling, request ring MR-8.

        The Model TLI Series of speaker/microphones are two-way talk/listen remote stations consisting of an electret condenser microphone with pre-amp for line level output and 8” speaker. As a system, the TLI Series provide both listen and talkback capabilities between the remote zone and the Louroe base station. There are five configurations in which Model TLI can be installed:

        Using VRSC Housing for surface mounting to a wall or ceiling (industrial application) Model TLI-VR-SQ Surface mount vandal resistant

        Using ERD-8 Backbox and BR-8WS/BR-8VP Grill Model TLI-CF (BR-8WS) and TLI-VR-F (BR-8VP Vandal Resistant Grill)

        Using MR-8 Mounting Ring and BR-8WS Grill for surface mounting on a ceiling Model TLI-CS.

        Dimensions:
        Speaker Microphone Unit- 8″ Diag. x 2.625″ D

        APPLICATION
        In operation, the TLI Series of speaker/microphones provide hands-free LISTEN and TALKBACK capabilities with the LOUROE Base Station:
        • Hospital Therapy Labs
        • Cardio Cath Labs
        • Lobby Entrances
        • Observation Rooms
        • Corporate Training Sessions
        • Municipal Buildings

        SPECIFICATIONS (MICROPHONE)
        Sensitivity-45 dBV/Pa 1 Pa = 94 dB SPL
        Frequency Response50 Hz to 15 kHz
        OutputLine Level (0 dBV, 600W @ 1kHz)
        Current Drain10mA
        Supply Voltage12 Vdc

        SPECIFICATIONS (Speaker)
        Power rating15W
        Input70.7V constant
        Frequency response65 Hz to 17 kHz
        Voice coil impedance8W
        Speaker size8”

        SPECIFICATIONS (Mechanical)
        TLI (No housing)8” Dia x 2 5/8” D
        TLI-CS/TLI-CF/TLI-VR-F Faceplate12 7/8” Dia x 2 3/4” D
        with Speaker and microphone
        ERD-8 (Backbox for TLI-CF)12 1/4” Dia x 4” D
        MR-8 (Mounting ring for TLI-CS)12 3/8” Dia x 3” D
        TLI-VR-SQ13” H x 11” W x 4” D
        TLI (No housing) Weight1 lb 11 oz
        Shipping Weight4 lbs
        TLI-CS Weight2 lbs 10 oz
        TLI-CS Shipping Weight7 lbs
        TLI-CF Weight2 lbs
        TLI-CF Shipping Weight6 lbs
        TLI-VR-F Weight3 lbs x 10 oz
        TLI-VR-F Shipping Weigh8 lbs
        TLI-VR-SQ Weight5 lbs 14 oz
        TLI-VR-SQ Shipping Weight10 lbs
