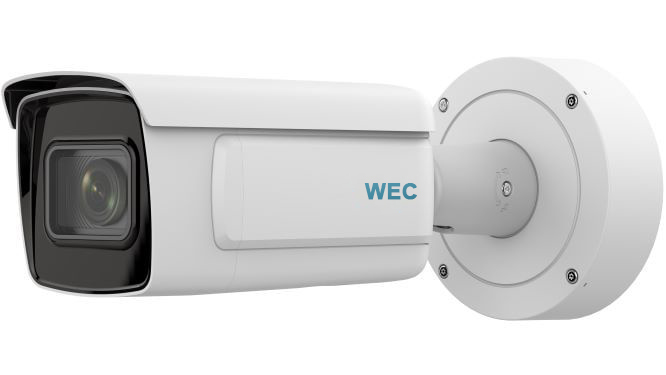

License Plate Recognition Camera 2MP Bullet Network | SIPSL2TAP/MZ2812

Worldeyecam
SKU: WECSIPSL2TAP/MZ2812
License Plate Recognition (LPR) IP Bullet Security Camera, 2MP@60FPS, 2.8mm - 12mm Motorized lens, 1/1.8'' CMOS, IR Range UP to 164ft, True WDR, Starlight, video content analytics (VCA), LPR, Alarm, SD Slot 256GB. UL Listed professional surveillance products.

Remote viewing from your mobile with ENS Security. you can quickly and easily view your security system remotely through your smartphone, tablet, or PC. free download app and no monthly fees.

Features
  • 1/1.8” Progressive Scan CMOS
  • 1920 × 1080 @ 30fps
  • Color: 0.002 Lux @ (F1.2, AGC ON)
  • H.265, H.265+, H.264, H.264+
  • 140dB WDR
  • 3D DNR
  • Alarm I/O
  • IP67, IK10
  • 1 RS-485 interface
  • IR range up to 50 m (2.8 to 8 mm)
  • Five defined streams and up to five custom streams
  • 6 behavior analyses, 2 exception detection
  • License Plate Recognition
  • Supports alarms for listed license plate in the blocklist and allow list
  • Built-in microSD/SDHC/SDXC card slot, up to 256 GB



LICENSE PLATE RECOGNITION TECHNOLOGY

What is License Plate Recognition and why is it Important?
  • -License Plate Recognition detects and recognizes vehicle license plates.
  • -Parking lot management, or simple monitoring of entrance and exit ways for vehicles has become increasingly complex in today’s world due to high levels of traffic.
  • -ENS License Plate Recognition technology provides an effective solution for a wide range of applications, including commercial real-estate, retail, educational institutions, gated communities, factory, gaming and retail environments.
License Plate Recognition can solve several challenges:
  • -Protection of people and property
  • -Control of vehicle entrance and exit
  • -High costs due to physical security and guardhouses
  • -Remote live video for identity verification
  • -Remote gate open processes at entranceways
Vehicle Access Control:
  • -Set “authorized” entrant improves ease of management
License Plate Recognition Camera:
  • -Alarm notifications are sent when unauthorized vehicles are detected.
Deep Learning Algorithm:
  • -Camera can detect vehicles and will automatically capture the license plate in real-time. This allows for a comparison between the license plate and the predefined list. Once the comparison is conducted, an action will take place:
  • -License plate is recognized, authorizing entry and triggering a gate to open.
  • -OR License plate is not recognized, not allowing entry.



Automatic License Plate Recognition and Recording in Real-Time



Effective Record Retention



Efficient Parking Management with Vehicle Access Control


More Information
Image Sensor1/1.8′′ Progressive Scan CMOS
Image Size1920 × 1080
Electronic Shutter1 s to 1/100,000 s
Minimum IlluminationColor: 0.002 Lux @ (F1.2, AGC ON), 0 Lux with IR
Focal Length2.8mm - 12mm @F1.2; (motorized)
Angle of Viewhorizontal FOV 103.3°to 38.6°, vertical FOV 54.2°to 21.9°, diagonal FOV 124.2° to 44.3°
Angle AdjustmentBracket, pan: 0°to 355°, tilt: 0°to 90°, rotate: 0°to 360°
IR DistanceUp to 50m (164ft) IR range
Wide Dynamic Range140 dB
Video CompressionMain stream: H.265/H.264/H.265+/H.264+ Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG
Video Resolution
  • Main Stream: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub Stream 50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
  • Third Stream 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480)
  • Fourth Stream 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • Fifth Stream 50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
  • Custom Stream: 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Video Bitrate
  • Main Stream: 60Hz : 5MP(1 20fps)/720P(1~30fps)50Hz : 5MP(1~20fps)/ 4MP(1~25fps)/1080P(1~25fps)/720P(1~25fps)
  • Sub Stream: 60Hz : 720P /D1 /CIF (1~30fps); 50HZ:720P(1~12fps)/D1(1~25fps)/CIF (1~25fps)
  • Third Stream: 60Hz : D1/CIF/480x240 (1~30fps); 50HZ: D1/CIF/480x240 (1~25fps)
Day / NightIR Cut Filter
Video EncodeH.264 and H.265 encoding
BLC ModeYes
HLCYes
Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Digital Noise ReductionReduction
Defogyes
Alarm In2 inputs,
Alarm Out2 outputs (up to 24 VDC 1A or 110 VAC 500 mA)
Face Detectionyes
AI Perimeter ProtectionLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
General IntelligenceLicense Plate Recognition
Behavior Detection4 fixed regions for main stream, sub stream, third stream, fourth stream, and fifth stream, and dynamic tracking
Exception DetectionScene change detection, defocus detection
Network ProtocolTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
StoragemicroSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS, SMB/CIFS), ANR
Storage CardmicroSD/SDHC/SDXC card (256 GB),
Web ViewerPlug-in required live view: IE8+, Chrome31.0-44, Mozilla Firefox30.0-51, Safari8.0+ Plug-in free live view: Chrome45+, Mozilla Firefox52+
Network Max. UsersUp to 32 users. 3 user levels: administrator, operator and user
MobileiPhone, Android
Video Output1Vp-p composite output (75 Ω/CVBS)
RS4851
Power Supply1Vp-p composite output (75 Ω/CVBS)
Power Consumption-IZS: 12 VDC, 1.2 A, max. 14 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A -IZHS: 12 VDC, 1.4 A, max. 16.5 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A
Operating Temperature-30 °C to 60 °C (-22 °F to 140 °F), -H: -40 °C to 60 °C (-40 °F to 140 °F) Humidity 95% or less (non-condensing)
Ingress ProtectionIP67, IK10
DimensionsCamera: Φ140 × 351 mm (Φ5.5′′ × 13.8′′) With package: 405 × 190 × 180 mm (15.9′′ × 7.5′′ × 7.1′′)
WeightCamera: approx. 2.5 kg (5.51 lb.) With package: approx. 2.75 kg (6.06 lb.)



    • 33% less
    Market price:$848.00 save $283.00
  • $565.00

OR
License Plate Recognition (LPR) IP Bullet Security Camera, 2MP@60FPS, 2.8mm - 12mm Motorized lens, 1/1.8'' CMOS, IR Range UP to 164ft, True WDR, Starlight, video content analytics (VCA), LPR, Alarm, SD Slot 256GB. UL Listed professional surveillance products.

Remote viewing from your mobile with ENS Security. you can quickly and easily view your security system remotely through your smartphone, tablet, or PC. free download app and no monthly fees.

Features
  • 1/1.8” Progressive Scan CMOS
  • 1920 × 1080 @ 30fps
  • Color: 0.002 Lux @ (F1.2, AGC ON)
  • H.265, H.265+, H.264, H.264+
  • 140dB WDR
  • 3D DNR
  • Alarm I/O
  • IP67, IK10
  • 1 RS-485 interface
  • IR range up to 50 m (2.8 to 8 mm)
  • Five defined streams and up to five custom streams
  • 6 behavior analyses, 2 exception detection
  • License Plate Recognition
  • Supports alarms for listed license plate in the blocklist and allow list
  • Built-in microSD/SDHC/SDXC card slot, up to 256 GB



LICENSE PLATE RECOGNITION TECHNOLOGY

What is License Plate Recognition and why is it Important?
  • -License Plate Recognition detects and recognizes vehicle license plates.
  • -Parking lot management, or simple monitoring of entrance and exit ways for vehicles has become increasingly complex in today’s world due to high levels of traffic.
  • -ENS License Plate Recognition technology provides an effective solution for a wide range of applications, including commercial real-estate, retail, educational institutions, gated communities, factory, gaming and retail environments.
License Plate Recognition can solve several challenges:
  • -Protection of people and property
  • -Control of vehicle entrance and exit
  • -High costs due to physical security and guardhouses
  • -Remote live video for identity verification
  • -Remote gate open processes at entranceways
Vehicle Access Control:
  • -Set “authorized” entrant improves ease of management
License Plate Recognition Camera:
  • -Alarm notifications are sent when unauthorized vehicles are detected.
Deep Learning Algorithm:
  • -Camera can detect vehicles and will automatically capture the license plate in real-time. This allows for a comparison between the license plate and the predefined list. Once the comparison is conducted, an action will take place:
  • -License plate is recognized, authorizing entry and triggering a gate to open.
  • -OR License plate is not recognized, not allowing entry.



Automatic License Plate Recognition and Recording in Real-Time



Effective Record Retention



Efficient Parking Management with Vehicle Access Control


More Information
Image Sensor1/1.8′′ Progressive Scan CMOS
Image Size1920 × 1080
Electronic Shutter1 s to 1/100,000 s
Minimum IlluminationColor: 0.002 Lux @ (F1.2, AGC ON), 0 Lux with IR
Focal Length2.8mm - 12mm @F1.2; (motorized)
Angle of Viewhorizontal FOV 103.3°to 38.6°, vertical FOV 54.2°to 21.9°, diagonal FOV 124.2° to 44.3°
Angle AdjustmentBracket, pan: 0°to 355°, tilt: 0°to 90°, rotate: 0°to 360°
IR DistanceUp to 50m (164ft) IR range
Wide Dynamic Range140 dB
Video CompressionMain stream: H.265/H.264/H.265+/H.264+ Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG
Video Resolution
  • Main Stream: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub Stream 50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
  • Third Stream 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480)
  • Fourth Stream 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • Fifth Stream 50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
  • Custom Stream: 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Video Bitrate
  • Main Stream: 60Hz : 5MP(1 20fps)/720P(1~30fps)50Hz : 5MP(1~20fps)/ 4MP(1~25fps)/1080P(1~25fps)/720P(1~25fps)
  • Sub Stream: 60Hz : 720P /D1 /CIF (1~30fps); 50HZ:720P(1~12fps)/D1(1~25fps)/CIF (1~25fps)
  • Third Stream: 60Hz : D1/CIF/480x240 (1~30fps); 50HZ: D1/CIF/480x240 (1~25fps)
Day / NightIR Cut Filter
Video EncodeH.264 and H.265 encoding
BLC ModeYes
HLCYes
Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Digital Noise ReductionReduction
Defogyes
Alarm In2 inputs,
Alarm Out2 outputs (up to 24 VDC 1A or 110 VAC 500 mA)
Face Detectionyes
AI Perimeter ProtectionLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
General IntelligenceLicense Plate Recognition
Behavior Detection4 fixed regions for main stream, sub stream, third stream, fourth stream, and fifth stream, and dynamic tracking
Exception DetectionScene change detection, defocus detection
Network ProtocolTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
StoragemicroSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS, SMB/CIFS), ANR
Storage CardmicroSD/SDHC/SDXC card (256 GB),
Web ViewerPlug-in required live view: IE8+, Chrome31.0-44, Mozilla Firefox30.0-51, Safari8.0+ Plug-in free live view: Chrome45+, Mozilla Firefox52+
Network Max. UsersUp to 32 users. 3 user levels: administrator, operator and user
MobileiPhone, Android
Video Output1Vp-p composite output (75 Ω/CVBS)
RS4851
Power Supply1Vp-p composite output (75 Ω/CVBS)
Power Consumption-IZS: 12 VDC, 1.2 A, max. 14 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A -IZHS: 12 VDC, 1.4 A, max. 16.5 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A
Operating Temperature-30 °C to 60 °C (-22 °F to 140 °F), -H: -40 °C to 60 °C (-40 °F to 140 °F) Humidity 95% or less (non-condensing)
Ingress ProtectionIP67, IK10
DimensionsCamera: Φ140 × 351 mm (Φ5.5′′ × 13.8′′) With package: 405 × 190 × 180 mm (15.9′′ × 7.5′′ × 7.1′′)
WeightCamera: approx. 2.5 kg (5.51 lb.) With package: approx. 2.75 kg (6.06 lb.)



    • SKU
      WECSIPSL2TAP/MZ2812
    • Weight
      3.09 lbs
  • Manufacturer
    Worldeyecam
  • Camera Type
    Bullet
  • Camera Resolution
    2 Megapixel
  • Lens Size
    2.8 ~ 12 mm
  • Optical Zoom
    Motorized
