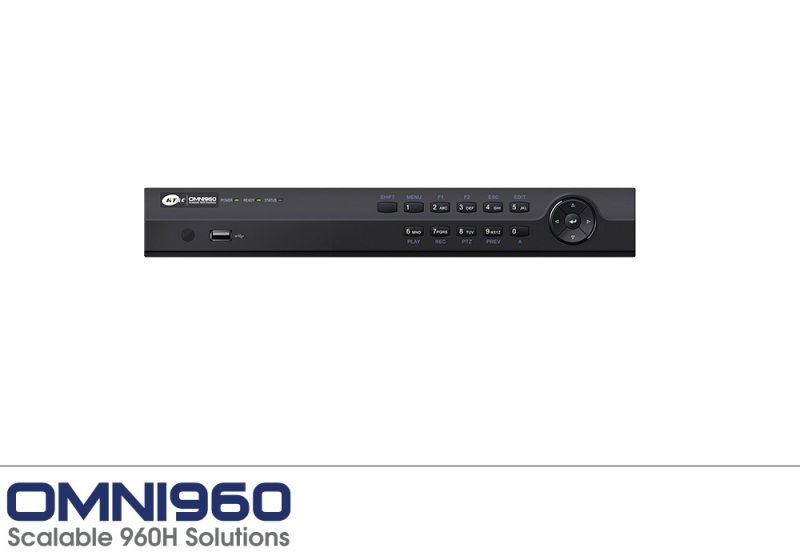

4 Channel 960H DVR

KT&C
SKU: OMNI960-4/1TB
  • WD1 960x480 recording delivers 36% more detail than traditional 4CIF (704x480)
  • H.264 Compression for efficient HDD utilization and streaming
  • NTSC/PAL automatic signal selection
  • WD1 real-time live display and recording all channels; real time playback on up to 4 channels
  • Independent channel setup for resolution/FPS/bitrate/image quality/normal & event record
  • HDMI (720p/1080p) + VGA (to 1920x1080) + BNC main monitors support any type of display
  • Simultaneous high bandwidth recording (480 NTSC/400 PAL @WD1) plus sub-stream recording for reduced bandwidth remote viewing
  • Unique Channel 0 remote stream displays user defined multi-view in the bandwidth of a single channel
  • Pentaplex Operation (Simultaneous live, recording, playback, archiving and remote viewing)
  • User friendly GUI with graphical icons and visual indicators - Easy to use on-screen menus include digital zoom and instant playback of recent video - Operate using front panel controls, wheel mouse or included IR remote
  • Quickly locate and review event video - Search by date/time, or preview images by pointing along a color coded timeline of record type - Tag video of interest for easy retrieval or export - Play based on results of extensive event/alarm log search - Use “Smart Search” to define an area of interest; the NVR quickly reviews recorded video to list instances of motion in that area for review by the operator
  • Watermarking for validation of recorded video
  • Easy router setup for remote access: uPnP automatically sets up port forwarding (router must support/allow uPnP)
  • Free DDNS Service – static IP address is not required for reliable remote access
  • Supports individual HDD sizes up to 4Tb for extended recording; 1 HDD
  • Free iOS and Android app: - Scroll though single/quad display live views - Playback specific cameras by date/time plus easy slider control - Audio monitoring support - Mobile PTZ control - Relay control - Up to 16 camera views from HD tablets (HD app)
  • Multiple Control Inputs: mouse / front panel / hand held IR remote controller (included)
  • Remote configuration support from built-in web interface and/or free CMS program
  • Ethernet (10/100) interface for remote network viewing and control
  • On-screen PTZ control via mouse or front panel
  • Audio recording capabilities plus two-way audio support
  • USB 2.0 ports on front and rear panels for video archive and mouse usage
  • Free Windows CMS displays dozens of cameras
  • Free MAC client software connects to individual sites for live view and playback
  • Multi-language support
OMNI960-4: 4 Ch, No Drive OMNI960-4/1TB: 4 Ch, 1 TB OMNI960-4/2TB: 4 Ch, 2 TB OMNI960-4/3TB: 4 Ch, 3 TB OMNI960-4/4TB: 4 Ch, 4 TB
    • 46% less
    Market price:$376.00 save $173.00
  • $203.00

OR
Camera packaging contents:

  • WD1 960x480 recording delivers 36% more detail than traditional 4CIF (704x480)
  • H.264 Compression for efficient HDD utilization and streaming
  • NTSC/PAL automatic signal selection
  • WD1 real-time live display and recording all channels; real time playback on up to 4 channels
  • Independent channel setup for resolution/FPS/bitrate/image quality/normal & event record
  • HDMI (720p/1080p) + VGA (to 1920x1080) + BNC main monitors support any type of display
  • Simultaneous high bandwidth recording (480 NTSC/400 PAL @WD1) plus sub-stream recording for reduced bandwidth remote viewing
  • Unique Channel 0 remote stream displays user defined multi-view in the bandwidth of a single channel
  • Pentaplex Operation (Simultaneous live, recording, playback, archiving and remote viewing)
  • User friendly GUI with graphical icons and visual indicators - Easy to use on-screen menus include digital zoom and instant playback of recent video - Operate using front panel controls, wheel mouse or included IR remote
  • Quickly locate and review event video - Search by date/time, or preview images by pointing along a color coded timeline of record type - Tag video of interest for easy retrieval or export - Play based on results of extensive event/alarm log search - Use “Smart Search” to define an area of interest; the NVR quickly reviews recorded video to list instances of motion in that area for review by the operator
  • Watermarking for validation of recorded video
  • Easy router setup for remote access: uPnP automatically sets up port forwarding (router must support/allow uPnP)
  • Free DDNS Service – static IP address is not required for reliable remote access
  • Supports individual HDD sizes up to 4Tb for extended recording; 1 HDD
  • Free iOS and Android app: - Scroll though single/quad display live views - Playback specific cameras by date/time plus easy slider control - Audio monitoring support - Mobile PTZ control - Relay control - Up to 16 camera views from HD tablets (HD app)
  • Multiple Control Inputs: mouse / front panel / hand held IR remote controller (included)
  • Remote configuration support from built-in web interface and/or free CMS program
  • Ethernet (10/100) interface for remote network viewing and control
  • On-screen PTZ control via mouse or front panel
  • Audio recording capabilities plus two-way audio support
  • USB 2.0 ports on front and rear panels for video archive and mouse usage
  • Free Windows CMS displays dozens of cameras
  • Free MAC client software connects to individual sites for live view and playback
  • Multi-language support
OMNI960-4: 4 Ch, No Drive OMNI960-4/1TB: 4 Ch, 1 TB OMNI960-4/2TB: 4 Ch, 2 TB OMNI960-4/3TB: 4 Ch, 3 TB OMNI960-4/4TB: 4 Ch, 4 TB

Video inputs4-ch
Video input interfaceBNC (1.0 Vp-p, 75 Ω), PAL /NTSC auto detection
Audio input1-ch, RCA (2.0 Vp-p, 1 kΩ)
Two-way audioAudio input pass through to remote web or CMS client; remote audio from web or CMS client pass through to audio output
Encoding resolutionWD1 (960x480) / 4CIF / 2CIF / CIF / QCIF
Video compressionH.264
Dual-streamSupported; sub-stream @ CIF/ QCIF @ 25 fps (P) / 30 fps (N)
Stream typesVideo, Video & Audio
Frame rate per camera25 fps (P) / 30 fps (N)
Video bit rate per camera32 Kbps ~ 3072 Kbps, or user defined (Max. 3072 Kbps)
Recording ModesContinuous, Motion
Motion DetectionConfigurable per camera for area(s), sensitivity and arming schedule programmable by day of week and hour of day
Schedule PeriodPer day in 1 hour blocks; or 8 time periods per day, each with different record mode; plus holidays
Pre- and Post- Event RecordingPre-record 0~30 seconds; post record 5s~10 minutes
Audio compressionG.711
Audio bit rate64 Kbps
HDMI/VGA output1080P: 1920×1080/60Hz; SXGA: 1280×1024/60Hz; 720P: 1280×720/60Hz; XGA: 1024×768/60Hz
CVBS output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio output1-ch, RCA (Linear, 1 kΩ)
Synchronous playback4-ch
Playback search modesTime/Date; motion or log event; Manual Tags; Smart Search for motion events from recorded video
Playback ControlsPlay; Pause; Forward/Reverse; speed control for single~1.8~16X; Slide bar with overview of record type and snapshot display from slider position
Digital Zoom During PlaybackSupported on Local Displays and CMS
SATA1 SATA interface
CapacityUp to 4TB capacity
NAS/SANup to 8 network disks (8 NAS disks, or 7 NAS disks +1 IP SAN disk)
Network interface1, RJ45 10M / 100M Ethernet interface
DST/NTPSupported; choice of time zone, NTP server, DST start/end/offset
Port Mapping/uPnPAutomatic port forwarding/redirection using uPnP on routers with this capability
Serial interface1 RS-485 interface, half-duplex
USB interface2, USB 2.0
Built-in Web Server InterfaceLive view, playback and configuration via IE, Chrome, Firefox, Safari (with free plug-in/extension installed)
CMSPC and MAC Client supports multiple device viewing, playback (with digital zoom) and configuration; user rights per camera; E-map support; live view up to 64 cameras in 4:3 and 48 cameras in 16:9; up to 16 cameras in playback
Mobile AppsiOS and Android supported ; live 1 & 4 camera views; single camera playback; snapshots from live or play; copy clips/record to smartphone; audio support; PTZ control. HD version of app, optimized for tablets, displays up to 16 live view cameras
User Rights ControlPer user-per camera for multiple functions
Event LoggingMultiple types: alarm, exception, operation, information; dozens of sub-types within each major type
Firmware UpgradeFrom USB or remotely
Backup/Restore ConfigurationFrom USB or remotely
Power supply12 VDC
Consumption≤ 10 W (without hard disk)
Operating Temperature-10 ºC ~+55 ºC
Operating Humidity Range10% ~ 90%
Chassis TypeStandalone 1U compact chassis
Dimensions (W × D × H)12.4” x 9.06” x 1.77” 315 × 230 × 45 mm
Weight≤ 4.4 lb. ≤ 2 kg (without hard disk or DVD-R/W)

PDF/OMNI960-4_SpecSheet.pdf

Quick%20Installation%20Guide%20OMNI960%20Series%20DVRs%20V0.4.pdf

User%20Manual%20OMNI960%20Series%20DVRs%20V0.2.pdf

    • SKU
      OMNI960-4/1TB
  • Manufacturer
    KT&C
