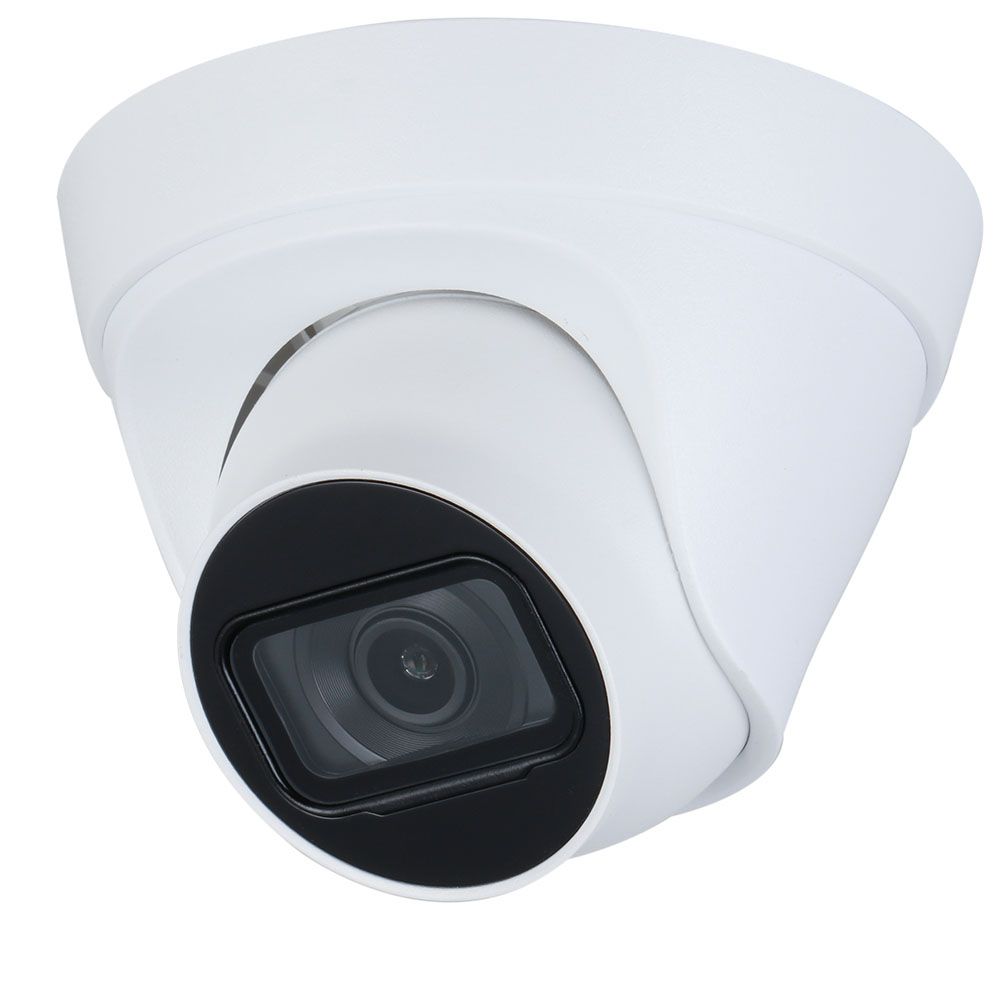

2MP IR Fixed-Focal Eyeball Network Security Camera HNC2V320T1-IR/28
Features
- · 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
- · Outputs max. 2MP (1920 × 1080) @25/30 fps
- · H.265 codec, high compression rate, ultra-low bit rate
- · Built-in efficient IR illuminator, and the max. illumination distance is 30 m
- · ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- · Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- · Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access
- · 12V DC/PoE power supply
- · IP67 protection
| Image Sensor | 1/2.8" CMOS | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Image Size | 1920 (H) × 1080 (V) | |||||||||||||||
| RAM/ROM | 64 MB/16 MB | |||||||||||||||
| Electronic Shutter | Auto/Manual 1/3 s–1/100000 s | |||||||||||||||
| Minimum Illumination | 0.01 Lux @F2.0 | |||||||||||||||
| S/N Ratio | >56 dB | |||||||||||||||
| Smart IR | Support | |||||||||||||||
| IR Distance | Distance up to 30m (98.43ft) | |||||||||||||||
| IR On/Off Control | Auto/Manual | |||||||||||||||
| Focal Length | 2.8mm | |||||||||||||||
| Angle of View | 2.8 mm: Horizontal: 102°; Vertical: 54°; Diagonal: 120° | |||||||||||||||
| Max. Aperture | 2.8 mm: F2.0 | |||||||||||||||
| Close Focus Distance | 2.8 mm: 0.5 m (1.6 ft) | |||||||||||||||
| DORI Distance |
| |||||||||||||||
| Pan / Tilt / Rotation | Pan: 0° to 355° Tilt: 0° to 78° Rotation: 0° to 360° | |||||||||||||||
| Video Compression | H.265; H.264; H.264B; MJPEG (only supported by the sub stream) | |||||||||||||||
| Streaming Capability | 2 streams | |||||||||||||||
| Video Resolution | 1080p (1920 × 1080); 1.3M(1280 × 960);720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) | |||||||||||||||
| Video Frame Rate | Main Stream: 1920 × 1080 (1 fps–25/30 fps) Sub stream: 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps) | |||||||||||||||
| Video Bitrate | H.264: 32 kbps–6144 kbps H.265: 12 kbps–6400 kbps | |||||||||||||||
| Day / Night | Auto (ICR)/Color/B/W | |||||||||||||||
| Wide Dynamic Range | DWDR | |||||||||||||||
| BLC Mode | Yes | |||||||||||||||
| HLC | Yes | |||||||||||||||
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom | |||||||||||||||
| Gain Control | Auto/Manual | |||||||||||||||
| Digital Noise Reduction | 3D DNR | |||||||||||||||
| Motion Detection | OFF/ON (4 areas, rectangular) | |||||||||||||||
| Region of Interest | Yes (4 areas) | |||||||||||||||
| Mirror | YES | |||||||||||||||
| Privacy Masking | 4 areas | |||||||||||||||
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast | |||||||||||||||
| Network Interoperability | ONVIF (Profile S/Profile T); CGI; P2P; Genetec | |||||||||||||||
| Network Max. Users | 6 (Total bandwidth: 36 M) | |||||||||||||||
| Storage | FTP | |||||||||||||||
| Web Viewer | IE Chrome Firefox | |||||||||||||||
| Management Software | Smart PSS; DSS; DMSS | |||||||||||||||
| Mobile | iPhone, Android |
