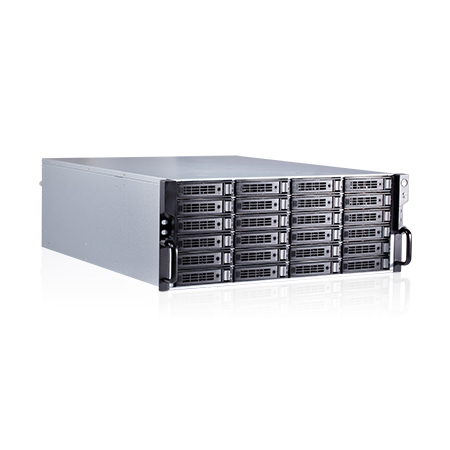

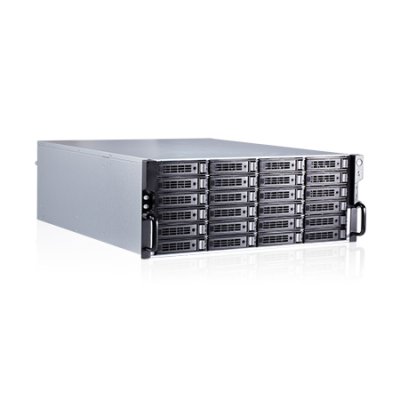

GV-Storage System V2-24-Bay Intel Processor 4GB RAM 128 GB SSD - No HDD
SKU: GV-Storage System V2GV-Storage System V2, the IP SAN storage system, is a high-performance RAID storage system based on the latest iSCSI technology for users looking for a cost-effective and shared storage solution over the network. Compared to the desktop PC and consumer NAS system which only allow for 2 ~ 8 hard disks for data storage, GV-Storage System V2 is equipped with 24 hard disk drives, storage capacity up to 144 TB (with 6 TB HDD). GV-Storage System V2 can connect to 7 units of 24-bay GV-Expansion Systems, JBOD systems, increasing storage up to 192 hard disks with 1,152 TB.
GV-Storage System V2 has fully redundant components including power supplies, fan modules, and SAS JBOD expansion ports linked to GV-Expansion System. All of these components are hot-swappable to create a high availability platform and provide non-stop services.
Specification
System
- CPU - Intel processor
- RAM - 4 GB DDR3 ECC
- Management Port - RJ-45, 10 / 100 / 1000 Mbps
- iSCSI Port - 1 GbE iSCSI ports x 6
- UPS Port - UPS port x 1 (phone jack to DB9 male)
- SAS Port - 6 Gbps SAS port x 1
- No. of Hot Swap Drive Bays - 24
- HDD Type - SATA II / III
- Power - Output: 550 W x 2 ; Input: 100 ~ 230V, 50 ~ 60 Hz
- Fan - Hot pluggable and redundant fan x 3
Physical
- LED Indicator - Yes (Power, HDD, Status, Access)
- Color - Black
- Form Factor - 4U 19 inch rackmount chassis
- Dimensions (W x H x D) - 481 x 176 x 550 mm / 19 x 7 x 22 in
- Weight - 34 kg / 75 lb (Diskless)
- Regulatory - CE / FCC / BSMI / C-Tick / LVD
Environment
- Operating Temperature - 0 ~ 40°C / 32 ~ 104 °F
- Humidity - 5 ~ 95% RH (non-condensing)
Management
- Management Method - Web UI
- RAID Mode - RAID 0 / 1 / 3 / 5 / 6 / 0+1 / 10 / 30 / 50 / 60 and JBOD, and N-way mirror
- Automatic RAID Creation - Yes
- RAID Migration - Yes
- RAID Expansion - Yes
- Alert - Email, SNMP, Windows Messenger, System Buzzer
- Security - CHAP authentication
- HDD Health Detection - S.M.A.R.T. diagnostics
- Language - English / French / German / Japanese / Russian / Simplified Chinese
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
GV-Storage System V2, the IP SAN storage system, is a high-performance RAID storage system based on the latest iSCSI technology for users looking for a cost-effective and shared storage solution over the network. Compared to the desktop PC and consumer NAS system which only allow for 2 ~ 8 hard disks for data storage, GV-Storage System V2 is equipped with 24 hard disk drives, storage capacity up to 144 TB (with 6 TB HDD). GV-Storage System V2 can connect to 7 units of 24-bay GV-Expansion Systems, JBOD systems, increasing storage up to 192 hard disks with 1,152 TB.
GV-Storage System V2 has fully redundant components including power supplies, fan modules, and SAS JBOD expansion ports linked to GV-Expansion System. All of these components are hot-swappable to create a high availability platform and provide non-stop services.
Specification
System
- CPU - Intel processor
- RAM - 4 GB DDR3 ECC
- Management Port - RJ-45, 10 / 100 / 1000 Mbps
- iSCSI Port - 1 GbE iSCSI ports x 6
- UPS Port - UPS port x 1 (phone jack to DB9 male)
- SAS Port - 6 Gbps SAS port x 1
- No. of Hot Swap Drive Bays - 24
- HDD Type - SATA II / III
- Power - Output: 550 W x 2 ; Input: 100 ~ 230V, 50 ~ 60 Hz
- Fan - Hot pluggable and redundant fan x 3
Physical
- LED Indicator - Yes (Power, HDD, Status, Access)
- Color - Black
- Form Factor - 4U 19 inch rackmount chassis
- Dimensions (W x H x D) - 481 x 176 x 550 mm / 19 x 7 x 22 in
- Weight - 34 kg / 75 lb (Diskless)
- Regulatory - CE / FCC / BSMI / C-Tick / LVD
Environment
- Operating Temperature - 0 ~ 40°C / 32 ~ 104 °F
- Humidity - 5 ~ 95% RH (non-condensing)
Management
- Management Method - Web UI
- RAID Mode - RAID 0 / 1 / 3 / 5 / 6 / 0+1 / 10 / 30 / 50 / 60 and JBOD, and N-way mirror
- Automatic RAID Creation - Yes
- RAID Migration - Yes
- RAID Expansion - Yes
- Alert - Email, SNMP, Windows Messenger, System Buzzer
- Security - CHAP authentication
- HDD Health Detection - S.M.A.R.T. diagnostics
- Language - English / French / German / Japanese / Russian / Simplified Chinese
