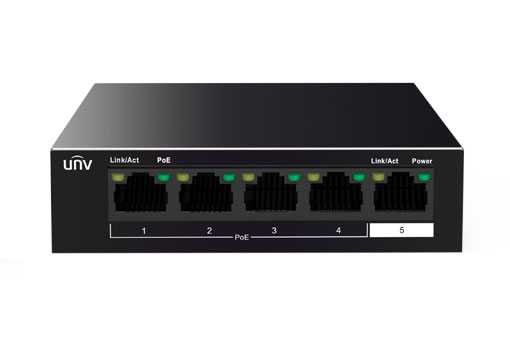

4-Port PoE Switch
5×10/100Mbps Ethernet ports
4 10/100Mbps ports support PoE
PoE complies with IEEE802.3af/at, up to 30W for single port
Up to 250m transmission distance on EXTEND mode
Easy to use, no need to configure
High quality with all metal housing
Lightning Protection 6KV
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
5×10/100Mbps Ethernet ports
4 10/100Mbps ports support PoE
PoE complies with IEEE802.3af/at, up to 30W for single port
Up to 250m transmission distance on EXTEND mode
Easy to use, no need to configure
High quality with all metal housing
Lightning Protection 6KV
| Item | Description |
| Ports | 5×10/100Base-TX autosensing Ethernet ports(4 10/100Mbps ports support PoE) |
| Port attribute | 10/100 Mbit/s transfer rate Half-duplex, full-duplex and auto-negotiation Auto MDI/MDIX |
| Standards | IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3af IEEE 802.3at |
| MAC | 1K |
| Packet forwarding rate | 0.74Mpps |
| Switching capacity | 1Gbps |
| EXTEND mode | Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other. Extend Mode: If the extend mode is enabled, the transmission distance of both power and data will extend up to 250m(10Mbps), this funcation can replace the extender and parts of the Fiber. It will extend the distance of the whole system and save the cost of the project. |
| Status LEDs | Link/Act (steady yellow): link is normal Link/Act (flashing yellow): data is being forwarded Link/Act (off): no link |
| PoE (steady green): the port is powering a powered device properly PoE (off): the port is not connected to any powered device or is not supplying power | |
| Power (steady green): AC input is normal Power (off): AC input is abnormal | |
| PoE | Port 1 to Port 4 support standard IEEE802.3at/af power( maximum power for each port is 30W)， PoE power type is end-span(12+, 36- and 45+, 78- line pair) Max PoE capacity: 57.8W |
| Consumption | ≤ 63.7 W |
| DC voltage | 51 V , 1.25A |
| Operating temperature | 0°C-40°C (32°F-104°F) |
| Operating humidity | 10%-90% non-condensing |
| Storage temperature | -40°C-70°C (-40°F-158°F) |
| Storage humidity | 5%-90% non-condensing |
| Dimensions (W×D×H) | 100mm*100mm*26mm |
| Certification | FCC,CE,RoHS |
