Geovision 84-FD12100-001U GV-FD1210 MOTORIZED FIXED DOME IP CAM, 3X ZOOM, H.264, 1.3M LOW LUX, WDR, IR FIX
Information
- 1.3MP/INDR-DOM/IR/WDR/3-9MM
- Motorized Fixed Dome Ip Cam,3X Zoom,H.264,1.3M Low
- Analog Fixed Dome Cameras
Analog Cameras - 999999421434

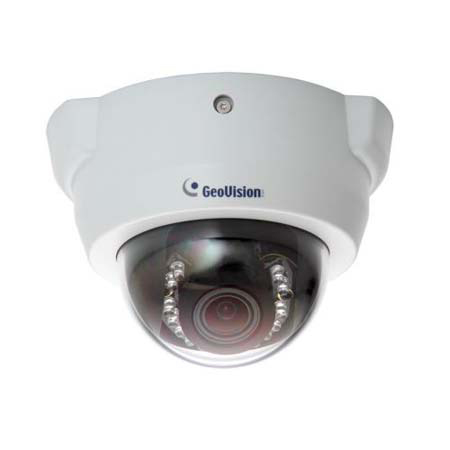

The GV-FD1210 is an indoor camera designed with 3-axis mechanism for easy and flexible installation. The Fixed IP Dome contains an automatic IR-cut filter and IR LEDs for night surveillance. With the motorized varifocal lens, the camera allows the user to remotely adjust the zoom and focus through the Web interface. The camera can be installed on various types of locations including wall surface, wall corner, pole and ceiling using optional accessories.
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
Information
- 1.3MP/INDR-DOM/IR/WDR/3-9MM
- Motorized Fixed Dome Ip Cam,3X Zoom,H.264,1.3M Low
- Analog Fixed Dome Cameras
Analog Cameras - 999999421434
The GV-FD1210 is an indoor camera designed with 3-axis mechanism for easy and flexible installation. The Fixed IP Dome contains an automatic IR-cut filter and IR LEDs for night surveillance. With the motorized varifocal lens, the camera allows the user to remotely adjust the zoom and focus through the Web interface. The camera can be installed on various types of locations including wall surface, wall corner, pole and ceiling using optional accessories.
Product Details
Manufacturer Part Number: 84-FD12100-001U
Model Number: GV-FD2410
Camera
- Image Sensor - 1/3” progressive scan CMOS
- Picture Elements - 2048(H) x 1536 (V)
- Minimum illumination
- Color - 0.05 Lux
- B/W - 0.03 Lux
- IR On - 0 Lux
- Shutter Speed - Automatic, Manual (1/5 ~ 1/8000 sec)
- White Balance - Automatic, Manual (2800 ~ 8500K)
- Gain Control - Automatic
- S/N Ratio - 50db
- BLC - Yes
Lens
- Megapixel - Yes
- Day/Night - Yes (with removable IR-Cut Filter)
- Lens Type - Motorized varifocal lens
- Focal Length - 3 ~ 9mm
- Maximum Aperature - F/1.2
- Mount - Ø 14 mm
- Image Format - 1/2.7"
- Operation
- Focus - Auto Focus
- Zoom - 3X Optical Zoom
- Iris - DC Drive
- Torque (Focus/Zoom screws) - 0.049 N.m
- IR LED Quantity - 10 IR LEDs
- Max. IR Distance - 15 m (50 ft.)
Operation
- Video Compression - H.264, MPEG4
- Video Streaming - Dual streams from H.264 or MJPEG
- Frame Rate - 30 fps at 1280 x 1024 * The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes).
- Image Setting - Brightness, Contrast, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation, Shutter Speed, Backlight Compensation, D/N Sensitivity, WDR, Defog
- Audio Compression - G.711
- Two‐way Audio - Yes
- Sensor Input - 1 input (Dry Contact)
- Alarm Output - 1 Output (200mA 5V DC)
Video Resolution
- Main Stream
- 4:3 - 1280 x 960, 640 x 480, 320 x 240
- 16:9 - 1280 x 720, 640 x 360, 448 x 252
- 1280 x 1024, 640 x 512, 320 x 256
- Sub Stream
- 4:3 - 640 x 480, 320 x 240
- 16:9 - 640 x 360, 448 x 252
- 5:4 - 640 x 512, 320 x 256
Network
- Interface - 10/100 Ethernet
- Ethernet Protocol - HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS (DSCP), ONVIF (Profile S)
Mechanical
- Camera Angle Adjustment
- Pan - 0° ~ 350°
- Tilt - 10° ~ 90°
- Rotation - 0° ~ 340°
- Temperature Detector - Yes
- Connectors
- Power - 2-pin terminal block, PoE
- Ethernet - Ethernet (10/100 Base-T), RJ-45 cable
- Audio - 1 In microphone phone jack, 3.5 mm (0.14”) 1 Out Stereo phone jack, 3.5 mm (0.14”)
- Digital I/O - 3-pin terminal block, pitch 2.5 mm (0.1")
- Local Storage - Micro SD memory card slot (SDHC / SDXC for Class 6 card or above)
- TV-Out - BNC connector (640 x 480 resolution)
- LED Indicator - 2 LEDs: Power, Status
General
- Operating Temperature - 0 °C ~ 50 °C (32 °F ~ 122 °F)
- Humidity - 10% to 90% (no condensation)
- Power Source - 12V DC / 24V AC / PoE
- Max. Power Consumption - 12W
- Dimensions (without lens) - ø 155 x 110 mm (6.1’’ x 4.33”)
- Weight - 580 g (1.28 lb)
- Vandal Resistance - 1K7
- Regulatory - CE, RCM, FCC, RoHS compliant
Power over Ethernet
- PoE Standard - IEEE 802.3af Class 3 Power over Ethernet / PD
- PoE Power Supply Type - End‐Span
- PoE Power Output - Per Port 48V DC, 350mA. Max. 15.4 watts
Web Interface
- Installation Management - Web‐based configuration
- Maintenance - Firmware upgrade through Web Browser or Utility
- Access from Web Browser - Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Digital I/O control, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Visual Automation, Tampering Alarm, Text Overlay, Digital PTZ
- Language - Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish
Applications
- Network Storage - GV-NVR, GV-System, GV-Backup Center, GV-Recording Server
- Smart Device Access - GV-Eye for Android smartphone, tablet, iPhone, and iPod Touch GV-Eye HD for iPad
- Live Viewing - IE, mobile phone
- CMS Server support - GV‐Control Center, GV‐Center V2, GV‐VSM
- ManufacturerGeovision
- UPC999999421434
- Shipping Lead TimeShips within 1 to 12 Hours
- WarrantyGeoVision Direct Warranty
- Remote Login SupportNo Login Support Needed, 1 Time FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
