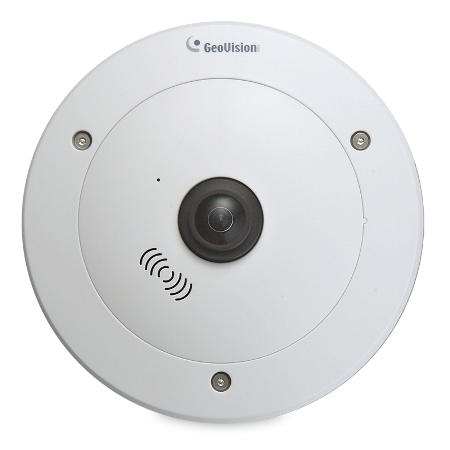

Geovision 84-FE43010-001U GV-FE4301 4M 1.05mm Fisheye camera

Geovision
SKU: 84-FE43010-001U

Main Features

  • Image Sensor Size: 1/2.5"
  • Image Sensor Type: CMOS
  • Illumination: Minimum 0.1 Lux
  • Color Supported: Color, Monochrome
  • Effective Camera Resolution: 4 Megapixel
  • Maximum Video Resolution: 2048 x 1944
  • Maximum Frame Rate: 15 fps
  • Lens Included: Yes
  • Focal Length: 1.05 mm
  • Lens Mount Type: M12-mount
  • Connectivity Technology: Cable
  • Ethernet Technology: Fast Ethernet
  • Protocols: DHCP, DSCP, DynDNS, FTP, HTTP, HTTPS, NTP, ONVIF, PSIA, QoS, RTSP, SMTP, SNMP, TCP, UDP, UPnP
  • Analog Video Out: No
  • Network (RJ-45): Yes
  • Height: 1.9"
  • Diameter: 6.3"
  • Weight (Approximate): 1.43 lb
  • Limited Warranty: 2 Year

Marketing Information

The GV-FE4301 is a fisheye camera that allows you to monitor all angles of a location using just one camera. The distorted hemispherical image of the fisheye camera will be converted into the conventional rectilinear projection. Without installing any software, you can watch live view and utilize functions such as motion detection, privacy mask, and alert notification through the Web interface using an IE browser. In addition, the GV-FE4301 seamlessly integrates with the GV-System, providing advanced monitoring and video management features. The GV-Fisheye IP Camera is designed to be mounted on the ceiling, wall or ground. There are two ways to mount the GV-FE4301 on the ceiling, Hard Ceiling Mount and In-Ceiling Mount. In-Ceiling Mount allows the GV-FE4301 to be mounted into the ceiling, revealing a small portion of the camera.

Package Contents

    • GV-FE4301 4MP H.264 WDR Fisheye IP Camera
    • Camera Cover (Hard Ceiling Mount)
    • 3 x Screw (Hard Ceiling Mount)
    • 3 x Plastic Screw Anchor
    • Camera Cover (In-Ceiling Mount)
    • 3 x Screw (In-Ceiling Mount)
    • 3 x Support Bracket
    • Torx Wrench
    • 3-Pin or 2-Pin Terminal Block
    • DC 12V Power Adapter
    • Installation Sticker
    • GV-Fisheye IP Camera Software DVD
    • GV-NVR Software DVD
    • GV-NVR Quick Start Guide

Information

  • 4MP/FISH-EYE/1.05M/WDR/INDR
  • IP Fixed Domes Cameras
    IP Cameras
    • 58% less
    Market price:$835.98 save $485.98
  • $350.00

OR

Main Features

  • Image Sensor Size: 1/2.5"
  • Image Sensor Type: CMOS
  • Illumination: Minimum 0.1 Lux
  • Color Supported: Color, Monochrome
  • Effective Camera Resolution: 4 Megapixel
  • Maximum Video Resolution: 2048 x 1944
  • Maximum Frame Rate: 15 fps
  • Lens Included: Yes
  • Focal Length: 1.05 mm
  • Lens Mount Type: M12-mount
  • Connectivity Technology: Cable
  • Ethernet Technology: Fast Ethernet
  • Protocols: DHCP, DSCP, DynDNS, FTP, HTTP, HTTPS, NTP, ONVIF, PSIA, QoS, RTSP, SMTP, SNMP, TCP, UDP, UPnP
  • Analog Video Out: No
  • Network (RJ-45): Yes
  • Height: 1.9"
  • Diameter: 6.3"
  • Weight (Approximate): 1.43 lb
  • Limited Warranty: 2 Year

Marketing Information

The GV-FE4301 is a fisheye camera that allows you to monitor all angles of a location using just one camera. The distorted hemispherical image of the fisheye camera will be converted into the conventional rectilinear projection. Without installing any software, you can watch live view and utilize functions such as motion detection, privacy mask, and alert notification through the Web interface using an IE browser. In addition, the GV-FE4301 seamlessly integrates with the GV-System, providing advanced monitoring and video management features. The GV-Fisheye IP Camera is designed to be mounted on the ceiling, wall or ground. There are two ways to mount the GV-FE4301 on the ceiling, Hard Ceiling Mount and In-Ceiling Mount. In-Ceiling Mount allows the GV-FE4301 to be mounted into the ceiling, revealing a small portion of the camera.

Package Contents

    • GV-FE4301 4MP H.264 WDR Fisheye IP Camera
    • Camera Cover (Hard Ceiling Mount)
    • 3 x Screw (Hard Ceiling Mount)
    • 3 x Plastic Screw Anchor
    • Camera Cover (In-Ceiling Mount)
    • 3 x Screw (In-Ceiling Mount)
    • 3 x Support Bracket
    • Torx Wrench
    • 3-Pin or 2-Pin Terminal Block
    • DC 12V Power Adapter
    • Installation Sticker
    • GV-Fisheye IP Camera Software DVD
    • GV-NVR Software DVD
    • GV-NVR Quick Start Guide

Information

  • 4MP/FISH-EYE/1.05M/WDR/INDR
  • IP Fixed Domes Cameras
    IP Cameras

General Information

Brand Name
GeoVision
Manufacturer
GeoVision, Inc
Manufacturer Part Number
84-FE43010-001U
Product Model
GV-FE4301
Product Type
Network Camera
UPC
4717095107199
Weight
4 lbs

Display & Graphics

Color Support
  • Color
  • Monochrome
Illumination
Minimum 0.1 Lux
Image Sensor Type
CMOS
White Balance Modes
  • Auto
  • Manual

Exposure

Longest Shutter Speed
1/5 Second
Shortest Shutter Speed
1/8000 Second

Interfaces/Ports

Analog Video Out
No
Network (RJ-45)
Yes

Lens

Aperture Range
f/2.8
Focal Length
1.05 mm
Focus Modes
Fixed Focus
Lens Mount Type
M12-mount

Miscellaneous

Certifications & Standards
    • CE
    • FCC
    • C-Tick
Green Compliance
Yes
Green Compliance Certificate/Authority
RoHS
Package Contents
    • GV-FE4301 4MP H.264 WDR Fisheye IP Camera
    • Camera Cover (Hard Ceiling Mount)
    • 3 x Screw (Hard Ceiling Mount)
    • 3 x Plastic Screw Anchor
    • Camera Cover (In-Ceiling Mount)
    • 3 x Screw (In-Ceiling Mount)
    • 3 x Support Bracket
    • Torx Wrench
    • 3-Pin or 2-Pin Terminal Block
    • DC 12V Power Adapter
    • Installation Sticker
    • GV-Fisheye IP Camera Software DVD
    • GV-NVR Software DVD
    • GV-NVR Quick Start Guide
Platform Support
PC
System Requirements
    • Supported OS: Windows XP / Vista, Windows 7 / Server 2008 (32/64-bit)
    • Supported Browser: Internet Explorer 7.x or Later
    • GV-System V8.5.6 with Patch or Later

Network & Communication

Connectivity Technology
Cable
Ethernet
Yes
Ethernet Technology
Fast Ethernet
Protocols
  • DHCP
  • DSCP
  • DynDNS
  • FTP
  • HTTP
  • HTTPS
  • NTP
  • ONVIF
  • PSIA
  • QoS
  • RTSP
  • SMTP
  • SNMP
  • TCP
  • UDP
  • UPnP

Physical Characteristics

Diameter
6.3"
Form Factor
  • Ceiling Mount
  • Corner Mount
  • Pole Mount
  • Wall Mount
Height
1.9"
Weight (Approximate)
1.43 lb

Power Description

Maximum Power Consumption
5 W

Video

Maximum Video Resolution
2048 x 1944
Video Formats
  • H.264
  • Motion JPEG

Warranty

Standard Warranty
2 Year
    • SKU
      84-FE43010-001U
    • Weight
      4 lbs
  • Manufacturer
    Geovision
  • UPC
    4717095107199
  • Shipping Lead Time
    Ships within 1 to 12 Hours
  • Warranty
    GeoVision Direct Warranty
  • Remote Login Support
    No Login Support Needed, 1 Time FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
