GEOVISION GV-FD1200 1.3MP H.264 Low Lux Day/Night WDR IR Indoor IP Fixed Dome Camera with 3-9 mm Varifocal Lens

Geovision
SKU: 84-FD12000-001U

Information

  • 1.3MP/INDR/DOM/IR/3-9M
  • 1.3Mp Indoor Dome W/Ir&2.7-Varifocal Lens
  • IP Fixed Domes Cameras
    IP Cameras

Overview

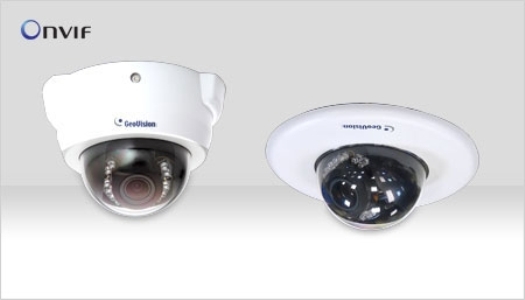

The GV-FD1200 1.3MP H.264 Low Lux Day/Night WDR IR Indoor IP Fixed Dome Camera from GeoVision is equipped with an automatic IR‐cut filter and IR LEDs for day and night surveillance. It utilizes a 1/3" progressive scan low lux CMOS sensor with a 3 to 9mm lens to capture video at a resolution of up to 1280 x 1024. Its 10 onboard IR LEDs enable it to capture clear images in complete darkness up to a distance of 50'.

The camera supports dual streaming of real-time imagery in H.264 and JPEG formats at a resolution of 1280 x 1024 and up to 30 fps. This indoor camera is designed with 3‐axis adjustment for easy and flexible installation. This fixed dome camera can be installed on various types of locations including wall surface, wall corner, pole, and ceiling using appropriate mounting accessories (not included).

1/3" progressive scan low lux CMOS sensor
Varifocal megapixel lens
Removable IR-cut filter for Day/Night functionality
10 intelligent IR LEDs offer an illumination distance of up to 50'
Dual streams from H.264 and MJPEG
Up to 30 fps at 1280 x 1024
Built-in microSD card slot (SD/SDHC) for local storage
Supports 2-way audio
3-axis mechanism (pan / tilt / roll)
WDR (Wide Dynamic Range)
BLC (Backlight Compensation)
One sensor input and alarm output
TV-out support
Defog
Motion detection
Tampering alarm
Privacy mask
IP address filtering
Supports iPhone, iPad, Android, and 3GPP
ONVIF (Profile S) conformant
31 languages on Web interface
12V DC / 24VAC / PoE
    • 37% less
    Market price:$697.28 save $256.89
  • $440.39

OR

Information

  • 1.3MP/INDR/DOM/IR/3-9M
  • 1.3Mp Indoor Dome W/Ir&2.7-Varifocal Lens
  • IP Fixed Domes Cameras
    IP Cameras

Overview

The GV-FD1200 1.3MP H.264 Low Lux Day/Night WDR IR Indoor IP Fixed Dome Camera from GeoVision is equipped with an automatic IR‐cut filter and IR LEDs for day and night surveillance. It utilizes a 1/3" progressive scan low lux CMOS sensor with a 3 to 9mm lens to capture video at a resolution of up to 1280 x 1024. Its 10 onboard IR LEDs enable it to capture clear images in complete darkness up to a distance of 50'.

The camera supports dual streaming of real-time imagery in H.264 and JPEG formats at a resolution of 1280 x 1024 and up to 30 fps. This indoor camera is designed with 3‐axis adjustment for easy and flexible installation. This fixed dome camera can be installed on various types of locations including wall surface, wall corner, pole, and ceiling using appropriate mounting accessories (not included).

1/3" progressive scan low lux CMOS sensor
Varifocal megapixel lens
Removable IR-cut filter for Day/Night functionality
10 intelligent IR LEDs offer an illumination distance of up to 50'
Dual streams from H.264 and MJPEG
Up to 30 fps at 1280 x 1024
Built-in microSD card slot (SD/SDHC) for local storage
Supports 2-way audio
3-axis mechanism (pan / tilt / roll)
WDR (Wide Dynamic Range)
BLC (Backlight Compensation)
One sensor input and alarm output
TV-out support
Defog
Motion detection
Tampering alarm
Privacy mask
IP address filtering
Supports iPhone, iPad, Android, and 3GPP
ONVIF (Profile S) conformant
31 languages on Web interface

Specifications

12V DC / 24VAC / PoE

Camera
Image Sensor 1/3" progressive scan low lux CMOS
Picture Elements H x V: 1280 x 1024
Minimum Illumination Color: 0.05 lux
B/W: 0.03 lux
IR On: 0 lux
Shutter Speed 1/5 to 1/8,000 sec (Automatic, Manual)
White Balance 2,800 to 8,500 K (Automatic, Manual)
Gain Control Automatic
S/N Ratio 55 dB
Lens
Type Varifocal (Megapixel)
Focal Length 3 to 9 mm
Day/Night Yes with removable IR‐cut filter
Maximum Aperture F/1.2
Mount Ø 14 mm
Image Format 1/2.7"
Focus Manual with lock
Zoom Manual with lock
Auto Iris DC drive
Torque Focus / Zoom Screws: 0.049 Nm (maximum)
IR LED 10
Illumination Distance 50' (15 m)
Operation Details
Video Compression H.264, MJPEG
Video Streaming Dual streams from H.264 and MJPEG
Frame Rate 30 fps at 1280 x 1024 1
Image Settings Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flickerless, Image Orientation, Backlight Compensation, Shutter Speed, D/N Sensitivity, WDR, Defog
Audio Compression Format G.711
Audio Two‐way support
Sensor Input 1 (Dry Contact)
Alarm Output 1 x Digital output (200 mA, 5 VDC)
Video Resolution Main Stream
4:3: 1280 x 960, 640 x 480, 320 x 240
16:9: 1280 x 720, 640 x 360, 448 x 252
5:4: 1280 x 1024, 640 x 512, 320 x 256

Sub Stream
4:3: 640 x 480, 320 x 240
16:9: 640 x 360, 448 x 252
5:4: 640 x 512, 320 x 256
Network
Interface 10/100 Ethernet
Protocol HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS (DSCP), ONVIF (Profile S)
Mechanical
Detectors Temperature detector
Pan 0 to 350°
Tilt 10 to 90°
Rotate 0 to 340°
Power 2‐pin terminal block, PoE
Connectors Audio:
Input: 1 x In microphone phone jack, 3.5 mm
Output: 1 x Out Stereo phone jack, 3.5 mm

Ethernet: (10/100 Base‐T), RJ‐45

Digital I/O: 3‐pin terminal block, pitch 2.5 mm

TV‐Out: BNC connector (640 x 480 resolution)
Local Storage microSD card slot (SD/SDHC, SD version 2.0 only, Class 10) 2
LED Indicator 2 LEDs: Power and status
Power over Ethernet
PoE Standard IEEE 802.3af Power over Ethernet / PD
PoE Power Supply Type End‐Span
PoE Power Output Per Port: 48 VDC, 350 mA, maximum 15.4 W
Web Support
Installation & Management Web‐based configuration
Maintenance Firmware upgrade through Web Browser or Utility
Web Browser Access Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Digital I/O control, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Visual Automation, Tampering Alarm, Text Overlay, Digital PTZ
Language Arabic, Bulgarian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hebrew, Hungarian, Indonesian, Italian, Japanese, Lithuanian, Norwegian, Persian, Polish, Portuguese, Romanian, Russian, Serbian, Simplified Chinese, Slovakian, Slovenian, Spanish, Swedish, Thai, Traditional Chinese, Turkish
Applications
Network Storage GV‐NVR, GV‐System, GV‐Backup Center, GV‐Recording Server
Smart Device Access GV‐Eye for Android smartphones, tablets, iPhones, and iPod Touch
GV‐Eye HD for iPads
Live Viewing IE, smartphone
CMS Server Support GV‐Control Center, GV‐Center V2, GV‐VSM
General
Vandal Resistant IK7
Approvals CE, FCC, C‐Tick, RoHS compliant
Power Source 12 VDC, 24 VAC, PoE
Maximum Power Consumption 12 W
Environment Temperature 32 to 122°F (0 to 50°C)
Humidity 10 to 90% (no condensation)
Dimensions (Ø x L) 6.10 x 4.33" (155.00 x 110.00 mm)
Weight 1.28 lb (0.58 kg)



    • SKU
      84-FD12000-001U
    • Weight
      1.28 lbs
  • Manufacturer
    Geovision
  • Shipping Lead Time
    Ships within 1 to 12 Hours
  • Warranty
    GeoVision Direct Warranty
  • Remote Login Support
    No Login Support Needed, 1 Time FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
