New GUI/AI/Tripwire Setup

How To Setup Tripwire

Description

This article will show you how to setup the tripwire IVS feature on a supported device

Prerequisites

• Supported device with tripwire feature

Video Instructions

Step by Step Instructions

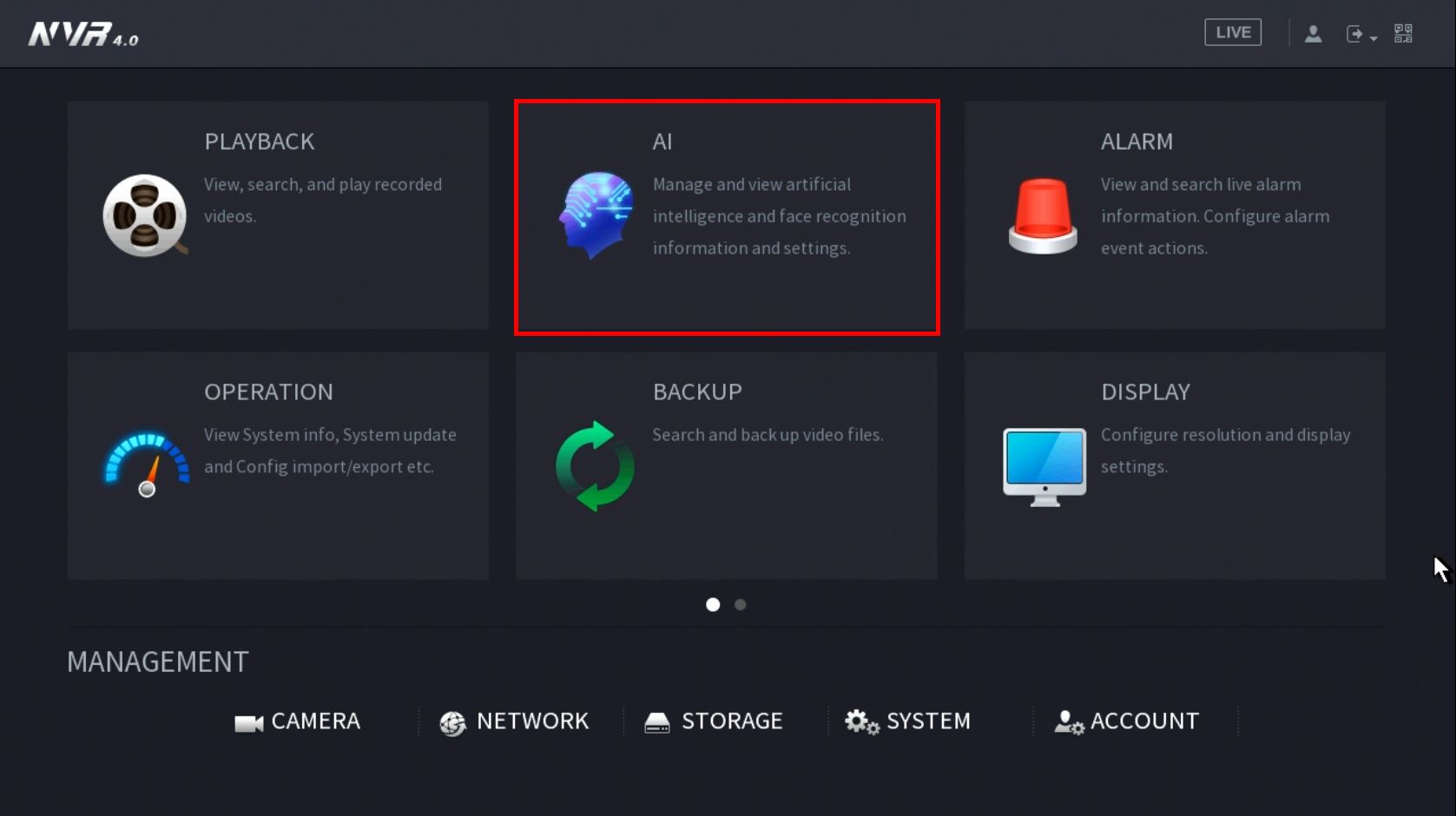

1. From the Main Menu click AI

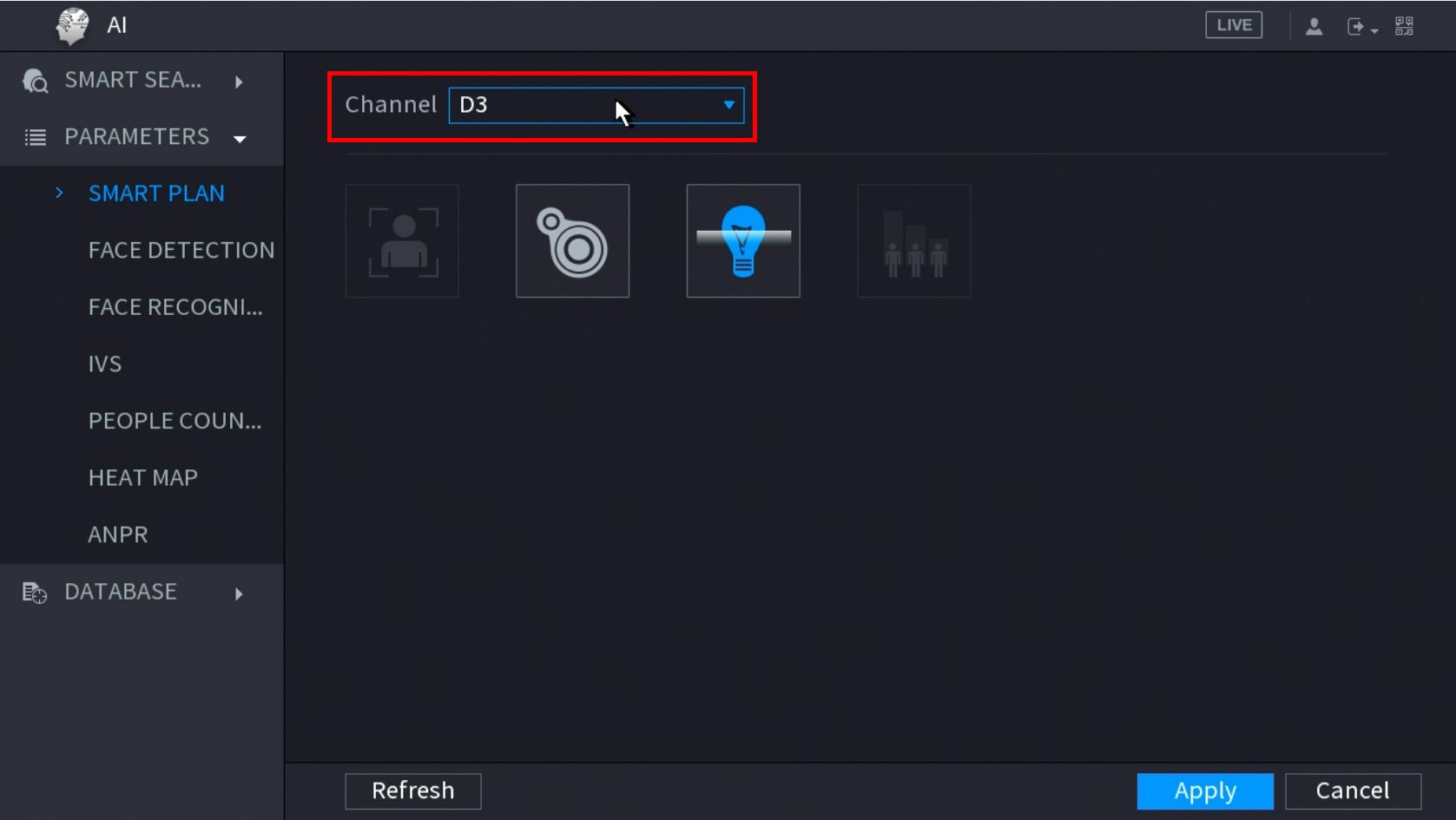

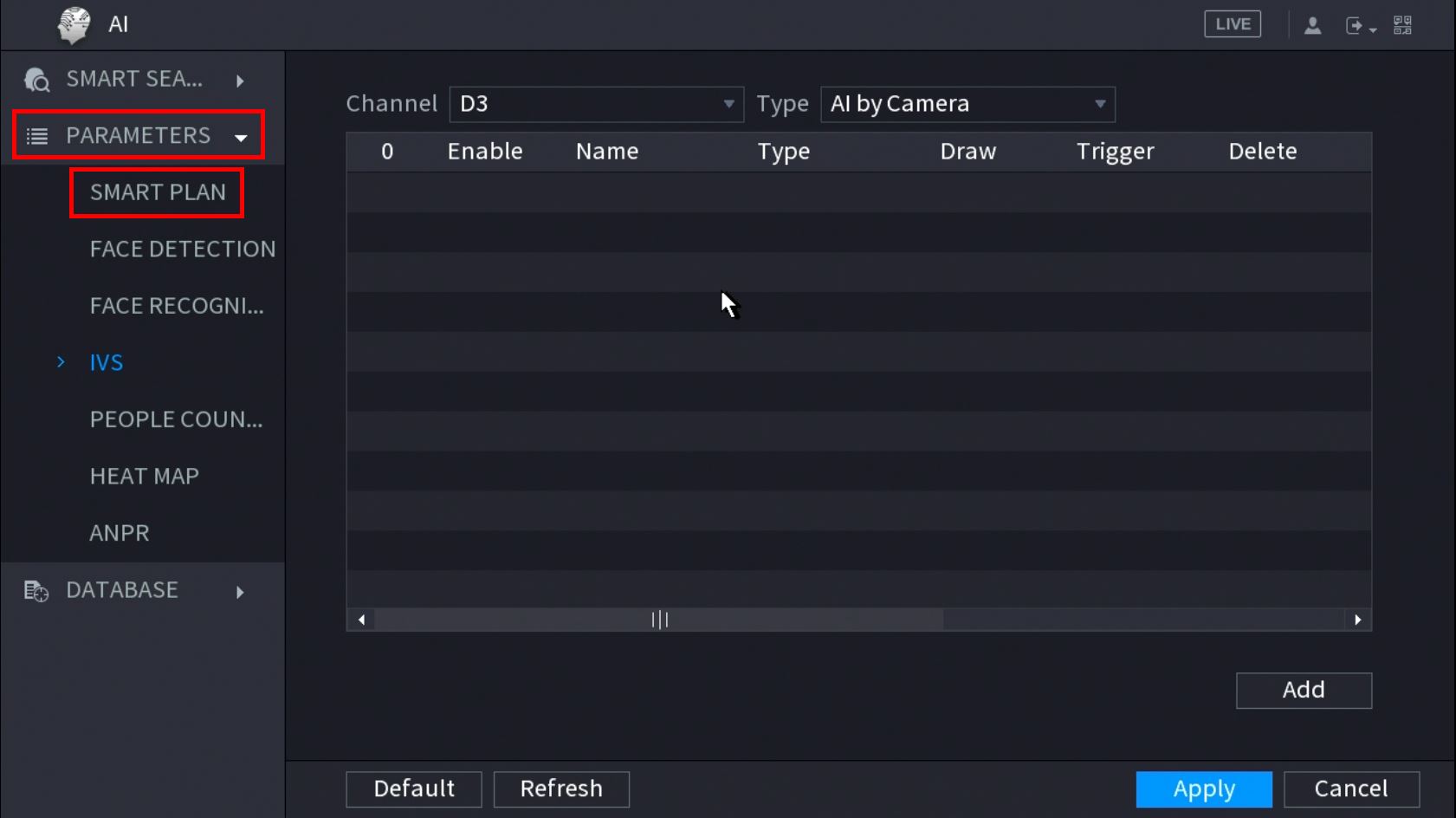

2. Click Parameters > Smart Plan 3. Use the drop down box to select the Channel

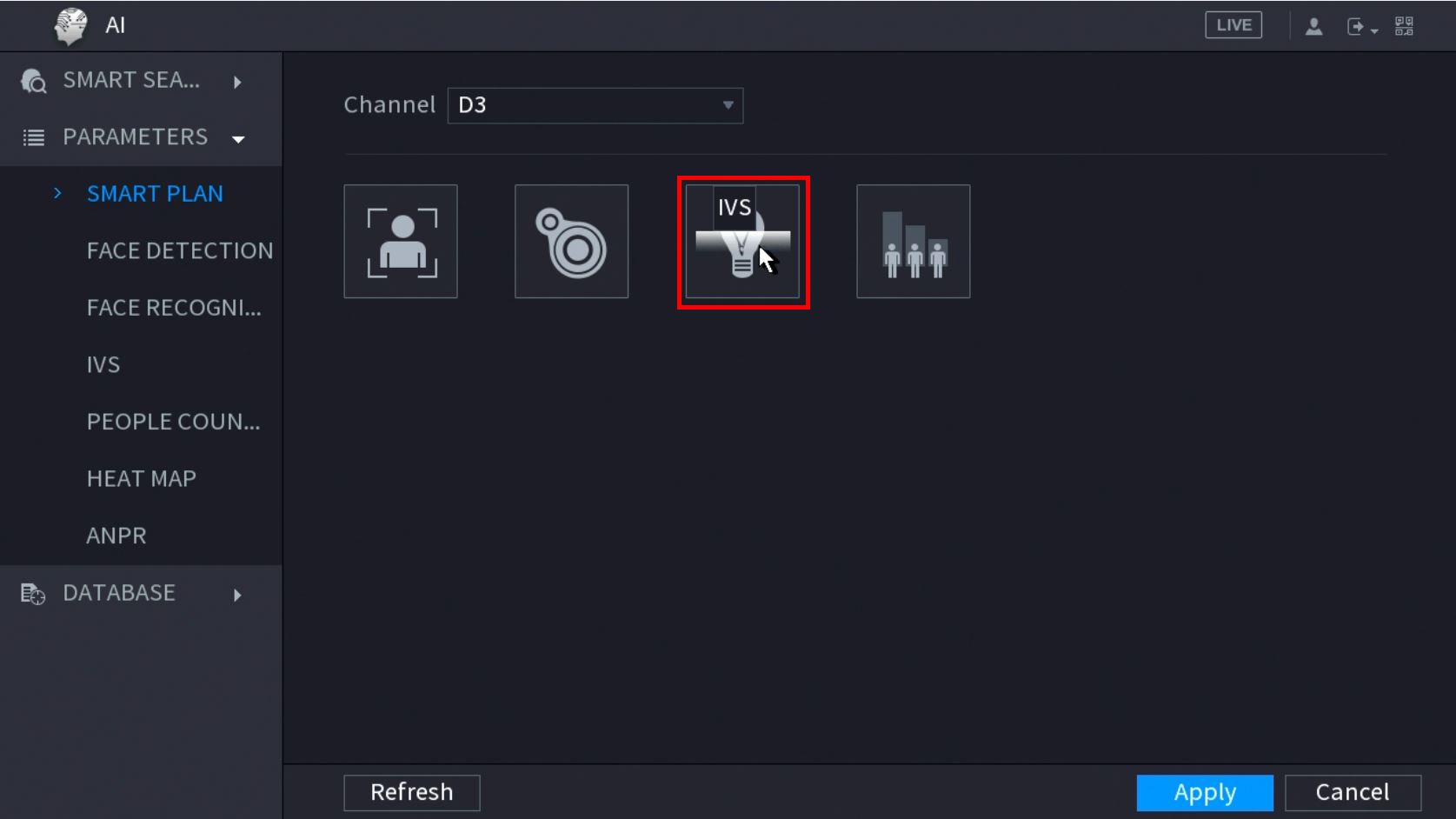

4. Click the IVS icon to enable.
5. Click Parameters > IVS

6. Use the drop-down box to select the Channel

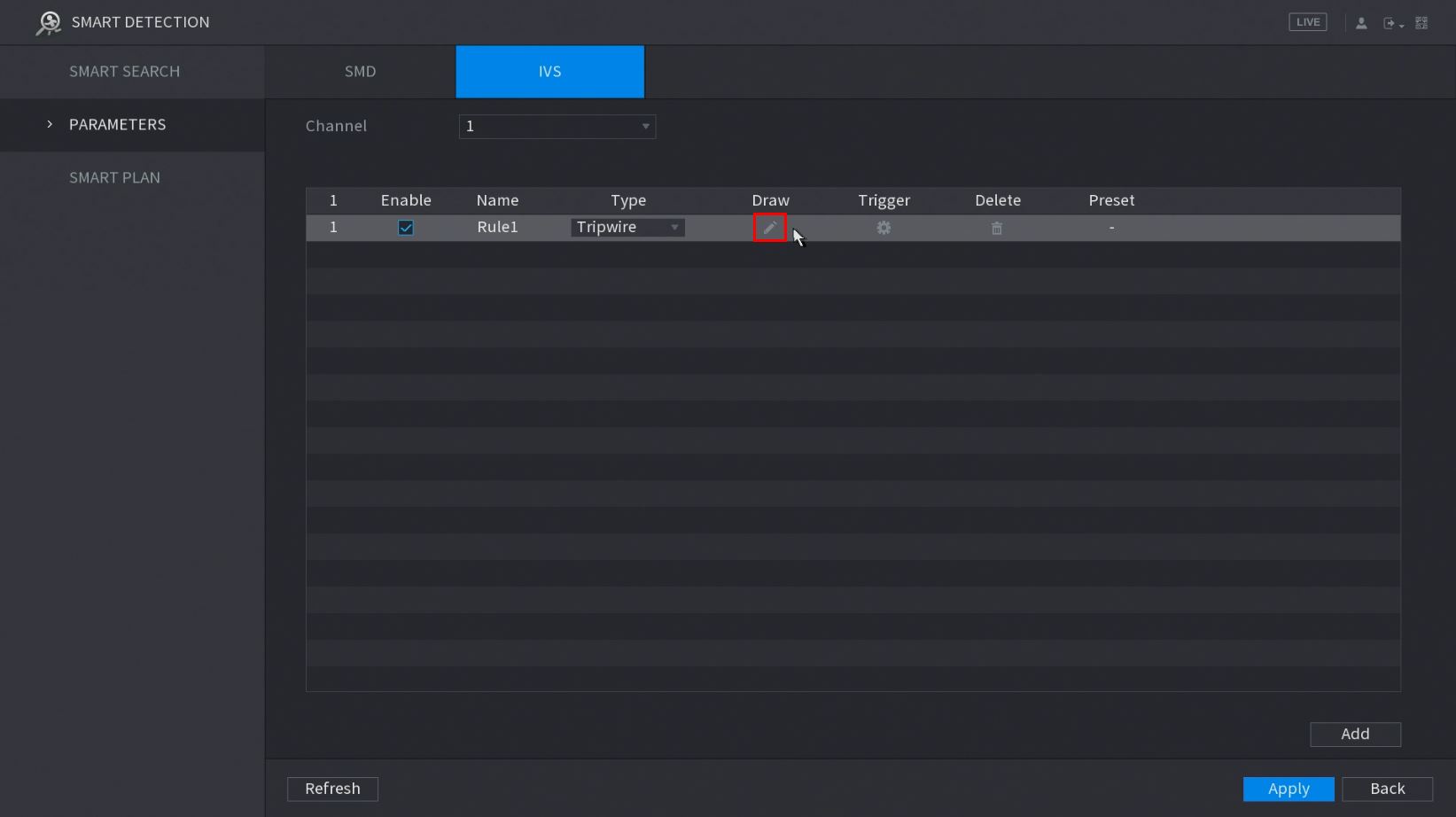

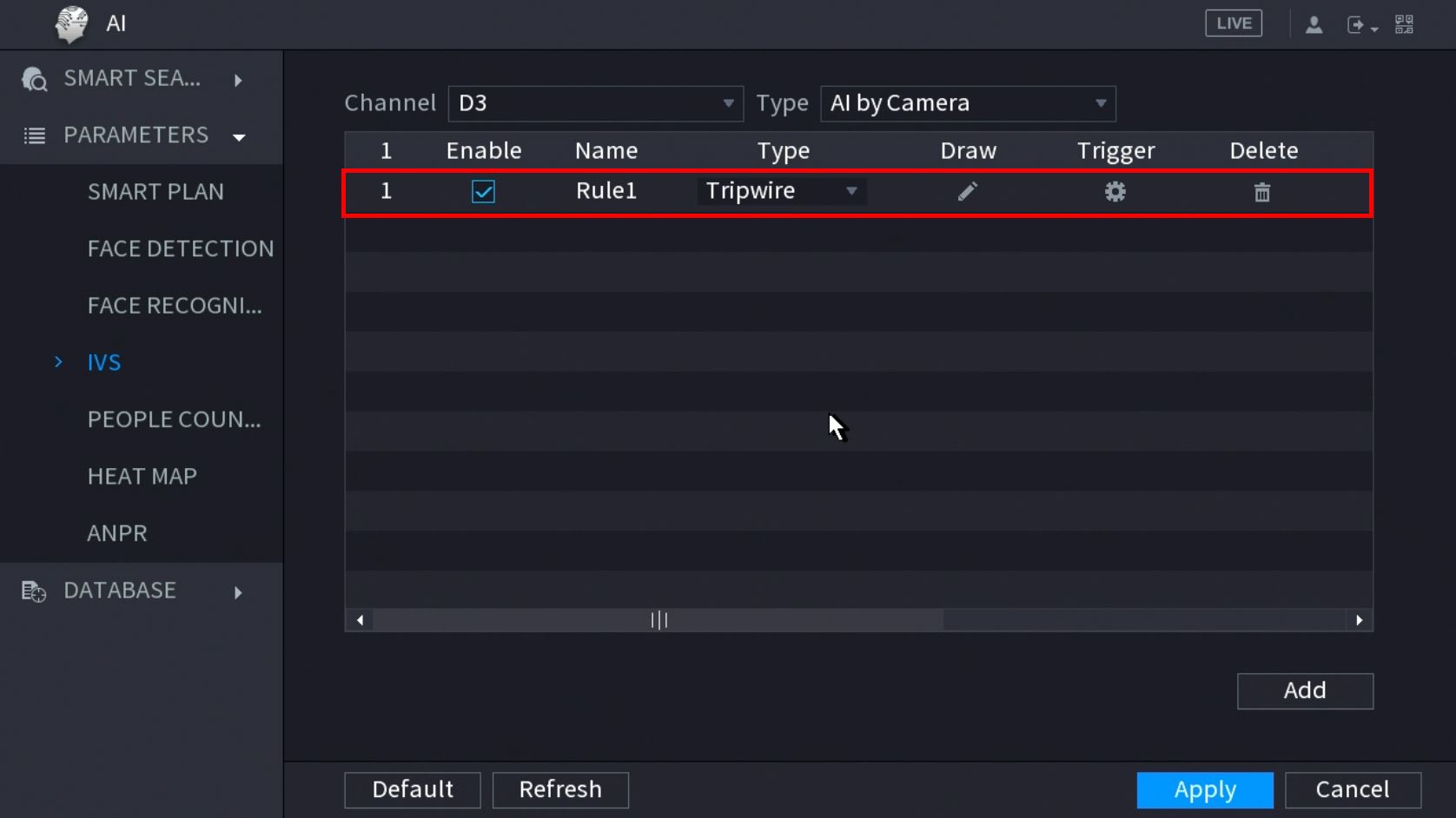

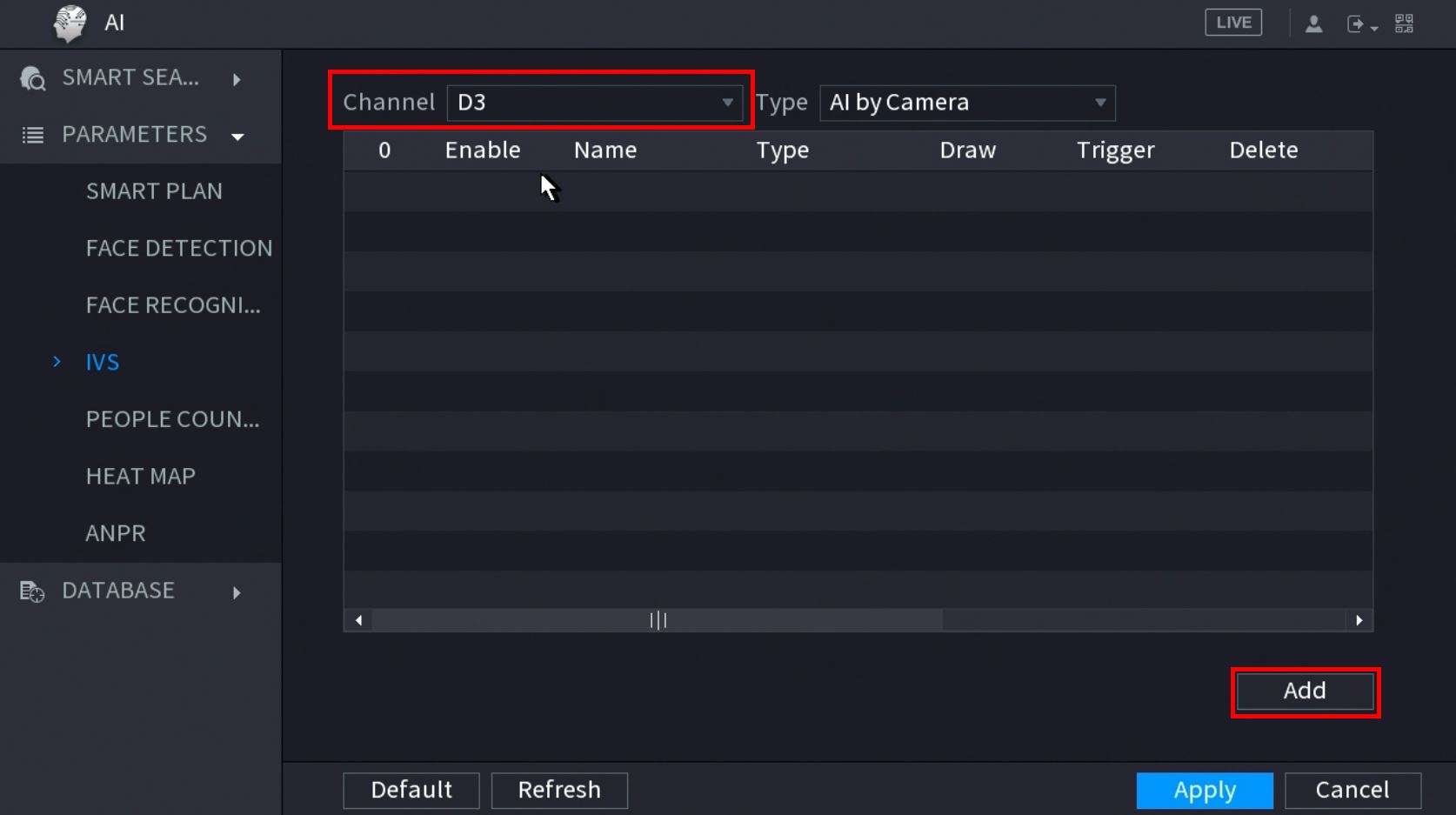

Then click Add in the lower right side of the screen to Add an IVS rule7. The created rule will appear in the list 9. Click the Pencil icon to draw the Tripwire rule 10. The Channel will fullscreen.

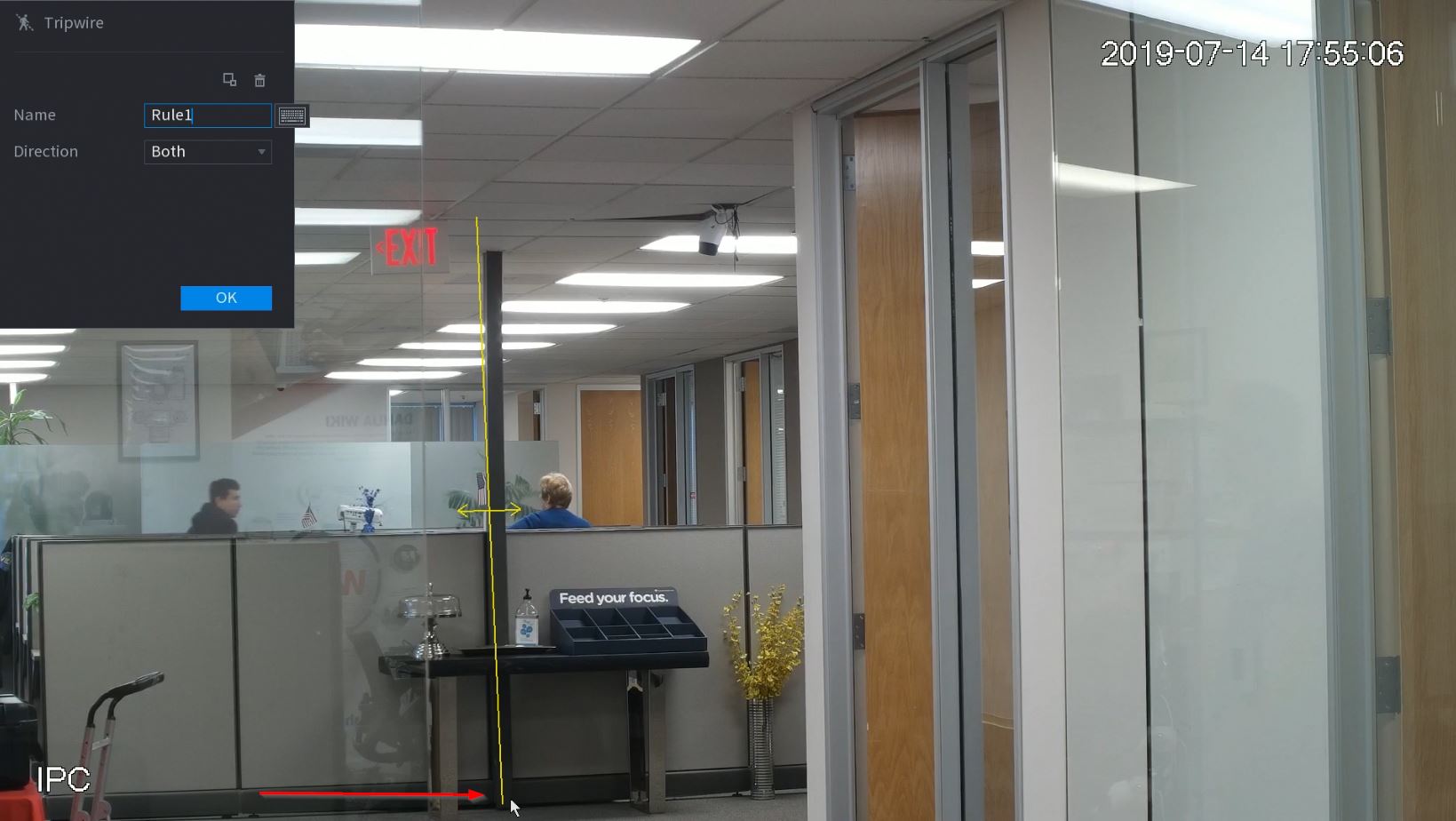

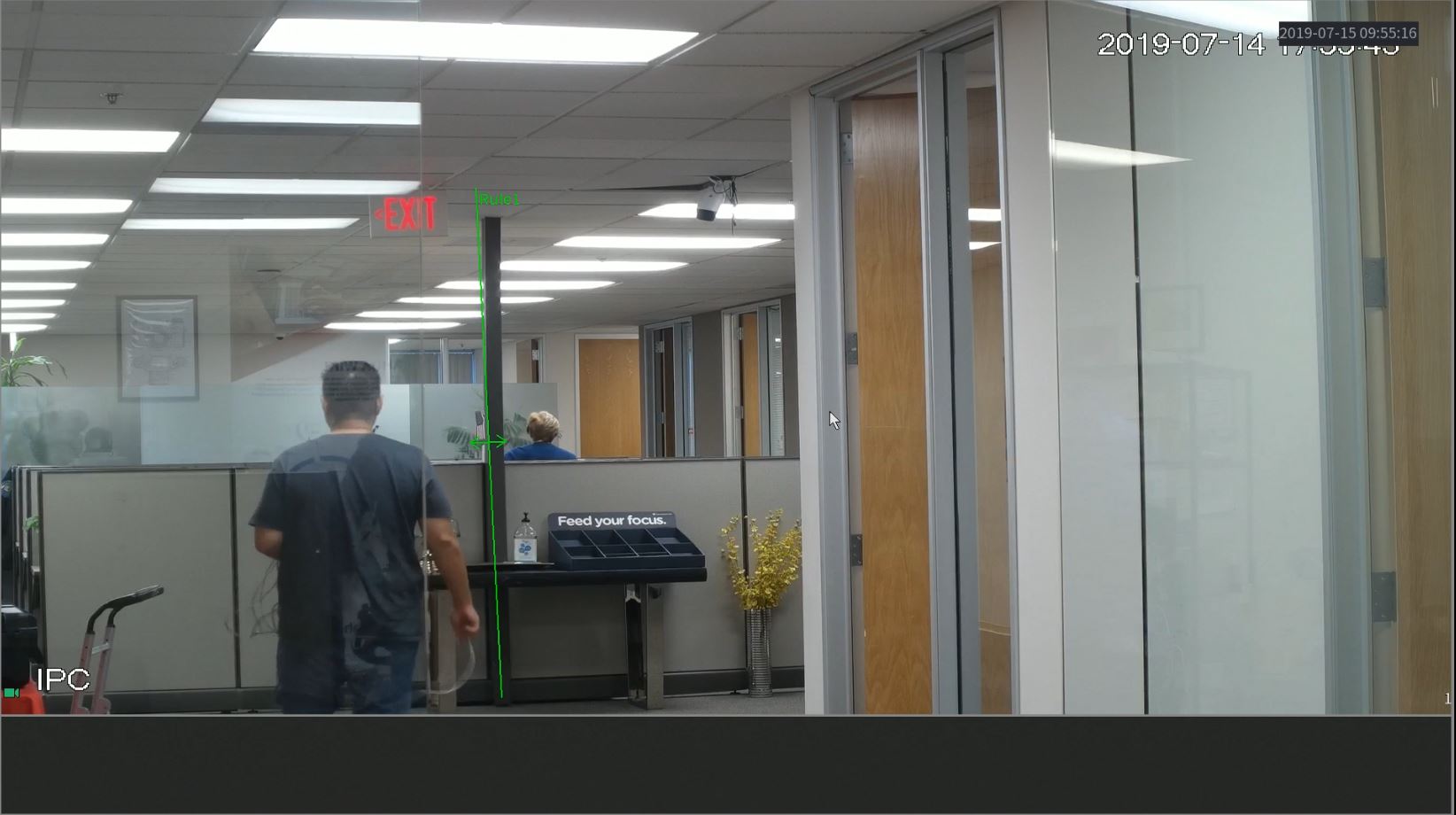

Left click anywhere inside the video frame to begin drawing the Trip line, then use the mouse to draw the trip line.

Right click to end drawing

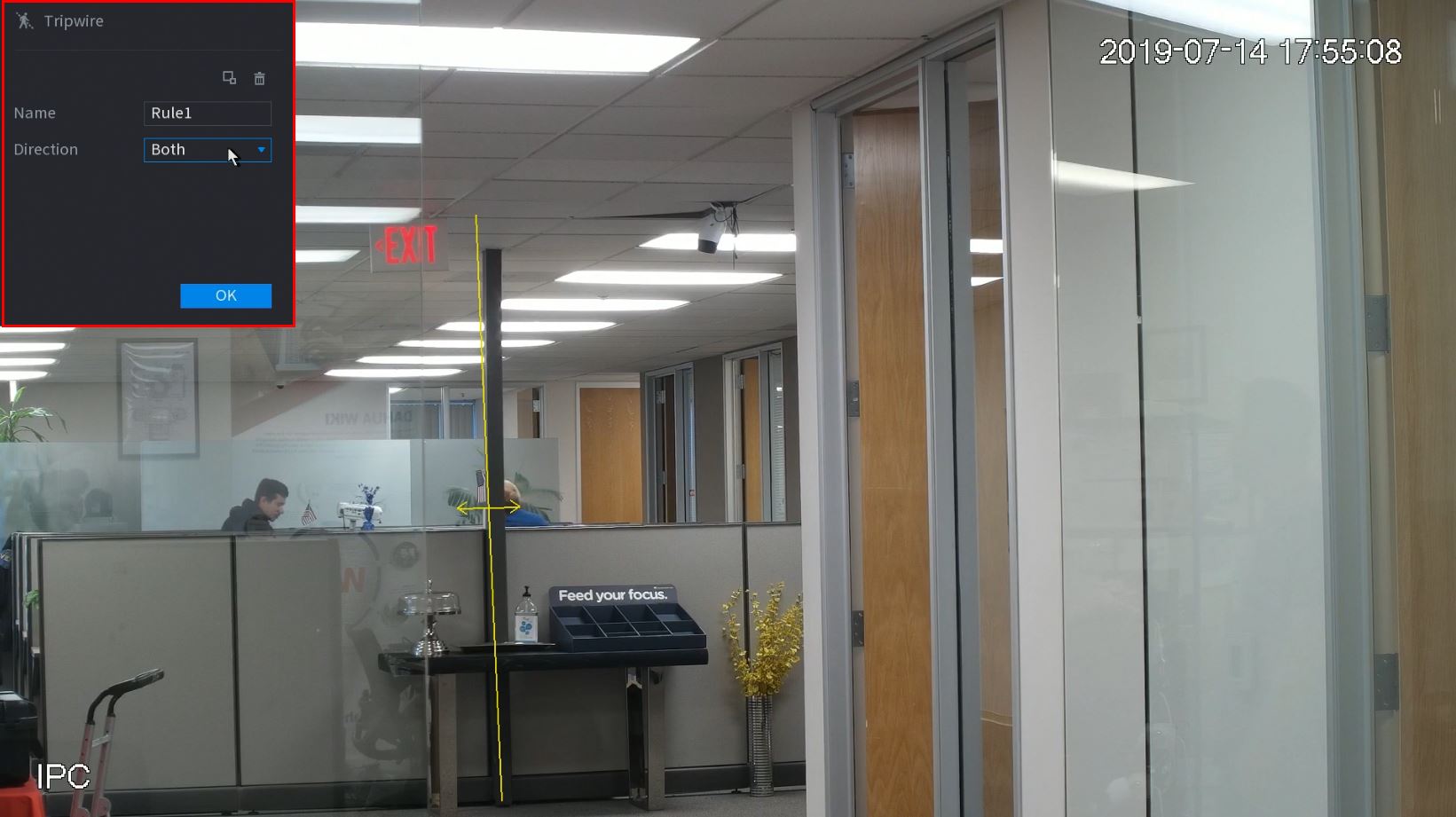

11. The Tripwire menu will appear

• Name: A name can be applied to the rule
• Direction: Both, A To B, B To A

Click  icon to set the Target Filter (maximum and minimum size size for Objects to follow rule)

Click  icon to clear the current rule

Once the tripwire rule settings have been created click OK

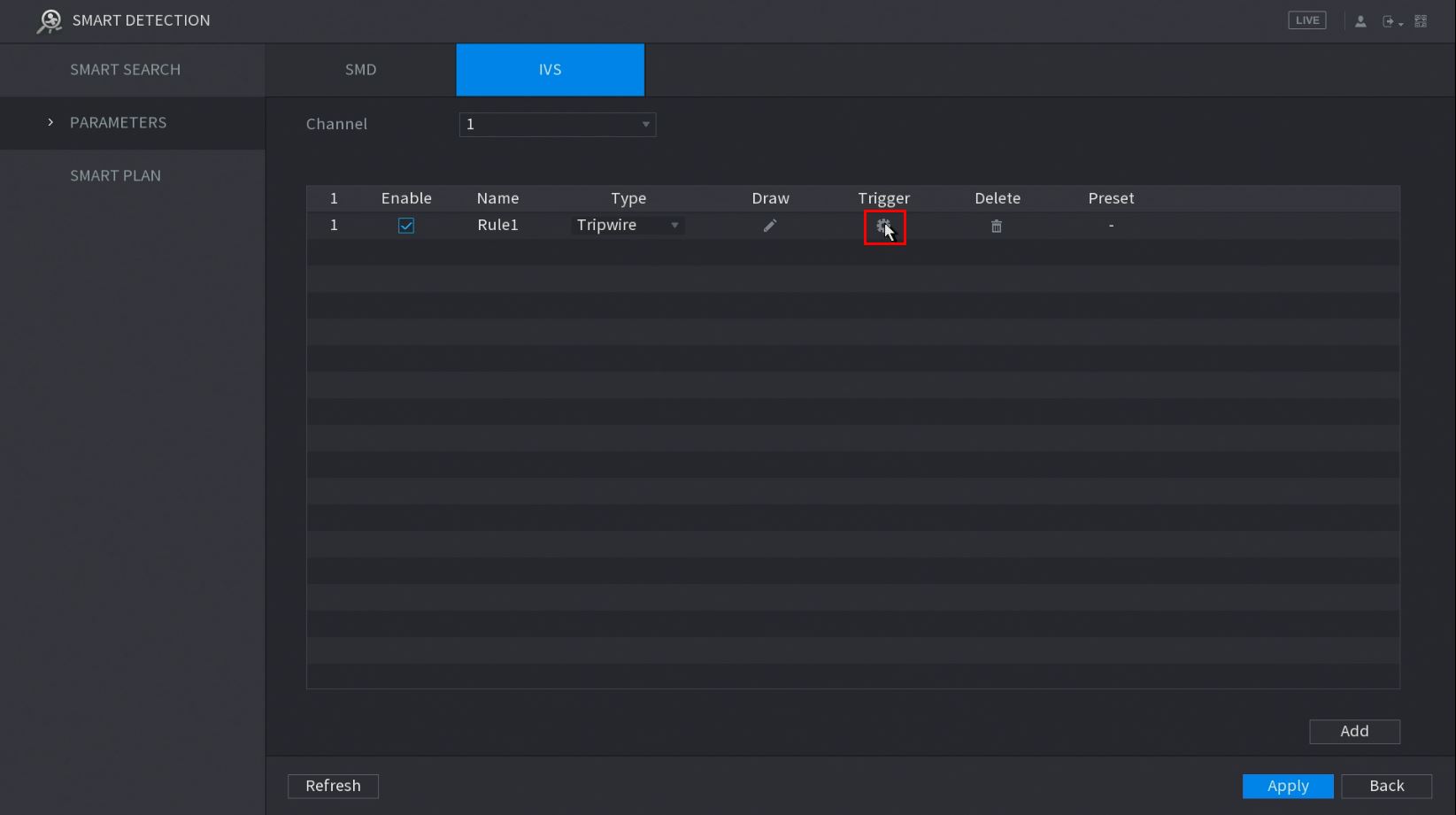

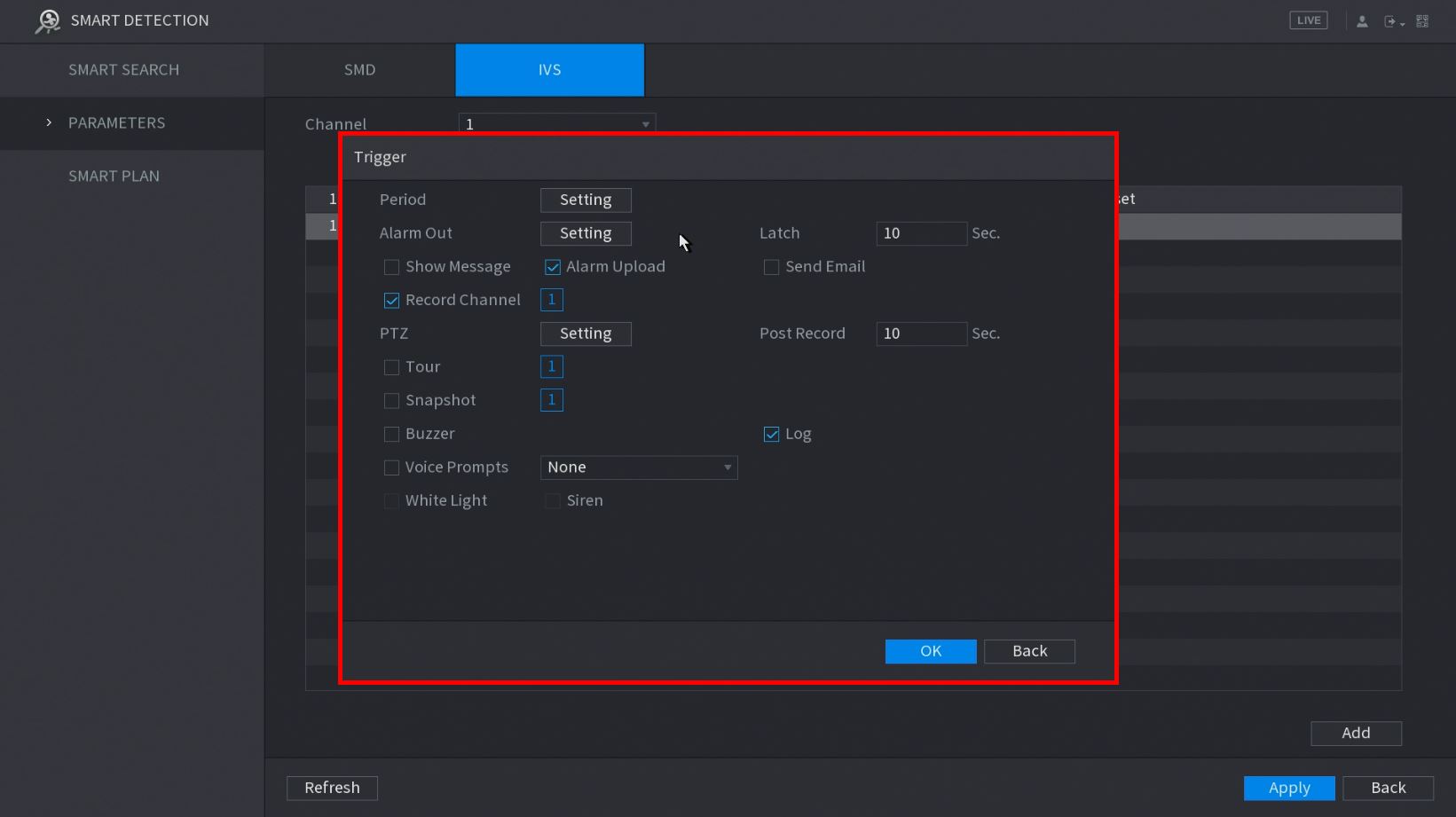

12. Click the icon to set the Trigger settings when the IVS Tripwire rule is engaged.13. The Trigger menu will appear

• Period
• Alarm Out
• Snapshot

Once the trigger rule settings have been created click OK

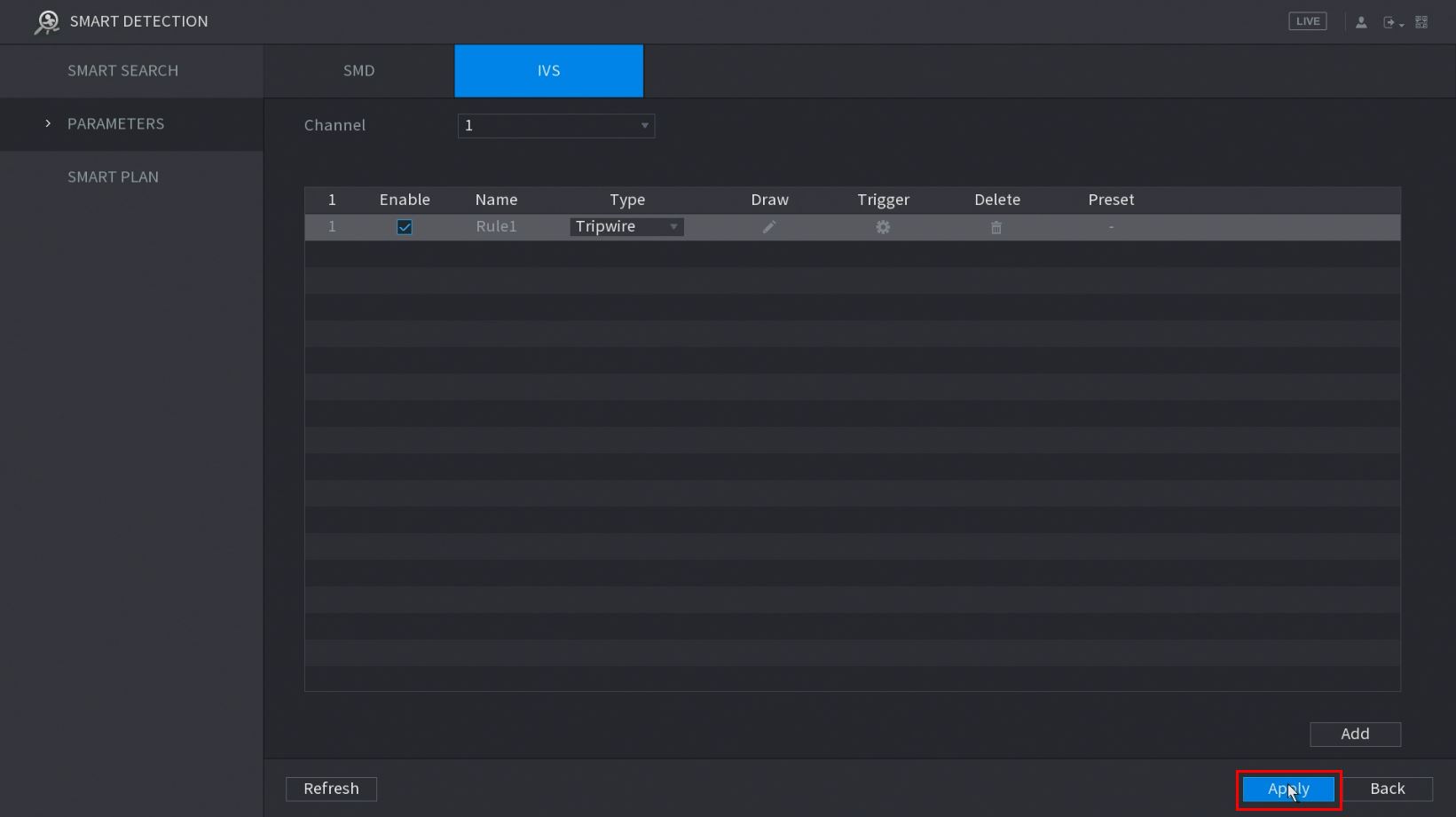

14. Once all Tripwire settings have been configured, Click Apply in the lower right of the screen to save all changes15. The created Tripwire is now programmed
