Uniview NVR301-04-P4 | 4CH NVR 4K NVR ULTRA H.265 up to 8MP resolution 40 MBPS and 4 PoE
• Support Ultra 265/H.265/H.264 video formats
• 4/8/16-channel input
• Plug & Play with 4/8 independent PoE network interfaces
• Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T
• Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
• HDMI and VGA simultaneous output
• Up to 8 Megapixels resolution recording
• 1 SATA HDD up to 8 TB
• ANR technology to enhance the storage reliability when the network is disconnected
• Support cloud upgrade
• Support for P2P, UPnP, NTP, DHCP, PPPoE
• Support for mobile client access
• Mac compatible via EZPlugin software for Safari
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews

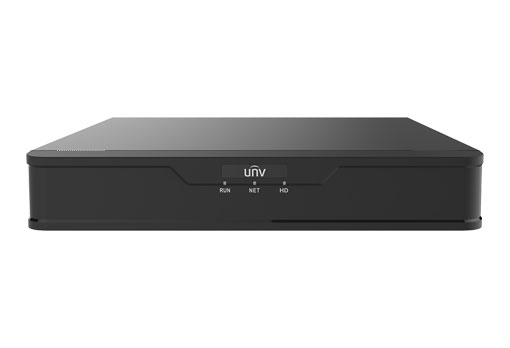

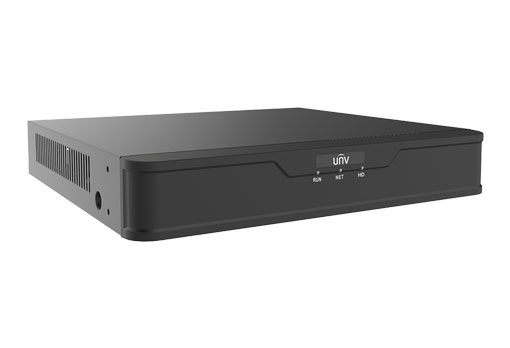

The Uniview 4CH NVR 4K IP Video Recorder is a high-performance network video recorder designed for small to medium-sized surveillance systems. It can record and manage up to four IP cameras simultaneously, providing users with a reliable and efficient surveillance solution.
The NVR supports H.265 video compression technology, which provides superior video quality while reducing storage and bandwidth requirements. It also supports a maximum recording resolution of 8MP, allowing users to capture high-quality images with fine details.
The device includes 4 PoE (Power over Ethernet) ports, which can power and transmit data to compatible cameras over a single network cable, reducing the need for additional power supplies or cables.
The NVR also features a user-friendly interface that simplifies configuration and management. It includes advanced features such as motion detection, alarm management, and remote access, enabling users to monitor their surveillance system from anywhere with an internet connection.
The NVR supports a maximum recording bandwidth of 40Mbps, allowing for smooth and high-quality video playback. It also includes various playback modes, including smart search and event playback, allowing users to quickly and easily retrieve video footage for analysis or investigation.
Overall, the Uniview 4CH NVR 4K IP Video Recorder is a reliable and cost-effective solution for small to medium-sized surveillance systems. Its advanced features, high-quality video, and user-friendly interface make it an ideal choice for businesses, government agencies, and other organizations that require a reliable and efficient surveillance solution.
• Support Ultra 265/H.265/H.264 video formats
• 4/8/16-channel input
• Plug & Play with 4/8 independent PoE network interfaces
• Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T
• Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
• HDMI and VGA simultaneous output
• Up to 8 Megapixels resolution recording
• 1 SATA HDD up to 8 TB
• ANR technology to enhance the storage reliability when the network is disconnected
• Support cloud upgrade
• Support for P2P, UPnP, NTP, DHCP, PPPoE
• Support for mobile client access
• Mac compatible via EZPlugin software for Safari
NVR301-04-P4 | NVR301-08-P8 | NVR301-16-P8 | |
Video/Audio Input | |||
IP Video Input | 4-ch | 8-ch | 16-ch |
Two-way Audio Input | 1-ch, RCA | ||
Network | |||
Incoming Bandwidth | 40Mbps | 60Mbps | 60Mbps |
Outgoing Bandwidth | 64Mbps | 64Mbps | 80Mbps |
Remote Users | 128 | ||
Protocols | P2P, UPnP, NTP, DHCP, PPPoE | ||
Video/Audio Output | |||
HDMI/VGA Output | HDMI: 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz | ||
Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||
Audio Output | 1-ch, RCA | ||
Synchronous Playback | 4-ch | 8-ch | 16-ch |
Corridor Mode Screen | 3/4 | 3/4/5/7/9 | 3/4/5/7/9/10/12/16 |
Decoding | |||
Decoding format | Ultra 265, H.265, H.264 | ||
Live view /Playback | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | ||
Capability | 1 x 4K@30, 2 x 4MP@30, 4 x 1080p@30, 8 x 720p@30, 16 x D1 | ||
Hard Disk | |||
SATA | 1 SATA interface | ||
Capacity | up to 8TB for each disk | ||
Smart | |||
VCA Detection | Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking | ||
VCA Search | Face search, Behavior search | ||
Statistical Analysis | People counting | ||
External Interface | |||
Network Interface | 1 RJ-45 10M/100M self-adaptive Ethernet Interface | ||
USB Interface | Rear panel：2 x USB2.0, Front panel：1 x USB2.0 | ||
Alarm In | 4-ch | ||
Alarm Out | 1-ch | ||
PoE | |||
Interface | 4 independent 100 Mbps PoEnetwork interfaces | 8 independent 100 Mbps PoEnetwork interfaces | |
Max Power | Max 30W for single port Max 54W in total ( 13.5W for each ) | Max 30W for single port Max 108W in total ( 13.5W for each ) | |
Supported Standard | IEEE 802.3at, IEEE 802.3af | ||
General | |||
Power Supply | 48V DC Power Consumption: ≤ 5 W( without HDD ) | 52V DC Power Consumption: ≤ 5 W( without HDD ) | |
Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) | ||
Dimensions(W×D×H) | 260mm ×240mm × 44mm (10.2" ×9.4" ×1.7") | ||
Weight ( without HDD ) | ≤ 1.12 Kg ( 2.47 lb ) | ||
- ManufacturerUniview
- Shipping Lead TimeShips Same Day
- Number of Channels4 Channels
- Recorder TypeNVR (with PoE Ports)
