8 Channels 2MP UNV KIT - IPC3612ER3 /NVR302-09S

Uniview
SKU: SKU15

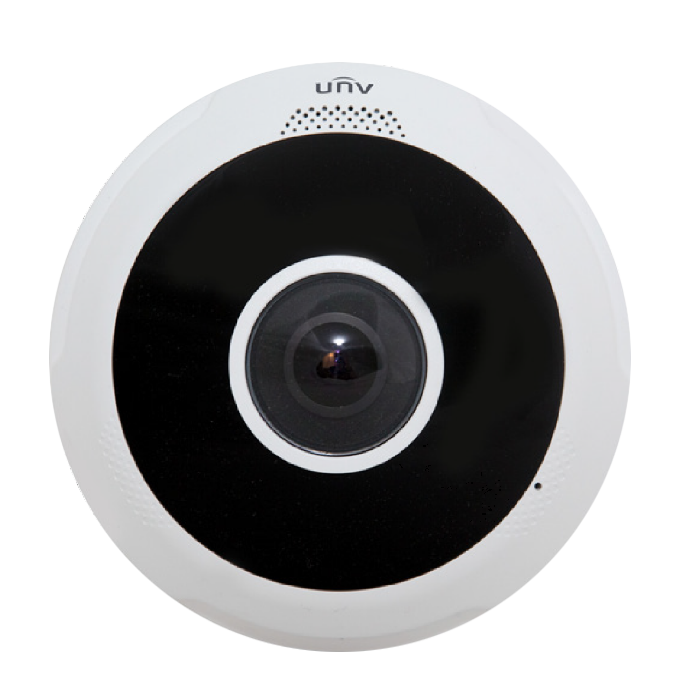

2MP Fixed Dome Network Camera

Optics

* Day/night functionality

* Optical glass window with higher light transmittance

* IR anti-reflection window to increase the infrared transmittance

* Smart IR, up to 30 m (98 ft) IR distance

* 2D/3D DNR (Digital Noise Reduction)

Compression

* Ultra 265, H.264, MJPEG

* Embedded smart algorithm

* Triple streams

* 9:16 corridor mode

Network

* ONVIF Conformance

Structure

* Wide temperature range: -35°C to 60°C (-31°F to 140°F)

* Wide voltage range of ±25%

* 4 KV surge protection designed for network interface

* IP67

* 3-Axis


 WEC3612ER3-PF40M-C
Camera
Sensor1/2.7", 2.0 megapixel, progressive scan, CMOS
Lens2.8mm@F1.64.0mm@F1.6
DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)
2.84216.88.44.2
46024126
Angle of view (H)112.7°86.5°
Angle of View (V)60.1°44.1°
Angle of View (O)146.5°106.4°
Adjustment anglePan: 0° ~ 360°Tilt: 0° ~ 90°Rotate: 0° ~ 360°
ShutterAuto/Manual, 1 ~ 1/100000s
Minimum IlluminationColour: 0.005Lux (F1.6, AGC ON)
0Lux with IR
Day/NightIR-cut filter with auto switch (ICR)
Digital noise reduction2D/3D DNR
S/N>52dB
IR RangeUp to 30m (98ft) IR range
DefogDigital Defog
WDRDWDR
Video
Video CompressionUltra 265, H.264, MJPEG
H.264 code profileBaseline profile, Main Profile, High Profile
Frame RateMain Stream: 2MP (1920*1080), Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
HLCSupported
BLCSupported
9:16 Corridor ModeSupported
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas
ROIUp to 8 areas
Motion DetectionUp to 4 areas
Smart
Behavior DetectionIntrusion, cross line, motion detection
IntrusionEnter and loiter in a pre-defined virtual region
cross lineCross a pre-defined virtual line
motion detectionMoving within a pre-defined virtual region
RecognitionFace detection, Audio detection
Intelligent IdentificationDefocus, Scene Change, Object Left, Object Moving
Statistical AnalysisPeople counting
General FunctionWatermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, QoS
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API
Interface
Network1 RJ45 10M/100M Base-TX Ethernet
General
PowerDC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 4.5W
Dimensions (Ø x H)Φ126 x 94mm (Ø5.0” x 3.7”)
Weight0.45kg (0.99lb)
Operating Conditions-35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress ProtectionIP67

Data Sheet



User manual



WEC3600 Series-Network Mini Dome Cameras Quick Guide-V1.01



Camera Installation Guide-V1.00



  • $1201.05

OR

The 8 Channels 2MP UNV Kit with IPC3612ER3 cameras and NVR302-09S is a complete video surveillance solution designed for small to medium-sized businesses. The kit includes four IPC3612ER3 network cameras, each with a 2-megapixel resolution and a 3.6mm fixed lens. These cameras are designed to deliver high-quality video footage, even in low-light conditions, thanks to their advanced imaging technology.

The cameras are equipped with IR LEDs for night vision, allowing you to capture clear video footage even in complete darkness. They are also weather-resistant and vandal-proof, making them suitable for outdoor use in a range of environments.

The NVR302-09S network video recorder is capable of recording footage from all four cameras simultaneously, with a maximum resolution of 2 megapixels. It features H.265/H.264 video compression, which helps to reduce the amount of storage space required for video footage without sacrificing image quality.

The NVR supports up to 8 channels of video input and includes 8 built-in PoE ports for easy installation and setup. It also includes a range of advanced features, such as motion detection, video playback, and remote access via a web browser or mobile app.

The kit includes everything you need to set up your video surveillance system, including power cables, network cables, and mounting hardware for the cameras. The cameras are easy to install and configure, with a user-friendly interface that allows you to customize settings to your specific needs.

Overall, the 8 Channels 2MP UNV Kit with IPC3612ER3 cameras and NVR302-09S is a reliable and effective video surveillance solution for small to medium-sized businesses. Whether you're looking to monitor your office, retail store, or other commercial property, this kit provides the features and capabilities you need to keep your property safe and secure.

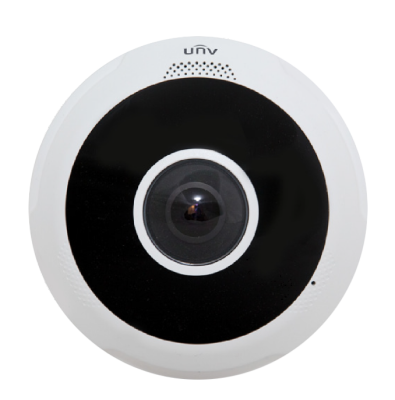

2MP Fixed Dome Network Camera

Optics

* Day/night functionality

* Optical glass window with higher light transmittance

* IR anti-reflection window to increase the infrared transmittance

* Smart IR, up to 30 m (98 ft) IR distance

* 2D/3D DNR (Digital Noise Reduction)

Compression

* Ultra 265, H.264, MJPEG

* Embedded smart algorithm

* Triple streams

* 9:16 corridor mode

Network

* ONVIF Conformance

Structure

* Wide temperature range: -35°C to 60°C (-31°F to 140°F)

* Wide voltage range of ±25%

* 4 KV surge protection designed for network interface

* IP67

* 3-Axis


 WEC3612ER3-PF40M-C
Camera
Sensor1/2.7", 2.0 megapixel, progressive scan, CMOS
Lens2.8mm@F1.64.0mm@F1.6
DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)
2.84216.88.44.2
46024126
Angle of view (H)112.7°86.5°
Angle of View (V)60.1°44.1°
Angle of View (O)146.5°106.4°
Adjustment anglePan: 0° ~ 360°Tilt: 0° ~ 90°Rotate: 0° ~ 360°
ShutterAuto/Manual, 1 ~ 1/100000s
Minimum IlluminationColour: 0.005Lux (F1.6, AGC ON)
0Lux with IR
Day/NightIR-cut filter with auto switch (ICR)
Digital noise reduction2D/3D DNR
S/N>52dB
IR RangeUp to 30m (98ft) IR range
DefogDigital Defog
WDRDWDR
Video
Video CompressionUltra 265, H.264, MJPEG
H.264 code profileBaseline profile, Main Profile, High Profile
Frame RateMain Stream: 2MP (1920*1080), Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
HLCSupported
BLCSupported
9:16 Corridor ModeSupported
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas
ROIUp to 8 areas
Motion DetectionUp to 4 areas
Smart
Behavior DetectionIntrusion, cross line, motion detection
IntrusionEnter and loiter in a pre-defined virtual region
cross lineCross a pre-defined virtual line
motion detectionMoving within a pre-defined virtual region
RecognitionFace detection, Audio detection
Intelligent IdentificationDefocus, Scene Change, Object Left, Object Moving
Statistical AnalysisPeople counting
General FunctionWatermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, QoS
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API
Interface
Network1 RJ45 10M/100M Base-TX Ethernet
General
PowerDC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 4.5W
Dimensions (Ø x H)Φ126 x 94mm (Ø5.0” x 3.7”)
Weight0.45kg (0.99lb)
Operating Conditions-35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress ProtectionIP67

Data Sheet



User manual



WEC3600 Series-Network Mini Dome Cameras Quick Guide-V1.01



Camera Installation Guide-V1.00

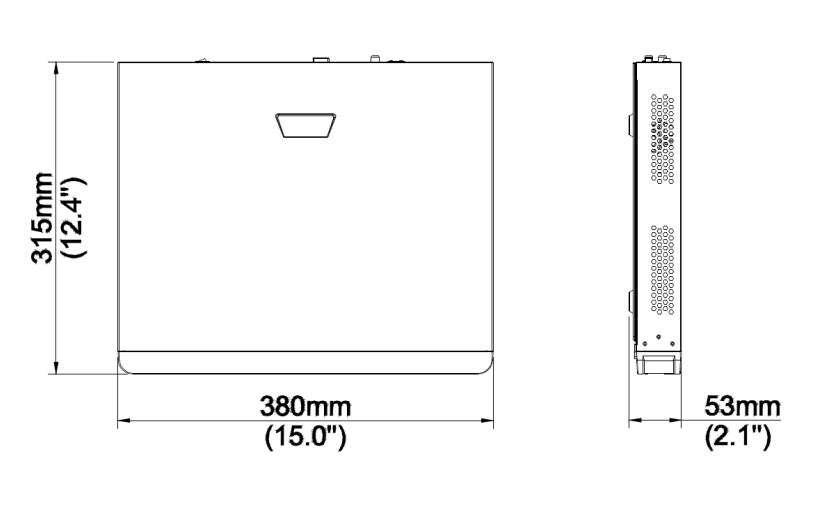

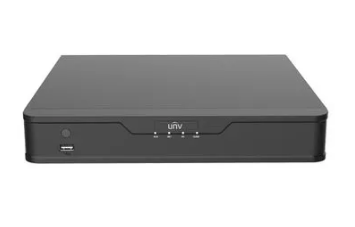

Network Video Recorder - NVR302-09S

17" LED Monitor

Camera packaging contents:



  • Suitable for every Video Surveillance and Security application: displays HDMI digital plus VGA and BNC analog inputs (with looping BNC analog output)
  • Superlative image quality with 16.7 million color capability
  • Resolution:1280 x 1024
  • Customizable video settings in flexible On Screen Display (OSD) Menu with 7 language options
  • Bright LED illuminated panel with 170° H viewing angle
  • LED panel conserves energy and extends service life
  • Included desk stand is easily removable for 100mm VESA mounting



ModelKPM-17
Screen Size17”
Resolution1280 x 1024 @60Hz
Brightness250cd/m2
Contrast Ratio1000:01:00
Aspect Ratio5:04
Viewing Angle (H/V)170° / 160°
Pixel Pitch0.264 x 0.264mm
Display Colors16.7 Million
Response Time<5ms
Video SystemNTSC / PAL
Scanning Frequency(H) 31~80 KHz/ (V) 56 ~ 75 Hz
HDMI-In1
VGA-In1
BNC-In/Out1/1
OSD LanguageEnglish, Spanish, French, German, Italian, Portugese, Netherlands
Dimensions (W x H x D)15.12” x 14.1” x 7.8” (384 x 358 x 195mm)
Net Weight8.8lbs (4KG)
Tilt Stand / Tilt RangeFr: 5 / Rear: 15
ColorBlack
VESA Mount100mm x 100mm (M4 x 10mm Screw)
MTBF (Approx)30,000 Hours
Power Consumption<20W
Power Source100~240VAC
Operating Temperature32° ~104° F / 0° ~ 40° C



KPM-17.pdf





    • SKU
      SKU15
    • Weight
      5 lbs
  • Manufacturer
    Uniview
  • Keywords
    UNV KIT
  • Recorder Type
    NVR
  • HDD Storage
    1TB SATA HDD, 2TB SATA HDD, 3TB SATA HDD, 4TB SATA HDD, 6TB SATA HDD, 8TB SATA HDD, 10TB SATA HDD, I have my own SATA HDD
  • IP Camera 1
    UN-NVR30432EPB, UN-UN-IPC2122SR3PF40B, UN-IPC2124SR3DPF36, UN-IPC2124SR3DPF36, UN-IPC2124SR3DPF36, IPC562E-DUG, I have my own IP Camera
  • IP Camera 2
    UN-IPC2222EBR5HDUPF4, UN-IPC2122SR3PF40B, UN-IPC2222ER5DUPF40C, IPC322SR3-DVSPF28-B, IPC322ER3-DUVPF28B, IPC562E-DUG, I have my own IP Camera
  • IP Camera 3
    UN-IPC2222EBR5HDUPF4, UN-IPC2122SR3PF40B, UN-IPC2222ER5DUPF40C, IPC322SR3-DVSPF28-B, IPC322ER3-DUVPF28B, IPC562E-DUG, I have my own IP Camera
  • IP Camera 4
    UN-IPC2222EBR5HDUPF4, UN-IPC2122SR3PF40B, UN-IPC2222ER5DUPF40C, IPC322SR3-DVSPF28-B, IPC322ER3-DUVPF28B, IPC562E-DUG, I have my own IP Camera
  • Network cables and others
    4 pcs. 100 ft CAT6 Pre-made cable, 4 pcs. 50 ft CAT6 Pre-made cable, 4 pcs. 150 ft CAT6 Pre-made cable, 4 pcs. 200 ft CAT6 Pre-made cable, 4 pcs. 300 ft CAT6 Pre-made cable, 1000 ft. CAT5 spool cable + 1 pack 100 pcs. RJ45 Modular Plugs + Crimping Tool, 1000 ft. CAT6 spool black cable, Non UL + 1 pack 100 pcs. RJ45 Modular Plugs + Crimping Tool, I have my own network cables
