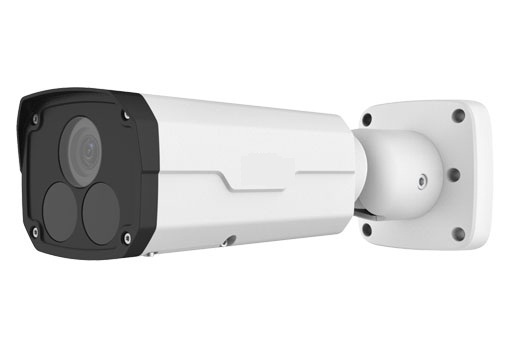

Uniview IPC2222EBR5-HDUPF40 | 2MP WDR Starlight Fixed Bullet Network Camera
SKU: IPC2222EBR5-HDUPF40Optics
Starlight illumination
60fps Frame Rate
Day/night functionality
SmartIR,up to 50 m (164 ft) IR distance
IR anti-reflection window to increase the infrared transmittance
120dB TRUE WDR
2D/3D DNR (Digital Noise Reduction)
Compression
Ultra265,H.265, H.264, MJPEG
Embedded smart algorithm
Triple streams
ROI (Region of Interest)
9:16 corridor format
Network
ONVIF Conformance
Structure
Wide temperature range: -35°C to 60°C (-31°F to 140°F)
Wide voltage range of ±25%
IP67
3-Axis
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
Optics
Starlight illumination
60fps Frame Rate
Day/night functionality
SmartIR,up to 50 m (164 ft) IR distance
IR anti-reflection window to increase the infrared transmittance
120dB TRUE WDR
2D/3D DNR (Digital Noise Reduction)
Compression
Ultra265,H.265, H.264, MJPEG
Embedded smart algorithm
Triple streams
ROI (Region of Interest)
9:16 corridor format
Network
ONVIF Conformance
Structure
Wide temperature range: -35°C to 60°C (-31°F to 140°F)
Wide voltage range of ±25%
IP67
3-Axis
IPC2222EBR5-HDUPF40 | IPC2222EBR5-HDUPF60 | ||||||||
Camera | |||||||||
Sensor | 1/2.8″, 2.0 megapixel, progressive scan, CMOS | ||||||||
Lens | 4.0mm@F1.6 | 6.0mm@F1.6 | |||||||
DORI Distance | Lens (mm) | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | ||||
4.0 | 64.3 | 25.7 | 12.9 | 6.4 | |||||
6.0 | 96.4 | 38.6 | 19.3 | 9.6 | |||||
Angle of View (H) | 78.7° | 53.3° | |||||||
Angle of View (V) | 42.8° | 29.3° | |||||||
Angle of View (O) | 96.8° | 65.5° | |||||||
Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | ||||||
Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||||
Minimum Illumination | Colour: 0.001Lux (F1.6, AGC ON) 0Lux with IR on | ||||||||
Day/Night | IR-cut filter with auto switch (ICR) | ||||||||
Digital noise reduction | 2D/3D DNR | ||||||||
S/N | >52dB | ||||||||
IR Range | Up to 50m (164ft) IR range | ||||||||
Defog | Digital Defog | ||||||||
WDR | 120dB | ||||||||
Video | |||||||||
Video Compression | Ultra265, H.265, H.264, MJPEG | ||||||||
H.264 code profile | Baseline profile, Main Profile, High Profile | ||||||||
Frame Rate | Main Stream: 2MP (1920*1080), Max 60fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps | ||||||||
9:16 Corridor Mode | Supported | ||||||||
HLC | Supported | ||||||||
OSD | Up to 8 OSDs | ||||||||
Privacy Mask | Up to 8 areas | ||||||||
ROI | Up to 8 areas | ||||||||
Smart | |||||||||
Behavior Detection | Intrusion, cross line, motion detection | ||||||||
Intrusion | Enter and loiter in a pre-defined virtual region | ||||||||
cross line | Cross a pre-defined virtual line | ||||||||
motion detection | Moving within a pre-defined virtual region | ||||||||
Recognition: | Face detection | ||||||||
Intelligent Identification | Defocus, Scene Change, Object Left, Object Moving | ||||||||
Statistical Analysis | People counting | ||||||||
General Function | Watermark, IP Address Filtering, output/input Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||||||
Storage | |||||||||
Edge Storage | Micro SD, up to 256GB | ||||||||
Network Storage | ANR | ||||||||
Network | |||||||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS | ||||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||||||
Interface | |||||||||
Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||||||
General | |||||||||
Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||||||
Power consumption: Max 7.5W | |||||||||
Dimensions (L × W × H) | 253.4 × 86 × 71.7mm (9.98” × 3.4” × 2.8”) | ||||||||
Weight | 1.0kg (2.2lb) | ||||||||
Working Environment | -35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||||||
Ingress Protection | IP67 | ||||||||
Vandal Resistant | IK10 |
Infrared
Smart IR Technology: This item comes with infrared technology, meaning not only can you see the longer distances in the dark but to bump up the ante, it also has "Smart IR" which will adjust based on the situation to give you an optimal image.
Ultra 265 Compression
Ultra 265 Real-time Recording and Playback: It's Ultra 265 compression greatly reduces the size of your digital video files without compromising the image quality (compared to other compression standards, such as H.265 & H.264). Ultra 265 is a stable, proven compression technology, which offers unbeatable recording picture quality while at the same time saving you up to 75% in storage and bandwidth costs
