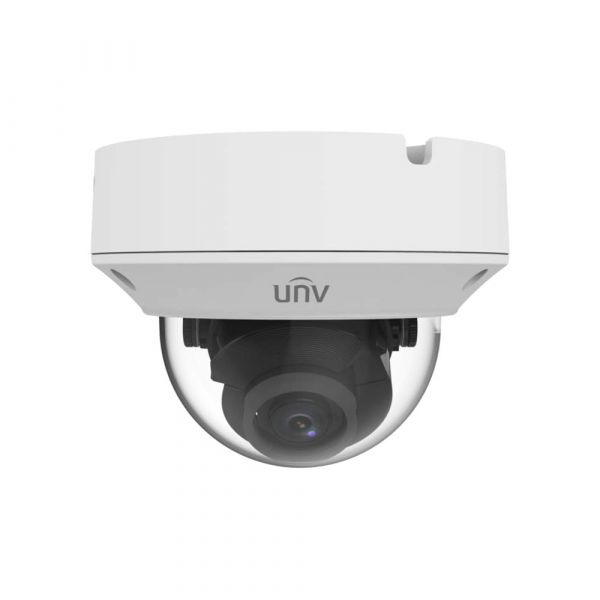

Uniview IPC3238SBADZKI0 | UNV 8MP Dome Network Security Camera
SKU: WEC-UN-3238SBADZKI0
Optics
- Day/night functionality
- Smart IR, up to 40m (131ft) IR distance
- Up to 120 dB WDR (Wide Dynamic Range)
- 2D/3D DNR (Digital Noise Reduction)
Compression
- Ultra 265, H.264, MJPEG
- ROI (Region of Interest)
- Customized OSD
Network
- ONVIF Conformance
Structure - Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
- Wide input voltage range of ±25%
- IK10 vandal resistant
- IP67
- 3-Axis
Image Sensor | 1/2.8", 8.0 megapixel, progressive scan, CMOS | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Image Size | (3840*2160) | |||||||||||||||
Electronic Shutter | 1/2.8", 8.0 megapixel, progressive scan, CMOS | |||||||||||||||
Minimum Illumination | Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR on | |||||||||||||||
Focal Length | 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens | |||||||||||||||
DORI Distance |
| |||||||||||||||
IR Distance | Up to 40m (131ft) IR range | |||||||||||||||
S/N Ratio | More than 56dB | |||||||||||||||
Angle of View | Horizontal: 106.25°~ 30.42° ; Vertical: 56.36°~ 17.22° ; Diagnal: 110.34°~34.18° | |||||||||||||||
Angle Adjustment | Pan: 3° ~ 360° Tilt: 0° ~ 68° Rotate: 3° ~ 360° | |||||||||||||||
Defog | Digital Defog | |||||||||||||||
Wide Dynamic Range | 120dB | |||||||||||||||
OSD | Yes | |||||||||||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||||||||||
Video Frame Rate | Main Stream: 8MP (3840*2160), Max 20fps;5MP (3072*1728), Max 25fps; 4MP (2560*1440), Max 25fps; 1080P (1920*1080), Max 30fps; Sub Stream:D1(720*576), Max 30fps; Third Stream: CIF (352*288), Max 30fps; | |||||||||||||||
Day / Night | IR-cut filter with auto switch (ICR) | |||||||||||||||
BLC Mode | Yes | |||||||||||||||
HLC | Yes | |||||||||||||||
ROI | Up to 8 areas | |||||||||||||||
Digital Noise Reduction | 2D/3D DNR | |||||||||||||||
Motion Detection | Up to 4 areas | |||||||||||||||
Privacy Masking | Up to 4 areas | |||||||||||||||
Behavior Detection | Line crossing detection, Intrusion detection, Region entrance detection, Region exit detection ;Motion detection, Tampering alarm, Audio Detection | |||||||||||||||
Statistical Analysis | People counting | |||||||||||||||
Audio Compression | G.711 | |||||||||||||||
Audio In | Input: impedance 35kΩ; amplitude 2V [p-p] | |||||||||||||||
Audio Out | Output: impedance 600Ω; amplitude 2V [p-p] | |||||||||||||||
Alarm In | 1CH | |||||||||||||||
Alarm Out | 1CH | |||||||||||||||
Network Protocol | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL | |||||||||||||||
Storage | ANR | |||||||||||||||
Storage Card | Micro SD, up to 256GB | |||||||||||||||
Web Viewer | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |||||||||||||||
Mobile | iPhone, Android | |||||||||||||||
Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | |||||||||||||||
Power Supply | DC 12V±25%, PoE (IEEE 802.3af) | |||||||||||||||
Power Consumption | Power consumption: Max 5.5W | |||||||||||||||
Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||||||||||
Storage Temperature | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||||||||||
Ingress Protection | IP67 | |||||||||||||||
Dimensions | Φ148 x 111mm (Ø5.8” x 4.4”) | |||||||||||||||
Weight | 0.45kg (0.99lb) |
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
Optics
- Day/night functionality
- Smart IR, up to 40m (131ft) IR distance
- Up to 120 dB WDR (Wide Dynamic Range)
- 2D/3D DNR (Digital Noise Reduction)
Compression
- Ultra 265, H.264, MJPEG
- ROI (Region of Interest)
- Customized OSD
Network
- ONVIF Conformance
Structure - Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
- Wide input voltage range of ±25%
- IK10 vandal resistant
- IP67
- 3-Axis
Image Sensor | 1/2.8", 8.0 megapixel, progressive scan, CMOS | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Image Size | (3840*2160) | |||||||||||||||
Electronic Shutter | 1/2.8", 8.0 megapixel, progressive scan, CMOS | |||||||||||||||
Minimum Illumination | Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR on | |||||||||||||||
Focal Length | 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens | |||||||||||||||
DORI Distance |
| |||||||||||||||
IR Distance | Up to 40m (131ft) IR range | |||||||||||||||
S/N Ratio | More than 56dB | |||||||||||||||
Angle of View | Horizontal: 106.25°~ 30.42° ; Vertical: 56.36°~ 17.22° ; Diagnal: 110.34°~34.18° | |||||||||||||||
Angle Adjustment | Pan: 3° ~ 360° Tilt: 0° ~ 68° Rotate: 3° ~ 360° | |||||||||||||||
Defog | Digital Defog | |||||||||||||||
Wide Dynamic Range | 120dB | |||||||||||||||
OSD | Yes | |||||||||||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||||||||||
Video Frame Rate | Main Stream: 8MP (3840*2160), Max 20fps;5MP (3072*1728), Max 25fps; 4MP (2560*1440), Max 25fps; 1080P (1920*1080), Max 30fps; Sub Stream:D1(720*576), Max 30fps; Third Stream: CIF (352*288), Max 30fps; | |||||||||||||||
Day / Night | IR-cut filter with auto switch (ICR) | |||||||||||||||
BLC Mode | Yes | |||||||||||||||
HLC | Yes | |||||||||||||||
ROI | Up to 8 areas | |||||||||||||||
Digital Noise Reduction | 2D/3D DNR | |||||||||||||||
Motion Detection | Up to 4 areas | |||||||||||||||
Privacy Masking | Up to 4 areas | |||||||||||||||
Behavior Detection | Line crossing detection, Intrusion detection, Region entrance detection, Region exit detection ;Motion detection, Tampering alarm, Audio Detection | |||||||||||||||
Statistical Analysis | People counting | |||||||||||||||
Audio Compression | G.711 | |||||||||||||||
Audio In | Input: impedance 35kΩ; amplitude 2V [p-p] | |||||||||||||||
Audio Out | Output: impedance 600Ω; amplitude 2V [p-p] | |||||||||||||||
Alarm In | 1CH | |||||||||||||||
Alarm Out | 1CH | |||||||||||||||
Network Protocol | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL | |||||||||||||||
Storage | ANR | |||||||||||||||
Storage Card | Micro SD, up to 256GB | |||||||||||||||
Web Viewer | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |||||||||||||||
Mobile | iPhone, Android | |||||||||||||||
Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | |||||||||||||||
Power Supply | DC 12V±25%, PoE (IEEE 802.3af) | |||||||||||||||
Power Consumption | Power consumption: Max 5.5W | |||||||||||||||
Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||||||||||
Storage Temperature | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||||||||||
Ingress Protection | IP67 | |||||||||||||||
Dimensions | Φ148 x 111mm (Ø5.8” x 4.4”) | |||||||||||||||
Weight | 0.45kg (0.99lb) |
- ManufacturerUniview
- Camera TypeDome
- Camera SignalIP
- Camera Resolution8 Megapixel
- Lens Size2.8-12mm
- Shipping Lead TimeShips Same Day
- Infrared Distance131 ft
- Warranty3 Year warranty
- Remote Login SupportNo Login Support Needed, 1 Time FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
