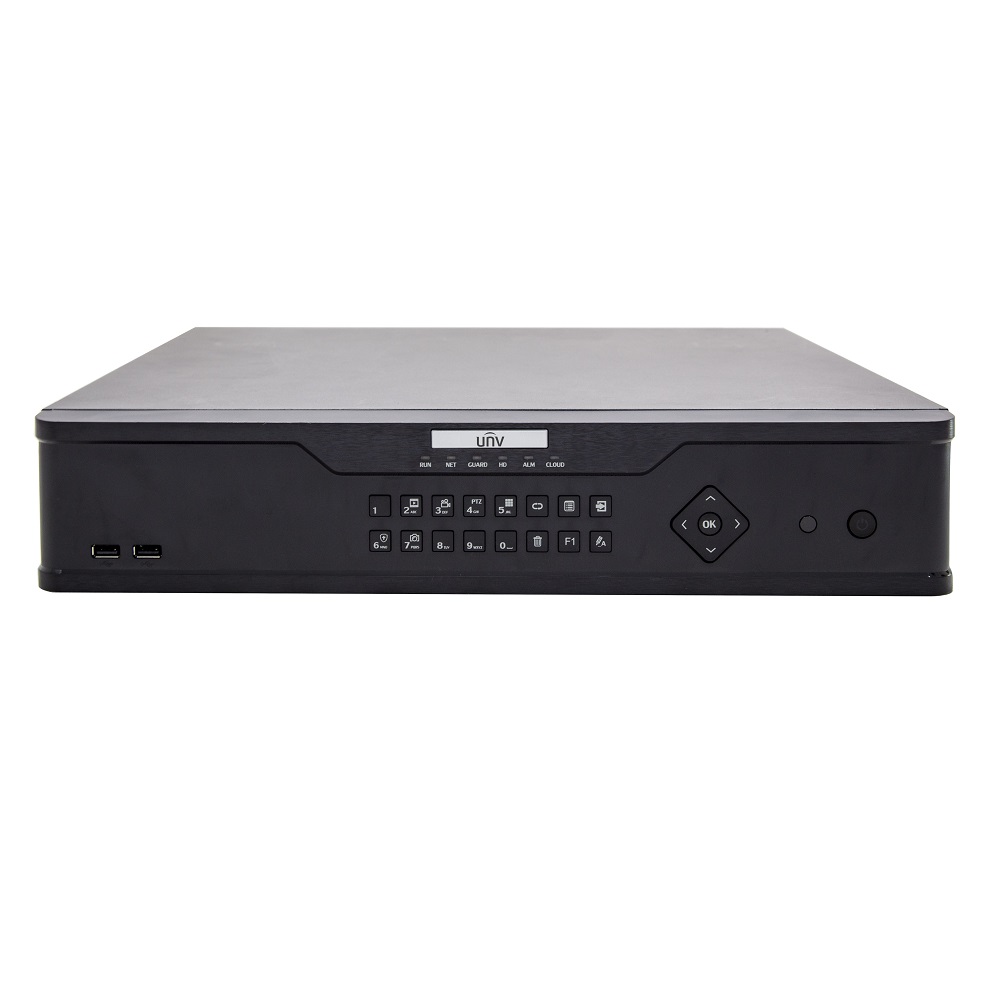

Uniview NVR308-64E-B 64-Channel 12MP NVR (No HDD)

Uniview
SKU: WEC-NVR308-64EB
    • 54% less
    Market price:$2965.00 save $1605.00
  • $1360.00

OR

Record from and manage up to 64 cameras with the NVR308-64E-B 64-Channel 12MP NVR from Uniview at resolutions up to 12MP. This NVR is equipped with 8 SATA ports that can support up to 80TB of storage (HDDs available separately). H.265 and H.264 video codecs ensure high-quality recording and playback.

Up to 128 remote users and two-way audio are supported. A VGA and two HDMI ports enable video output to external monitors (available separately). ONVIF compliance with profiles G, S, and T offers interoperability with ONVIF IP cameras.

Number of Channels
64 (Video)
Playback Resolution
HDMI, VGA:
1920 x 1080 (1080p) at 60 Hz
HDMI (Output 2):
3840 x 2160 (8 MP) at 60 Hz
Recording Resolution
1080p, 720p, 960p, 2CIF, CIF, D1, 3 MP, 4 MP, 5 MP, 6 MP, 8 MP, 12 MP
Throughput
320 Mb/s (Incoming)
320 Mb/s (Outgoing)
A/V I/O
2x Output
1x Output
1x BNC CVBS Output
Communication I/O
2x RJ45 Gigabit Ethernet
2x USB-A 2.0
1x USB-A 3.0 / 3.1/3.2 Gen 1
1x RS-485
1x RS-232
Wi-Fi
Yes
Bluetooth
Yes
Installed Drive
No
General
Number of Channels
64 (Video)
Playback Resolution
HDMI, VGA:
1920 x 1080 (1080p) at 60 Hz
HDMI (Output 2):
3840 x 2160 (8 MP) at 60 Hz
Recording Resolution
1080p, 720p, 960p, 2CIF, CIF, D1, 3 MP, 4 MP, 5 MP, 6 MP, 8 MP, 12 MP
Throughput
320 Mb/s (Incoming)
320 Mb/s (Outgoing)
IP Camera Support
64
Decoding Resolution
3 Channels:
12 MP at 25 fps
4 Channels:
4K at 30 fps
8 Channels:
4 MP at 30 fps
16 Channels:
1080p at 30 fps
32 Channels:
960p at 25 fps
36 Channels:
720p at 30 fps
64 Channels:
D1
2-Way Audio
Yes
Connectivity
A/V I/O
2x Output
1x Output
1x BNC CVBS Output
Communication I/O
2x RJ45 Gigabit Ethernet
2x USB-A 2.0
1x USB-A 3.0 / 3.1/3.2 Gen 1
1x RS-485
1x RS-232
Audio I/O
1x Input
1x Output
System Connection
8x SATA
1x eSATA
Wi-Fi
Yes
Bluetooth
Yes
Maximum User Access
128
Network Protocols
DHCP, NTP, P2P, PPPoE, UPnP
Compatibility
Supported Video Codecs
H.264, H.265
Computing
Optical Drive
No
System
Installed Drive
No
Max Capacity Supported
80 TB (Total)
10 TB (Each Drive)
Number of Bays
8x Internal
RAID Support
, RAID 0/1/5/6
Notifications
Alarm I/O
16x Input
4x Output
System Functions
Fisheye Dewarping
Yes
Electrical
Power Consumption
20 W (Without HDD)
Power Supply Type
External
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Environmental
Operating Temperature
14 to 131°F / -10 to 55°C
Operating Humidity
0 to 90%
Physical
Built-In Display
No
LED Indicators
Yes
Dimensions (W x D x H)
17.4 x 16.7 x 3.5" / 442.0 x 425.0 x 89.0 mm
    • SKU
      WEC-NVR308-64EB
    • Weight
      15 lbs
  • Manufacturer
    Uniview
  • Shipping Lead Time
    Ships Same Day
  • Number of Channels
    64 Channels
  • Recorder Type
    NVR
