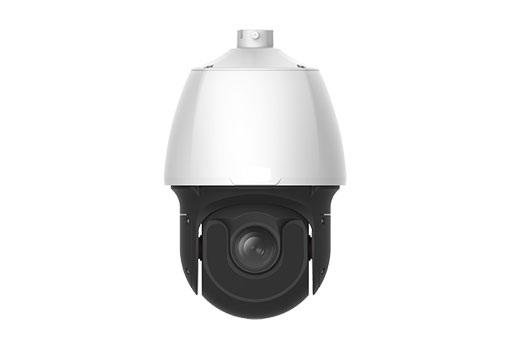

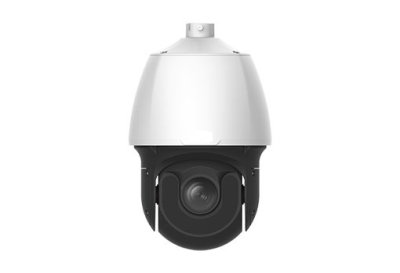

2MP 22x Starlight IR Network PTZ Dome Camera

Uniview
SKU: WEC6252SR-X22U

Optics

* Starlight illumination

* Accurate and fast focusing

* Smart IR, up to200 m (656ft) IR distance

* Optical glass window with higher light transmittance

* IR anti-reflection window to increase the infrared transmittance

Compression

* Ultra 265,H.265, H.264, MJPEG

* Embedded smart algorithm

* Triple streams

* Customized OSD

* 1080P@60fps Supported

Network

* ONVIF Conformance

Structure

* 15° Elevation Angle

* Innovative snow-removing functionality

* More effective heat dissipation system

* Intelligent temperature control technology

* 6 KV surge protection designed for network interface

    • 75% less
    Market price:$7996.00 save $5997.00
  • $1999.00

OR

Optics

* Starlight illumination

* Accurate and fast focusing

* Smart IR, up to200 m (656ft) IR distance

* Optical glass window with higher light transmittance

* IR anti-reflection window to increase the infrared transmittance

Compression

* Ultra 265,H.265, H.264, MJPEG

* Embedded smart algorithm

* Triple streams

* Customized OSD

* 1080P@60fps Supported

Network

* ONVIF Conformance

Structure

* 15° Elevation Angle

* Innovative snow-removing functionality

* More effective heat dissipation system

* Intelligent temperature control technology

* 6 KV surge protection designed for network interface

 WEC6252SR-X22U
Camera
Sensor1/1.8", 2.0 megapixel, progressive scan, CMOS
Lens6.5 ~ 143mm , AF automatic focusing and motorized zoom lens
Digital Zoom16
Optical Zoom22
DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)
4.57831.215.67.8
1431716686.4343.2171.6
Angle of View (H)57.2° ~ 3.3°
Angle of View (V)38.4° ~ 1.3°
Angle of View (O)70.4° ~ 3.9°
ShutterAuto/Manual; shutter time: 1 ~ 1/100000s
Minimum IlluminationColour: 0.0005Lux (F1.5, AGC ON)
0Lux with IR
IrisAuto/Manual; F1.5 ~ F3.4
Day/NightIR-cut filter with auto switch (ICR)
Digital noise reduction2D/3D DNR
S/N>52dB
IR RangeUP to 200m (656ft)
·         DefogDigital Defog
WDR120dB
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main Profile, High Profile
Frame RateMain Stream: 2MP (1920*1080), Max 60fps;
Sub Stream: 2MP (1920*1080), Max 60fps;
Third Stream: D1 (720*576), Max 60fps
HLCSupported
BLCSupported
EISSupported
OSDUp to 8 OSDs
Privacy MaskUp to 24 areas
ROISupported
Motion DetectionUp to 4 areas
Smart
Behavior DetectionIntrusion, cross line, motion detection, Auto tracking
IntrusionEnter and loiter in a pre-defined virtual region
cross lineCross a pre-defined virtual line
motion detectionMoving within a pre-defined virtual region
auto trackingTracking the specified target
RecognitionFace detection, Audio detection
Intelligent IdentificationObject Left, Object Moving
Statistical AnalysisPeople counting
General FunctionWatermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio CompressionG.711
Two-way audioSupported
SuppressionSupported
Sampling Rate8KHZ
Storage
Edge StorageMicro SD, up to 256GB
Network StorageANR
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API
Pan & Tilt
Pan Range360° (endless)
Pan Speed0.1°/s ~ 240°/s
Preset speed: 300°/s
Tilt Range-15° ~ 90° (auto reverse)
Tilt Speed0.1° ~ 160°/s
Preset speed: 240°/s
Number of Presets1024
PatrolPreset patrol, route patrol, recorded patrol
Home PositionSupported
Interface
Audio I/OAudio cable
Input: impedance 35kΩ; amplitude 2V [p-p]
Output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O2/1
Serial Port1 RS485
Network1 RJ4510M/100M Base-TX Ethernet1 RJ45 100M Base-FX SFP+10M/100M Base-TX Ethernet
Video Output1 BNC, impedance 75Ω; amplitude 1V [p-p]
General
PowerAC 24V (Default) ±25%, DC 24V±25%
Power consumption: 11 ~ 47WPower consumption: 11 ~ 47W
Dimensions (Ø x H)Ø227 x 359.4mm (Ø8.9” x 14.2”)
Weight5.5kg (12.1lb)
Working Environment-40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
Ingress ProtectionIP66
Reset ButtonSupported

Data Sheet

User manual

WEC6200 Series-Outdoor Network PTZ Dome Cameras Quick Guide-V1.01

Camera Installation Guide-V1.00

    • SKU
      WEC6252SR-X22U
    • Weight
      12.1 lbs
  • Manufacturer
    Uniview
