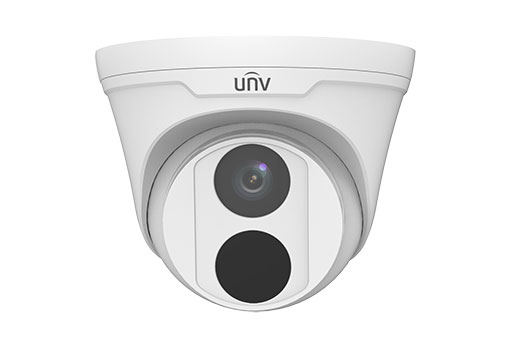

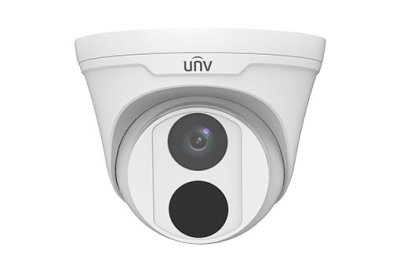

4MP Fixed Dome Network Camera
        • 4MP Fixed Dome Network Camera
        • 4MP Fixed Dome Network Camera

        4MP Fixed Dome Network Camera

        Uniview
        SKU: WEC3614LR3-PF40-D

        Optics

        * Day/night functionality

        * Smart IR, up to 30 m (98 ft) IR distance

        * 3D DNR (Digital Noise Reduction)

        Compression

        * Ultra 265,H.265,H.264,MJPEG

        * ROI (Region of Interest)

        Network

        * ONVIF Conformance

        Structure

        * Wide temperature range: -30°C to 60°C (-22°F to 140°F)

        * Wide voltage range of ±25%

        * IP67

        * 3-Axis

          • 86% less
          Market price:$836.00 save $719.55
        • $116.45

        OR

        Optics

        * Day/night functionality

        * Smart IR, up to 30 m (98 ft) IR distance

        * 3D DNR (Digital Noise Reduction)

        Compression

        * Ultra 265,H.265,H.264,MJPEG

        * ROI (Region of Interest)

        Network

        * ONVIF Conformance

        Structure

        * Wide temperature range: -30°C to 60°C (-22°F to 140°F)

        * Wide voltage range of ±25%

        * IP67

        * 3-Axis

         WEC3614LR3-PF40-D
        Camera
        Sensor1/3", 4.0 megapixel, progressive scan, CMOS
        Lens2.8mm@F2.04.0mm@F2.0
        DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)
        2.84216.88.44.2
        4.06024126
        Angle of view (H)104.4°78.9°
        Angle of View (V)54.4°39.6°
        Angle of View (O)135.7°97.0°
        ShutterAuto/Manual, 1 ~ 1/100000s
        Adjustment angle Pan: 0° ~ 360°Tilt: 0° ~ 90°Rotate: 0° ~ 360°
        Min. IlluminationColour: 0.03Lux (F2.0, AGC ON)
        0Lux with IR
        IR RangeUp to 30m (98ft) IR range
        Day/NightIR-cut filter with auto switch (ICR)
        S/N>52dB
        WDRDWDR
        Noise Reduction2D/3D
        Video
        Video CompressionUltra 265, H.265, H.264, MJPEG
        H.264 code profileBaseline profile, Main Profile
        Frame RateMain Stream: 4MP (2592*1520), Max 20fps;
        Sub Stream: 720P (1280*720), Max 20fps;
        Third Stream: D1 (720*576), Max 20fps
        HLCSupported
        BLCSupported
        OSDUp to 4 OSDs
        Privacy MaskUp to 8 areas
        ROIUp to 2 areas
        Motion DetectionUp to 4 areas
        Network
        ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS
        Compatible IntegrationONVIF (Profile S, Profile T),API
        Interface
        Network10/100M Base-TX Ethernet
        General
        PowerDC 12V±25%, PoE (IEEE 802.3af)
        Power consumption: Max 4W
        Dimensions (Ø x H)Φ118 x 96mm (Φ4.6” x 3.8”)
        Weight0.35kg (0.77lb)
        Working Environment-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
        Ingress ProtectionIP67
