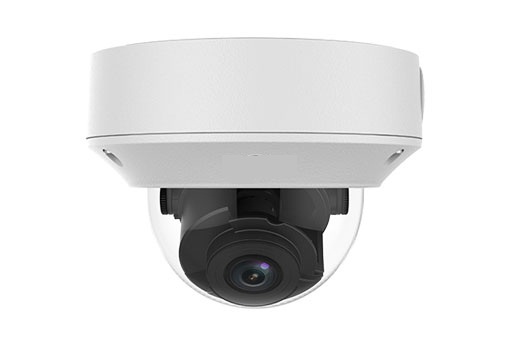

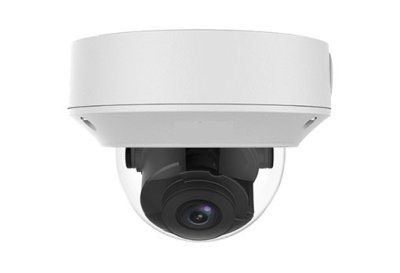

5MP VF Vandal-resistant Network IR Fixed Dome Camera
SKU: WEC3235LR3-VSPZ28-DOptics
Day/night functionality
Smart IR , up to 30 m (98 ft) IR distance
IR anti-reflection window to increase the infrared transmittance
2D/3D DNR (Digital Noise Reduction)
Compression
Ultra 265,H.265, H.264, MJPEG
ROI (Region of Interest)
Network
ONVIF Conformance
Structure
Wide temperature range: -40°C to 60°C (-40°F to 140°F)
Wide voltage range of ±25%
IK10 vandal resistant
IP67
3-Axis
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
Optics
Day/night functionality
Smart IR , up to 30 m (98 ft) IR distance
IR anti-reflection window to increase the infrared transmittance
2D/3D DNR (Digital Noise Reduction)
Compression
Ultra 265,H.265, H.264, MJPEG
ROI (Region of Interest)
Network
ONVIF Conformance
Structure
Wide temperature range: -40°C to 60°C (-40°F to 140°F)
Wide voltage range of ±25%
IK10 vandal resistant
IP67
3-Axis
WEC3235LR3-VSPZ28-D | ||||||||
Camera | ||||||||
Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS | |||||||
Lens | 2.8 ~ 12mm, manual zoom lens | 2.8 ~ 12mm, motorized zoom lens | ||||||
DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||
2.8 | 63 | 25.2 | 12.6 | 6.3 | ||||
12 | 270 | 108 | 54 | 27 | ||||
Angle of View (H) | 105.3° ~ 25.4° | |||||||
Angle of View (V) | 69.5° ~ 18.4° | |||||||
Angle of View (O) | 136.9° ~ 31.2° | |||||||
Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 80° | Rotate: 0° ~ 360° | |||||
Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||
Minimum Illumination | Colour: 0.005Lux (F1.6, AGC ON) 0Lux with IR | |||||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||||
Digital noise reduction | 2D/3D DNR | |||||||
IR Range | Up to 30m (98ft) IR range | |||||||
Defog | Digital Defog | |||||||
WDR | DWDR | |||||||
Video | ||||||||
Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
H.264 code profile | Baseline profile, Main Profile | |||||||
Frame Rate | Main Stream: 5MP (2592*1944), Max 20fps; Sub Stream: 720P (1280*720), Max 20fps | |||||||
HLC | Supported | |||||||
BLC | Supported | |||||||
OSD | Up to 4 OSDs | |||||||
Privacy Mask | Up to 4 areas | |||||||
ROI | Up to 2 areas | |||||||
Motion Detection | Up to 4 areas | |||||||
Network | ||||||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS | |||||||
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |||||||
Interface | ||||||||
Network | 1 RJ45 10M/100M Base-TX Ethernet | |||||||
Edge Storage | MicroSD, up to 256GB | |||||||
General | ||||||||
Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||||
Power consumption: Max 8.7W | ||||||||
Dimensions (Ø x H) | Φ148 x 111.3mm (Ø5.8” x 4.4”) | |||||||
Weight | 0.92kg (2.0lb) | |||||||
Working Environment | -40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||
Ingress Protection | IP67 | |||||||
Vandal Resistant | IK10 | |||||||
Reset Button | Supported |
