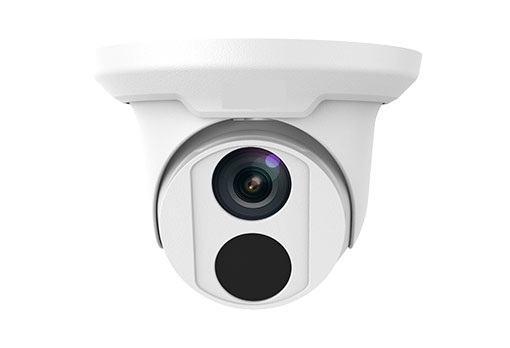

4MP Network IR Fixed Dome
Optics
Day/night functionality
Up to 120 dB WDR (Wide Dynamic Range)
SmartIR, up to 30 m (98 ft) IR distance
Compression
Ultra 265, H.264, MJPEG
Embedded smart algorithm
Triple streams
9:16 corridor format
Network
ONVIF Conformance
Structure
Wide temperature range: -35°C to 60°C (-31°F to 140°F)
Wide voltage range of ±25%
4 KV surge protection designed for network interface
IP67
3-Axis
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
Optics
Day/night functionality
Up to 120 dB WDR (Wide Dynamic Range)
SmartIR, up to 30 m (98 ft) IR distance
Compression
Ultra 265, H.264, MJPEG
Embedded smart algorithm
Triple streams
9:16 corridor format
Network
ONVIF Conformance
Structure
Wide temperature range: -35°C to 60°C (-31°F to 140°F)
Wide voltage range of ±25%
4 KV surge protection designed for network interface
IP67
3-Axis
| WEC3614SR3-DPF36 | ||||||||
| Camera | ||||||||
| Sensor | 1/3", progressive scan,4.0 megapixel, CMOS | |||||||
| Lens | 2.8mm@F2.0 | 3.6mm@F2.0 | 6mm@F2.0 | |||||
| DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | |||
| 2.8mm | 63 | 25.2 | 12.6 | 6.3 | ||||
| 3.6mm | 81 | 32.4 | 16.2 | 8.1 | ||||
| 6mm | 135 | 54 | 27 | 13.5 | ||||
| Angle of view(H) | 104.4° | 76.5° | 49.9° | |||||
| Angle of View (V) | 67° | 53.2° | 32.9° | |||||
| Angle of View (O) | 135.7° | 99.5° | 61.4° | |||||
| Adjustmentangle | Pan: 0°~360° | Tilt: 0°~90° | Rotate:0°~360° | |||||
| Shutter | Auto/Manual, 1~1/100000 s | |||||||
| Minimum Illumination | Colour: 0.03 Lux (F2.0, AGC ON) 0 Lux with IR | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||
| Digital noise reduction | 2D/3D DNR | |||||||
| S/N | >52 dB | |||||||
| IR Range | Up to 30m (98 ft) IR range | |||||||
| Defog | Digital Defog | |||||||
| WDR | 120dB | |||||||
| AWB(Auto white balance) | Auto/manual | |||||||
| Gain Control | Auto/manual | |||||||
| Video | ||||||||
| Video Compression | Ultra 265, H.264, MJPEG | |||||||
| Frame Rate | Main Stream:4MP (2592×1520): Max. 20 fps，4MP (2560×1440): Max. 25 fps，3MP (2048×1520): Max. 30 fps; Sub Stream:2MP (1920×1080): Max. 30 fps; Third Stream:D1(720×576) : Max. 30fps | |||||||
| HLC | Supported | |||||||
| BLC | Supported | |||||||
| 9:16 Corridor Mode | Supported | |||||||
| OSD | Up to 8 OSDs | |||||||
| Privacy Mask | Up to 8 areas | |||||||
| ROI | Up to 8 areas | |||||||
| Motion Detection | Up to 4 areas | |||||||
| Smart | ||||||||
| Behavior Detection | Intrusion, cross line, motion detection | |||||||
| Intrusion | Enter and loiter in a pre-defined virtual region | |||||||
| cross line | Cross a pre-defined virtual line | |||||||
| motion detection | Moving within a pre-defined virtual region | |||||||
| Recognition | Face detection、Audio detection | |||||||
| Intelligent Identification | Defocus, Scene Change, Object Left, Object Moving | |||||||
| Statistical Analysis | People counting | |||||||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication | |||||||
| Network | ||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP | |||||||
| Compatible Integration | ONVIF(Profile S), API | |||||||
| Interface | ||||||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | |||||||
| General | ||||||||
| Power | 12 V DC±25%, PoE (IEEE802.3 af) | |||||||
| Power consumption: Max 5W | ||||||||
| Dimensions (Ø x H) | Φ126 x 94 mm (Ø5.0” x 3.7”) | |||||||
| Weight | 0.33 kg (0.73lb) | |||||||
| Operating Conditions | -35°C ~ +60°C (-31°F ~ 140°F), Humidity:10%~ 95% RH(non-condensing) | |||||||
| Ingress Protection | IP67 | |||||||
