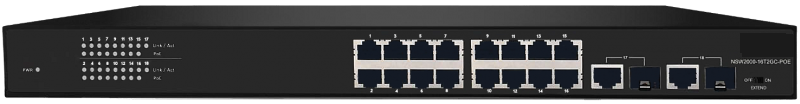

UNV Uniview 16CH PoE Switch
Loading...
Loading...

        UNV Uniview 16CH PoE Switch

        Uniview
        SKU: WEC-NSW2000-16T2GC-POE

        Features:

        • 16×10/100Mbps Ethernet ports
        • 2×Gigabit combo ports (RJ45 and SFP)
        • All 100Mbps ports support PoE
        • PoE complies with IEEE802.3af/at, up to 30W for single port
        • Up to 250m transmission distance on EXTEND mode
        • Easy to use, no need to configure
        • High quality with all metal housing
        • $636.00

        OR

        Features:

        • 16×10/100Mbps Ethernet ports
        • 2×Gigabit combo ports (RJ45 and SFP)
        • All 100Mbps ports support PoE
        • PoE complies with IEEE802.3af/at, up to 30W for single port
        • Up to 250m transmission distance on EXTEND mode
        • Easy to use, no need to configure
        • High quality with all metal housing

        Specification

        ItemDescription
        Ports16×10/100Base-TX autosensing Ethernet ports(all support PoE)
        2×Gigabit combo ports (RJ45 and SFP)
        Port attribute10/100/1000Mbit/s transfer rate
        Half-duplex, full-duplex and auto-negotiation
        Auto MDI/MDIX
        StandardsIEEE 802.3u 100BASE-TX
        IEEE 802.3ab 1000BASE-T
        IEEE 802.3z 1000BASE-X
        ANSI/IEEE 802.3 NWay
        IEEE 802.3x flow control
        IEEE 802.3af PoE
        IEEE 802.3at PoE
        MAC4K
        Packet forwarding rate6.55Mpps
        Switching capacity8.8Gbps
        EXTEND modeDisabled: all ports can communicate with each other, and monitoring optimization is disabled.
        Enabled: Downlink ports can only communicate with uplink ports, monitoring optimization is enabled, and transmission distance can be extended to up to 250 meters.
        Status LEDsLink/Act (steady green): link is normal
        Link/Act (flashing green): data is being forwarded
        Link/Act (off): no link
        PoE (steady orange): the port is powering a powered device properly
        PoE (off): the port is not connected to any powered device or is not supplying power
        Power (steady green): AC input is normal
        Power (off): AC input is abnormal
        PoE802.3at/af Max PoE capacity: 250 W
        Consumption≤ 300 W
        AC voltage100-240 V
        Operating temperature0°C-40°C (32°F-104°F)
        Operating humidity10%-85%
        Storage temperature-10°C-70°C (14°F-158°F)
        Storage humidity10%-90%
        Dimensions (W×D×H)440mm×280mm×44mm (17.3"×11"×1.7")
