NSW2000-24T2GC-POE Uniview - UNV - 24-Port PoE Switch 30W/per port 250M (928 ft) PoE Length Jumboframe
Uniview 8 Port POE Switch; 8 10/100Mbps ports and 1 Gigabit Combo Port (RJ45 and SFP); IEEE802.3af/at up to 30W per port; Max PoE capacity: 125 W; Support 250m extended POE transmission when used with UNV IP cameras
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
Log-in or REGISTER HERE to view EXCLUSIVE pricing.

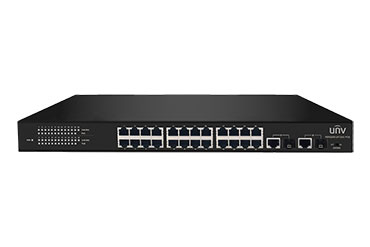

This is an 24 Port UNV PoE Switch made with High Quality Metal Casing. This PoE Switch can support PoE+ (30w). Paired with UNV brand cameras, extended PoE transmission is available for up to 928 feet of PoE Distance.
Specs
- 24x 10/100Mbps Ethernet Ports
- 2x Gigabit Combo Port (RJ45 & SFP)
- All 100mbps ports support PoE
- PoE Complies with IEEE802.3af/at, up to 30w for single port.
- Support 250m(928ft) extended PoE transmission when used with UNV IP cameras
- Easy to use, no need to configure
- High Quality Metal Housing
Power requirement 100-240 V AC
| Item | Download |
|---|---|
| Ports | 24×10/100Base-TX autosensing Ethernet ports(all support PoE) 2×Gigabit combo ports (RJ45 and SFP) |
| Port attribute | 10/100/1000Mbit/s transfer rate Half-duplex, full-duplex and auto-negotiation Auto MDI/MDIX |
| Standards | IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-X ANSI/IEEE 802.3 NWay IEEE 802.3x flow control IEEE 802.3af PoE IEEE 802.3at PoE |
| MAC | 4K |
| Packet Forwarding Rate | 6.55Mbps |
| Switching Capacity | 8.8Gbps |
| EXTEND Mode | Standard: the switch functions as a common un-managed switch and all the ports of the switch can communicate with each other. Extend Mode: If the extend mode is enabled, the transmission distance of both power and data will extend up to 250m(10Mbps), this function can replace the extender and parts of the Fiber. It will extend the distance of the whole system and save the cost of the project. |
| Status LEDs | Link/Act (steady green): link is normal Link/Act (flashing green): data is being forwarded Link/Act (off): no link PoE (steady orange): the port is powering a powered device properly PoE (off): the port is not connected to any powered device or is not supplying power Power (steady green): AC input is normal Power (off): AC input is abnormal |
| PoE | 802.3at/af Max PoE capacity: 400 W |
| Consumption | ≤ 450 W |
| AC Voltage | 100-240 V |
| Operating Temperature | 0°C-40°C (32°F-104°F) |
| Operating Humidity | 10%~85% non-condensing |
| Storage Temperature | -40°C-70°C (-40°F-158°F) |
| Storage Humidity | 10%-90% non-condensing |
| Dimensions (WxDxH) | 440mm×280mm×44mm (17.3"×11"×1.7") |
| Certification | FCC, CE, RoHS |
- ManufacturerUniview
- Shipping Lead TimeShips Same Day
- Recorder TypeNVR (with POE Ports)
- Warranty3 Year warranty
- Remote Login SupportNo Login Support Needed, 1 Time FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
