GV-NVR Lite System V2C 1TB HDD

        GV-NVR Lite System V2C 1TB HDD

        Geovision
        SKU: 810-NVRLT2-000
        • Compact and sleek
        • Up to 16 channels

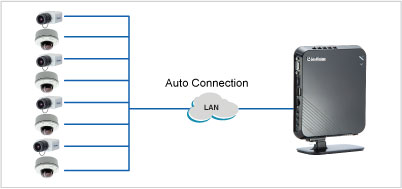

        • Automatic connection to GV IP cameras
        • Support for 3rd party IP cameras (license required)
        • All-in-one solution (Live View, Playback, Recording, Backup, CMS)
        • GPU decoding and dewarping
        • H.265 / H.264 / MJPEG / MPEG4
        • Dual video streams
        • VGA and HDMI outputs
        • 1 TB hard drive
        • Video analysis (Advanced Motion Detection, Privacy Mask, Scene Change Detection and Counter only)

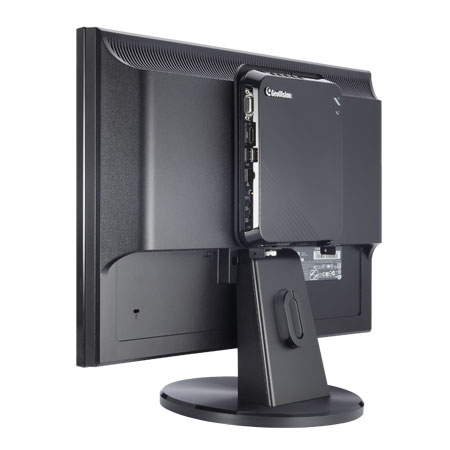

        • Standing mount and VESA mount options
        • Direct recording to the internal hard drive
        • Low power consumption

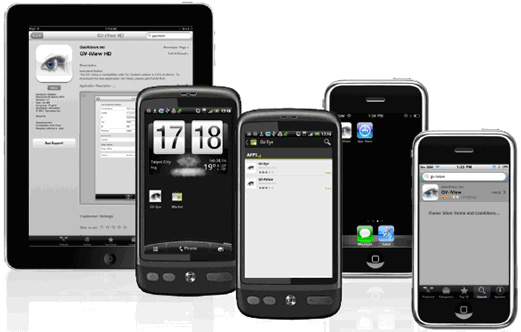

        • Smart phones access
        • Fisheye camera dewarping function
        • Multiple (31) languages
          • 19% less
          Market price:$1050.00 save $200.00
        • $850.00

        OR

        The GV-NVR System Lite V2 is an ultimate upgraded mini NVR system, which you can record video files directly to the internal hard drive. The GV-NVR System Lite V2 supports up to 16 GV IP cameras or 10 third-party IP cameras (license required) for networking surveillance, with the plug-and-play function for GV IP cameras to connect to the unit automatically. Plus, with supported HDMI output, you could connect the unit to HDTV for better video quality. The GV-NVR System Lite V2 is a perfect NVR system for small business, retail stores, and home security. Its four USB ports enable to connect with multiple peripheral devices, such as USB HDD, USB DVD player and etc. Its Gigabit Ethernet function enables high-speed Internet access for seamless Web browsing. Moreover, our VESA mounting solution allows you to mount the ultra-slim unit on the back of a computer monitor.


        PRODUCT DETAILS

        • GV-NVR System Lite V2 x 1
        • AC Power Cord x 1
        • Power Adapter x 1
        • Standing Mount Kit (1 Base Stand and 1 Base Stand Screw included) x 1
        • VESA Monitor Mount Kit (1 Stand Screw and 4 Fix Screws included) x 1
        • GV-NVR System Lite V2 Quick Start Guide x 1
        • Compact and sleek
        • Up to 16 channels
        • Automatic connection to GV IP cameras
        • Support for 3rd party IP cameras (license required)
        • All-in-one solution (Live View, Playback, Recording, Backup, CMS)
        • GPU decoding and dewarping
        • H.265 / H.264 / MJPEG / MPEG4
        • Dual video streams
        • VGA and HDMI outputs
        • 1 TB hard drive
        • Video analysis (Advanced Motion Detection, Privacy Mask, Scene Change Detection and Counter only)
        • Standing mount and VESA mount options
        • Direct recording to the internal hard drive
        • Low power consumption
        • Smart phones access
        • Fisheye camera dewarping function
        • Multiple (31) languages

















































        Version History



        DOWNLOADS



        Item No. (Sales Part No.)Description
        810-NVRLT2-000GV-NVR System Lite V2 (Rev. B) 1TB HDD US



        System
        CPUIntel Processor
        RAM4 GB
        Storage1 TB
        OSMicrosoft Windows 7 Embedded 64-Bit SP1
        DirectX11
        PowerOutput: 65W, 19V, 3.42A; Input: 100~240V, 50~60Hz
        ConnectorEthernetRJ-45, 10 / 100 / 1000 Mbps
        Video OutputVGA and HDMI
        USB 2.0Right Side1 port
        Left Side2 ports
        USB 3.0Right Side1 ports
        Environment
        Operating Temp0 °C ~ 35 °C / 32 °F ~ 95 °F
        Humidity0% ~ 80% RH (non-condensing)
        Physical
        ColorBlack
        Dimensions (W x H x D)153.6 x 25.2 x 172.6 mm / 6.04 x 0.99 x 6.8 in
        Weight800 g / 1.77 lbs
        Sensor and Alarm (Optional)
        GV-IO Box 16 ports16 inputs, 16 outputs
        GV-IO Box 8 ports8 inputs, 8 outputs
        GV-IO Box 4 ports4 inputs, 4 outputs
        Video and Audio
        Audio Input16 channels
        Video Input16 channels
        CompressionMJPEG / MEPG4 / H.264
        Live ResolutionCIF for 16 screen divisions
        Image ControlContrast / Brightness / Saturation / Hue
        Recording ModeRound the Clock / Motion Detection / Sensor Detection / Pre & Post Recording / Schedule Recording
        Pre Recording1 ~ 45 min.
        Instant Playback10 sec. / 30 sec. / 1 min. / 5 min.
        Watermark MarkingSupported
        Searching and Playback
        Search MethodDate / Time / Camera / Event Type
        Backup TypeDVD+R (DL) / DVD-R (DL) / DVD+R / DVD+RW / DVD-R / DVD-RW / CD-R / CD-RW
        Note: For backup function, you need to connect an external USB DVD/CD burner.
        Remote Monitoring
        Monitoring EnvironmentWeb browser (IE, Chrome, Firefox and Safari) Mobile device (Android Smartphone and tablet; iPad, iPhone and iPod Touch)
        Live ViewMax. 16-channel multi views (Up to 200 channels connection to GV-NVR System Lite V2)
        Network TypeLAN, WAN, Internet
        System Monitoring and Recovery
        Power RestorationAutomatic restart after power outage
        MonitoringSoftware Watchdog
        RecoveryAutomatic system rebuild from internal hard disk
        Language
        TypeArabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian / Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian/ Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish
        Software License
        Free License16 channels from GV-IP Cameras
        Maximum License10 channels from third-party IP Cameras (*)
        Increment for Each License1 to 10 third-party IP cameras at an increment of 2
        Optional CombinationsN/A
        Dongle TypeExternal
        * The Maximum License is a paid service.



        The Supported IP Camera Combinations for GV-NVR System Lite V2 (Rev. D):
        The GV-NVR System Lite V2 (Rev. D) supports connections to GV IP cameras and third-party IP cameras. You can adopt one of the following combinations:

        IP cameras excluding GV Fisheye cameras
        • Connect up to 16 GV IP cameras (H.264). See Section A.
        • Connect up to 16 GV IP cameras (H.265). See Section D.
        • Connect up to 10 third-party cameras (of 1280 x 1024 resolution, H.264). See Section C.
        • Connect up to 8 third-party cameras (of 1920 x 1080 resolution, H.264). See Section C.
        • Connect up to 8 third-party cameras (of 2048 x 1536 resolution, H.264). See Section C.
        • Connect up to 8 third-party cameras (of 2048 x 1944 resolution, H.264). See Section C.
        • Connect up to 7 third-party cameras (of 2560 x 1920 resolution, H.264). See Section C.
        • Connect up to 10 cameras from GV-IP cameras and third-party IP cameras (of 1280 x 1024 resolution, H.264). See Section A and C.
        • Connect up to 8 cameras from GV-IP cameras and third-party IP cameras (of 1920 x 1080 resolution, H.264). See Section A and C.
        • Connect up to 8 cameras from GV-IP cameras and third-party IP cameras (of 2048 x 1536 resolution, H.264). See Section A and C.
        • Connect up to 8 cameras from GV-IP cameras and third-party IP cameras (of 2048 x 1944 resolution, H.264). See Section A and C.
        • Connect up to 7 cameras from GV-IP cameras and third-party IP cameras (of 2560 x 1920 resolution, H.264). See Section A and C.

        IP cameras including GV Fisheye cameras (H.264)
        • GV-Fisheye Camera 1.3 MP + one of the following options:
          • GV-IP Camera x 15
          • Third-party Camera (1.3 MP) x 9
          • Third-party Camera (2 MP) x 8
          • Third-party Camera (3 MP) x 4
          • Third-party Camera (4 / 5 MP) x 3
        • GV-Fisheye Camera 2 MP + one of the following options:
          • GV-IP Camera x 15
          • Third-party Camera (2 MP) x 6
          • Third-party Camera (3 MP) x 4
          • Third-party Camera (4 / 5 MP) x 3
        • GV-Fisheye Camera 4 MP + one of the following options:
          • GV-IP Camera x 14
          • Third-party Camera (1.3 MP) x 5
          • Third-party Camera (2 MP) x 4
          • Third-party Camera (3 MP) x 3
          • Third-party Camera (4 / 5 MP) x 2
        • GV-Fisheye Camera 5 MP + one of the following options:
          • GV-IP Camera (1.3 MP) x 14
          • GV-IP Camera (2 / 3 / 4 / 5 MP) x 13
          • Third-party Camera (1.3 MP) x 5
          • Third-party Camera (2 MP) x 4
          • Third-party Camera (3 MP) x 3
          • Third-party Camera (4 / 5 MP) x 2

        GV-Fisheye cameras
        • Connect up to 9 GV-Fisheye cameras (of 1280 x 1024 resolution, H.264). See Section B.
        • Connect up to 6 GV-Fisheye cameras (of 1440 x 1376 resolution, H.264). See Section B.
        • Connect up to 3 GV-Fisheye cameras (of 2048 x 1944 resolution, H.264). See Section B.
        • Connect up to 2 GV-Fisheye cameras (of 2560 x 1920 resolution, H.264). See Section B.

        Analog cameras through GV-Compact DVRs and GV-Video Servers
        • Connect up to 16 analog cameras through GV-Video Servers (of 704 x 480 resolution, H.264). See Section E.
        • Connect up to 16 analog cameras through GV-Video Servers (of 352 x 240 resolution, H.264). See Section E.
        • Connect up to 12 analog cameras through GV-Compact DVR V3 Series (of 704 x 480 resolution, de-interlace). See Section E.

        The number of supported channels is based on the following resolution:
        Section ADual-stream Resolution (H.264)Max. Frame Rate / CameraTotal Frame Rate / System
        Stream 1Stream 2
        GV-IP Camera
        1.3 MP1280 x 1024320 x 25630 fps480 fps
        2 MP1920 x 1080448 x 25230 fps480 fps
        3 MP2048 x 1536320 x 24013 fps220 fps
        4 MP2048 x 1944320 x 24010 fps165 fps
        5 MP2560 x 1920320 x 24010 fps160 fps
        Section BSingle Stream Resolution (H.264)Max. Frame Rate / CameraTotal Frame Rate / System
        GV-Fisheye1.3 MP1280 x 1024 (4:3)7 fps63 fps
        2 MP1440 x 1376 (4:3)10 fps45 fps
        4 MP2048 x 1944 (4:3)10 fps30 fps
        5 MP2560 x 1920 (4:3)10 fps20 fps
        Section CSingle Stream Resolution (H.264)Max. Frame Rate / CameraTotal Frame Rate / System
        Third-Party Camera
        1.3 MP1280 X 102430 fps300 fps
        2 MP1920 X 108030 fps240 fps
        3 MP2048 x 153620 fps160 fps
        4 MP2048 X 194415 fps120 fps
        5 MP2560 X 192010 fps70 fps
        Section DDual-stream Resolution (H.265)Max. Frame Rate / CameraTotal Frame Rate / System
        Stream 1Stream 2
        GV-IP Camera
        1.3 MP1280 x 720640 x 36030 fps180 fps
        2 MP1920 x 1080640 x 36015 fps165 fps
        3 MP2048 x 1520640 x 48015 fps120 fps
        4 MP2560 x 1440640 x 36010 fps160 fps
        5 MP2592 x 1944640 x 48010 fps120 fps
        Section EDual-stream ResolutionMax. Frame Rate / CameraTotal Frame Rate / System
        Stream1Stream 2
        GV-Video Server V2GV-VS11 / GV-VS14704 x 480 / 704 x 576352 x 240 / 352 x 28830 fps480 / 400 fps
        GV-VS12 / GV-VS04H352 x 240 / 352 x 288N/A30 fps480 / 400 fps
        GV-Compact DVR V3704 x 480 De-interlace / 704 x 576 De-interlaceN/A30 fps360 fps



          • SKU
            810-NVRLT2-000
          • Weight
            5 lbs
        • Manufacturer
          Geovision
        • Number of Channels
          16ch
        • Recorder Type
          NVR
        • Remote Login Support
          No Login Support Needed, 1 Time FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
        • Network Cable
          I have my own network cables, 50 Feet CAT6 Cable, 100 Feet CAT6 Cable, 150 Feet CAT6 Cable, 200 Feet CAT6 Cable, 300 Feet CAT6 Cable, Cat 5 Cable 1000 feet spool, CAT6 Network Cable 1000 Feet Non UL
        • Hard Drive #1
          I will install my own hard drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6TB HDD
        • Hard Drive #2
          I will install my own hard drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6TB HDD
