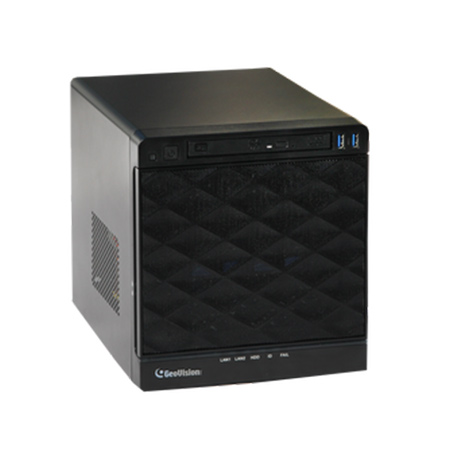

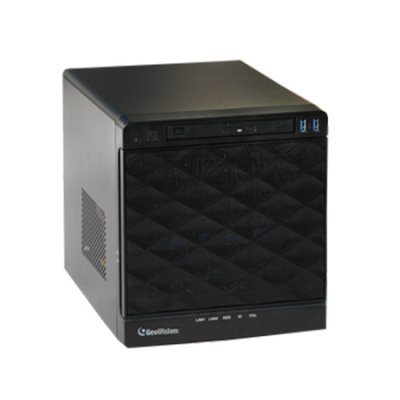

Geovision UVS-NVR-NC3C4-C16 | UVS VMS Cube Hotswap 16CH i3 4Bay NO HDD 16GB RAM 256GB SSD Win10Pro 64bit

Geovision
SKU: UVS-NVR-NC3C4-C16

System

  • CPU - Intel Core i3 Processor
  • RAM - 16 GB Dual Channels
  • OS - 64-bit Windows 10 Professional
  • DirectX - 10.0c
  • Connector -Ethernet RJ-45, 10 / 100 / 1000 Mbps x 1, Video Output VGA, DVI-D and HDMI, USB 2.0 Rear: 2 ports, USB 3.0 Rear: 2 ports,
  • Fan - 7 cm (3 1/8") 1 unit
  • Power - 120 W, 100-230 V, 47-63 Hz

Video and Audio

  • Video Standard - NTSC, PAL
  • Video Input - 16 channels
  • Audio Input - 16 channels
  • Audio Input Level - 0.5 ~ 1 Vp-p composite
  • Video Compression Format - HW: H.264 SW: Geo MPEG4, Geo H.264, MJPEG
  • Audio Compression Format - 16 kHz / 16-bit

Live View and Playback

  • Camera Name - Max. 32 characters
  • Screen Split Control - 1x1 / 2x2 / 1+5 / 1+7 / 3x3 / 2+8 / 1+12 / 1+16 / 4x4 / 5x5 / 6x6
  • Screen Rotate Control - 1 ~ 10 sec.
  • Image Control - Contrast / Brightness / Saturation / Hue
  • Recording Mode - Round the Clock / Motion Detection / Sensor Detection / Pre & Post Recording / Schedule Recording
  • Recording Schedule - 96 groups per day by 15 min.
  • Instant Playback - 10 sec. / 30 sec. / 1 min. / 5 min.
  • Pre Recording - 1~ 90 sec. (1 FPS)
  • Watermark - Support

Searching and Playback

  • Search Method - Date / Time
  • Date / Time / Event Search - Selectable on the tree list and calendar
  • Log Search - Through the log data to find the video event / time
  • Backup Type - DVD+R (DL) / DVD-R (DL) / DVD+R / DVD+RW / DVD-R / DVD-RW / CD-R / CD-RW * For backup function, you need to connect an external USB DVD/CD burner.

Remote Client Software

  • Monitoring Environment - WebCam / Twin Server / CenterV2 / VSM / Control Center / Remote View / IP Multicast / GV-AView for Android Smartphone, GV-Eye HD for iPad, GV-Eye for iPhone and iPod Touch, GV-GView for Windows PDA, GV-MSView for Windows Smartphone, GV-SSView for Symbian Smartphone, 3G-enabled phone
  • WebCam Live View - Max. 32 channels transmission (Max. 200 channels accessible)
  • Remote Search - WebCam’s Remote Playback

System Monitoring and Recovery

  • Power Restoration - Power restored after AC power loss
  • Monitoring - Two independent Watchdogs (Hardware Watchdog + Software Watchdog)
  • Recovery - Automatic system rebuild from internal hard disk

Networking

  • Type - TCP/ IP, LAN, WAN, Internet, Modem Dial-up, Modem-to-Modem, ISDN

Environment

  • Operating Temp - 0 °C ~ 45 °C / 32 °F ~ 113 °F
  • Humidity - 0% ~ 80% RH (non-condensing)

Physical

  • Color - Black
  • Dimensions (W x H x D) - 7.90" x 5.90" x 8.90" in
  • Weight - 6.3 kg / 13.8 lb (± 1 kg / 2.2 lb)

Language

  • Type - Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Italian / Japanese / Lithuanian / Norwegian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish

Software License

  • Free License - 32 channels from GV-IP devices
  • Maximum License -32 channels from third-party IP devices
  • The increment for Each License - 1 to 32 third-party IP cameras at an increment of 2
  • Optional Combinations - N/A
  • Dongle Type - Internal or external
    • 33% less
    Market price:$1949.00 save $650.00
  • $1299.00

OR

The Geovision UVS-NVR-NC3C4-C16 is a compact and powerful network video recorder designed for small to medium-sized surveillance systems. This NVR is part of the UVS VMS Cube series and features a hot-swappable 4-bay design that allows for easy expansion and maintenance of the system.

This NVR is powered by an Intel Core i3 processor and comes with 16GB of RAM, providing the processing power and storage capacity needed to manage up to 16 cameras. It runs on Windows 10 Pro 64-bit operating system, making it compatible with a wide range of software applications and devices.

The Geovision UVS-NVR-NC3C4-C16 comes with a range of advanced features, including support for H.265 video compression, which allows for efficient use of bandwidth and storage space. It also supports up to 8 hard drives with a maximum capacity of 96TB, allowing for extensive storage capacity.

This NVR also supports a wide range of camera brands and models, making it a versatile solution for a variety of surveillance systems. It also features a user-friendly interface that allows for easy management of surveillance data and settings.

Overall, the Geovision UVS-NVR-NC3C4-C16 is an ideal solution for small to medium-sized surveillance systems. Its powerful processor, ample storage, and advanced features provide an efficient and reliable solution for video management and storage. The hot-swappable 4-bay design allows for easy expansion and maintenance of the system, while the compatibility with a wide range of software applications and devices provides versatility and flexibility.





System

  • CPU - Intel Core i3 Processor
  • RAM - 16 GB Dual Channels
  • OS - 64-bit Windows 10 Professional
  • DirectX - 10.0c
  • Connector -Ethernet RJ-45, 10 / 100 / 1000 Mbps x 1, Video Output VGA, DVI-D and HDMI, USB 2.0 Rear: 2 ports, USB 3.0 Rear: 2 ports,
  • Fan - 7 cm (3 1/8") 1 unit
  • Power - 120 W, 100-230 V, 47-63 Hz

Video and Audio

  • Video Standard - NTSC, PAL
  • Video Input - 16 channels
  • Audio Input - 16 channels
  • Audio Input Level - 0.5 ~ 1 Vp-p composite
  • Video Compression Format - HW: H.264 SW: Geo MPEG4, Geo H.264, MJPEG
  • Audio Compression Format - 16 kHz / 16-bit

Live View and Playback

  • Camera Name - Max. 32 characters
  • Screen Split Control - 1x1 / 2x2 / 1+5 / 1+7 / 3x3 / 2+8 / 1+12 / 1+16 / 4x4 / 5x5 / 6x6
  • Screen Rotate Control - 1 ~ 10 sec.
  • Image Control - Contrast / Brightness / Saturation / Hue
  • Recording Mode - Round the Clock / Motion Detection / Sensor Detection / Pre & Post Recording / Schedule Recording
  • Recording Schedule - 96 groups per day by 15 min.
  • Instant Playback - 10 sec. / 30 sec. / 1 min. / 5 min.
  • Pre Recording - 1~ 90 sec. (1 FPS)
  • Watermark - Support

Searching and Playback

  • Search Method - Date / Time
  • Date / Time / Event Search - Selectable on the tree list and calendar
  • Log Search - Through the log data to find the video event / time
  • Backup Type - DVD+R (DL) / DVD-R (DL) / DVD+R / DVD+RW / DVD-R / DVD-RW / CD-R / CD-RW * For backup function, you need to connect an external USB DVD/CD burner.

Remote Client Software

  • Monitoring Environment - WebCam / Twin Server / CenterV2 / VSM / Control Center / Remote View / IP Multicast / GV-AView for Android Smartphone, GV-Eye HD for iPad, GV-Eye for iPhone and iPod Touch, GV-GView for Windows PDA, GV-MSView for Windows Smartphone, GV-SSView for Symbian Smartphone, 3G-enabled phone
  • WebCam Live View - Max. 32 channels transmission (Max. 200 channels accessible)
  • Remote Search - WebCam’s Remote Playback

System Monitoring and Recovery

  • Power Restoration - Power restored after AC power loss
  • Monitoring - Two independent Watchdogs (Hardware Watchdog + Software Watchdog)
  • Recovery - Automatic system rebuild from internal hard disk

Networking

  • Type - TCP/ IP, LAN, WAN, Internet, Modem Dial-up, Modem-to-Modem, ISDN

Environment

  • Operating Temp - 0 °C ~ 45 °C / 32 °F ~ 113 °F
  • Humidity - 0% ~ 80% RH (non-condensing)

Physical

  • Color - Black
  • Dimensions (W x H x D) - 7.90" x 5.90" x 8.90" in
  • Weight - 6.3 kg / 13.8 lb (± 1 kg / 2.2 lb)

Language

  • Type - Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Italian / Japanese / Lithuanian / Norwegian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish

Software License

  • Free License - 32 channels from GV-IP devices
  • Maximum License -32 channels from third-party IP devices
  • The increment for Each License - 1 to 32 third-party IP cameras at an increment of 2
  • Optional Combinations - N/A
  • Dongle Type - Internal or external

Download Technical Datasheet
