** EASY SETUP ** 2 Channel DVR Kit with Remote view via MAC Apple Safari or Windows IE (Includes 2 WCAMKI20B Security Cameras)

Zodiak
SKU: WEC-DVRH800.2CH.WEC480

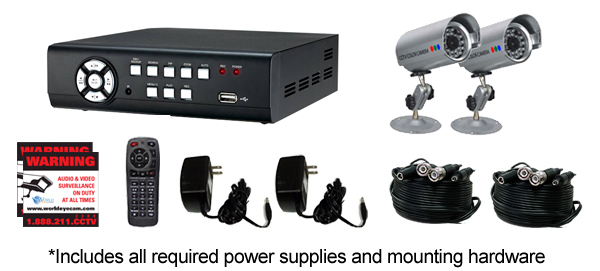

DVR with Remote view via MAC Apple Safari or Windows IE. This 2 Channel Video Package Includes:

  • 2 Channel H.264 Digital Video Recorder with 3G/GPR ( DVR )

  • 1/3" Sony 20 LED Infrared Security Cameras 480 TV Lines 0.8 LUX 12DC

  • (2) 12VDC 1500 mA with 2.1 mm plug Power Adapter

  • 100' Video/Power Cables & Cable Connectors

    • 54% less
    Market price:$1075.76 save $576.76
  • $499.00

OR
This 4 Channel Video Package Includes:

  • (1) WEC-DVRH800-4 4 Channel H.264 Digital Video Recorder with 3G/GPR ( DVR )
  • (2) 1/3" Sony 20 LED Infrared Security Cameras (WCAMKI20B) 480 TV Lines 0.8 LUX 12DC
  • (2) 12VDC 1500 mA with 2.1 mm plug Power Adapter
  • (2) 100' Video/Power Cables & Cable Connectors
  • Monitor optional

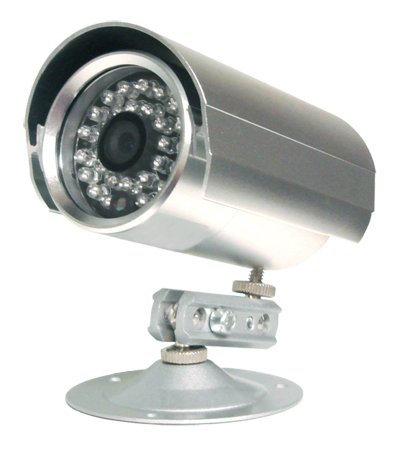

Camera Details:
  • 1/3" Sony CCD
  • 480 TV Lines
  • 0.8 Lux
  • 12V DC Power Supply


Specifications
Image Pick-Up Device1/3" Sony CCD
Horizontal Resolution480 TV Lines
Lens6mm, 8mm
Minimum Illumination0 Lux (IR ON)
S/N RatioMore than 52 dB
Distance60~80
View Angle80 deg.
IR LED28 Units, 850 nm
Average Life20,000 hrs, warranty life: 6,000 hours
Water ResistanceIP 65
Video Output1.0 Vp-p, 75 Ohm
Focus ModePush Manual
Operating Temperature-10c ~ +50c
Supplied PowerDC12V +/- 5% 1,000mA

DVR Details:

Live Demo View Instructions:


1. Click here to view the demo.
2. Log in using the username "admin" and password "123456".
3. After entering, you will be prompted to install ActiveX. Do so and move on to the next step when finished.
4. Click on "Download DVR Remote Desktop *Windows XP/Vista" and select Run if you do not wish to save the Setup file on your computer.
5. When prompted, enter the following info:
DVR Address: 98.189.205.44
DVR Port: 80
Username: admin
Password: 123456
6. Click "OK"

Product Information:

  • H.264 compression ideal for saving HDD space
  • Central Management System (CMS) Supports up to 16 DVRs
  • Up to 120FPS @ 360x240(CIF) Recording
  • 3G/GPRS Mobile Phone Monitoring
  • 4-CH Video Input
  • Graphic user interface with USB mouse control
  • New! iPhone Compatible

[Click here for PDF Product Manual]

CONNECTOR
Video SystemNTSC
Video Input4-CH BNC
LoopN/A
Video Output1-CH BNC
SPOT Output1-CH Bnc
VGA Output1024x768 (Optional)
S-Video OutputN/A
Audio Input1-CH RCA
Audio Output1-CH RCA
Audio BackupYES
Sensor4 Inputs/1 Output
RS-232N/A
RS-485Pan/Tilt/Zoom Camera
USB Port1
MouseUSB Mouse
IR Remote ControllerYES
STORAGE
HDD SupportSATA HDD x 1 (Max. 1TB)
CD WriterN/A
DVD WriterN/A
OSD
Display Divison1,4
GUIYES
Title14 Characters
Digital Zoom2X
Recording
Video CompressionH.264
Resolution720x480, 720x240, 360x240
Frame Rate30, 60, 120
QualiyHighest, High, Normal, Low, Lowest
Record ModeManual, Schedule, Event(motion detection/sensor)
Pre-Alarm Recording16MB (10 sec)
Post-Alarm Recording1-999 sec
Motion Detection16X12 (sensitivity 1~15)
Watermark ProofN/A
PLAYBACK
Search ModeTime, Event
Playback Speedfast forward/backward 2X/4X/8X/16X/32X/64X
slow forward/backward 1/2X,1/4X,1/8X,1/16X
play/pause
Backup ModeUSB Flash Driver/Network
NETWORK
Network CompressionH.264
SoftwareNO
Internet ExplorerYES
FirefoxNO
Network Users4
Remote NotificationE-mail Message
ServiceTCP/IP, SMTP, DHCP, DDNS, PPPoE
OTHER
Daylight SavingYES
Password5 users including 1 administrator
user authority selectable
Key LockYES
Keyboard ControllerN/A
Firmware UpdateUSB Device
Dimension188mm (W) x 54mm (H) x 209mm (D)
Power SourceDC12V
FeaturesCentral Management System (CMS) supports up to 16 DVRs
3G/GPRS mobile phone monitoring

    • SKU
      WEC-DVRH800.2CH.WEC480
    • Weight
      18 lbs
  • Manufacturer
    Zodiak
  • Hard Drive
    500GB, 1000GB
  • Cables
    2x100 feet, 2x25 feet, 2x50 feet, 2x150 feet, Bulk 500 ft. spool, Bulk 1000 ft. spool
  • Optional Monitor
    None Needed, 19 inch LCD Security Monitor
