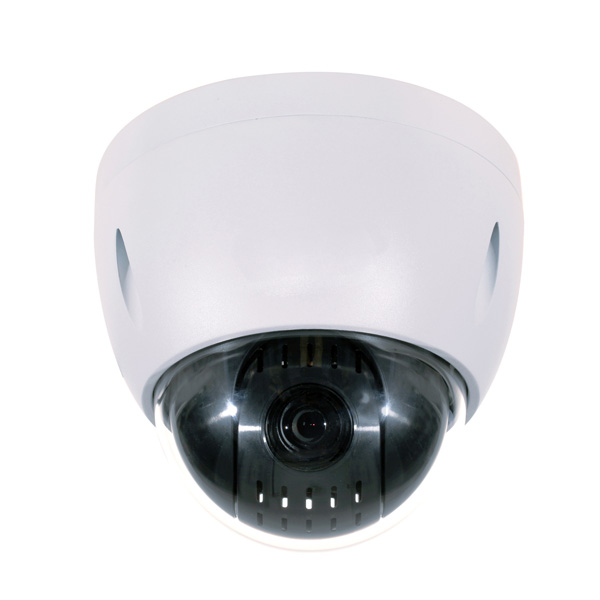

12X Optical Zoom Mini IP PTZ Camera, Indoor
SKU: IMAX-IP12X-PTZ-IThis 12x Optical Zoom Mini PTZ Surveillance Camera records 30 frames per second with a 1080p resolution. It will record color video in lighting as low as .05 and black and white video in as low as .0005 lux lighting.
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
Product Features
- Powerful 12x optical zoom
- Supports Triple-stream encoding
- Max 25/30fps@1080P (1920x1080) & 50/60fps@720P resolution
- DWDR(WDR), Day/Night(ICR), DNR (2D&3D), Auto iris, Auto focus, AWB, AGC, BLC
- Max 300°/s pan speed, 360° endless pan rotation
- Up to 80 presets, 5 auto scan, 8 tour, 5 pattern
- Built-in 2/1 alarm in/out
- Support intelligent 3D positioning with DH-SD protocol
- IP66, IK10, PoE+
Specifications | |
Model | IMAX-IP12X-PTZ-I |
Image Sensor | 1/2.8" Exmor CMOS |
Effective Pixels | 1944(H) x 1092(V), 2 Megapixels |
Scanning System | Progressive |
Electronic Shutter Speed | 1/3~1/30000 |
Min. Illumination | Color: 0.05Lux/F1.6, B/W: 0.005Lux/F1.6 |
S/N Ratio | More than 55dB |
Camera Features | |
Day/Night | Auto(ICR) / Color / B/W |
Backlight Compensation | BLC / HLC / DWDR |
White Balance | Auto, ATW, Indoor, Outdoor, Manual |
Gain Control | Auto/Manual |
Noise Reduction | 2D/3D |
Privacy Masking | Up to 24 areas |
Digital Zoom | 16x |
Lens | |
Focal Length | 5.1mm~61.2mm (12x Optical zoom) |
Max. Apeture | F1.6 ~ F3.0 |
Focus Control | Auto/Manual |
Angle of View | Horizontal: 51.3° ~ 4.64° |
Close Focus Distance | 100mm ~ 1000mm |
PTZ | |
Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -2° ~ 90°, auto flip 180° |
Manual Control Speed | Pan: 0.1° ~300° /s; Tilt: 0.1° ~120° /s |
Preset Speed | Pan: 300° /s; Tilt: 200° /s |
Preset | 80(DH-SD) |
PTZ Mode | 5 Pattern, 8 Tour, Auto Pan, Auto Scan |
Speed Setup | Human-oriented focal length/ speed adaptation |
Power Up Action | Auto restore to previous PTZ and lens status after power failure |
Idle Motion | Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period |
Video | |
Compression | H.264 / MJPEG |
Resolution | 1080P(1920×1080) / 720P(1280×720) / D1(704×576/704×480) / CIF (352×288/352×240) |
Frame Rate Main Stream | 1080P (1 ~ 25/30fps) / 720P(1 ~ 50/60fps) |
Frame Rate Sub Stream | D1/CIF(1 ~ 25/30fps) |
Frame Rate Sub Stream 2 | 720P/D1/CIF(1 ~ 25/30fps) |
Bit Rate | H.264: 448K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps |
Audio | |
Compression | G.711a / G.711u(32kbps)/ PCM(128kbps) |
Interface | 1/1 channel In/Out |
Network | |
Ethernet | RJ-45 (10/100Base-T) |
Protocol | IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour |
Compatibility | ONVIF, PSIA, CGI |
Max. User Access | 20 users |
Smart Phone | iPhone, iPad, Android, Windows Phone |
Auxiliary Interface | |
Memory Slot | Micro SD, Max 64GB |
RS485 | N/A |
Alarm | 2/1 channel In/Out |
General | |
Power Supply | AC 24V/1.5A (±10%), PoE Plus (802.3at) |
Power Consumption | 12W |
Working Environment | -4°F ~ +140°F (-20°C ~ +60°C), Less than 90%RH |
Ingress Protection | IP66 |
Vandal Resistance | N/A |
Dimensions | Φ6.69"(170mm) x 6.10" (155mm) |
Weight | 3.97 lbs |
- ManufactureriMaxCamPro
- Camera TypePTZ
- Camera SignalIP
- Camera Resolution1080p
- Lens Size12X
- Shipping Lead TimeShips Same Day
- Remote Login SupportNo Login Support Needed, FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
